IC Audio AMP 480 - Output Ports

POWER INPUT:350WATTSPOWER INPUT:350WATTS
POWER INPUT:350WATTSPOWER INPUT:350WATTS
REMOTE START
LINE
MIC
SENS
OUTPUT
UNBALANCED

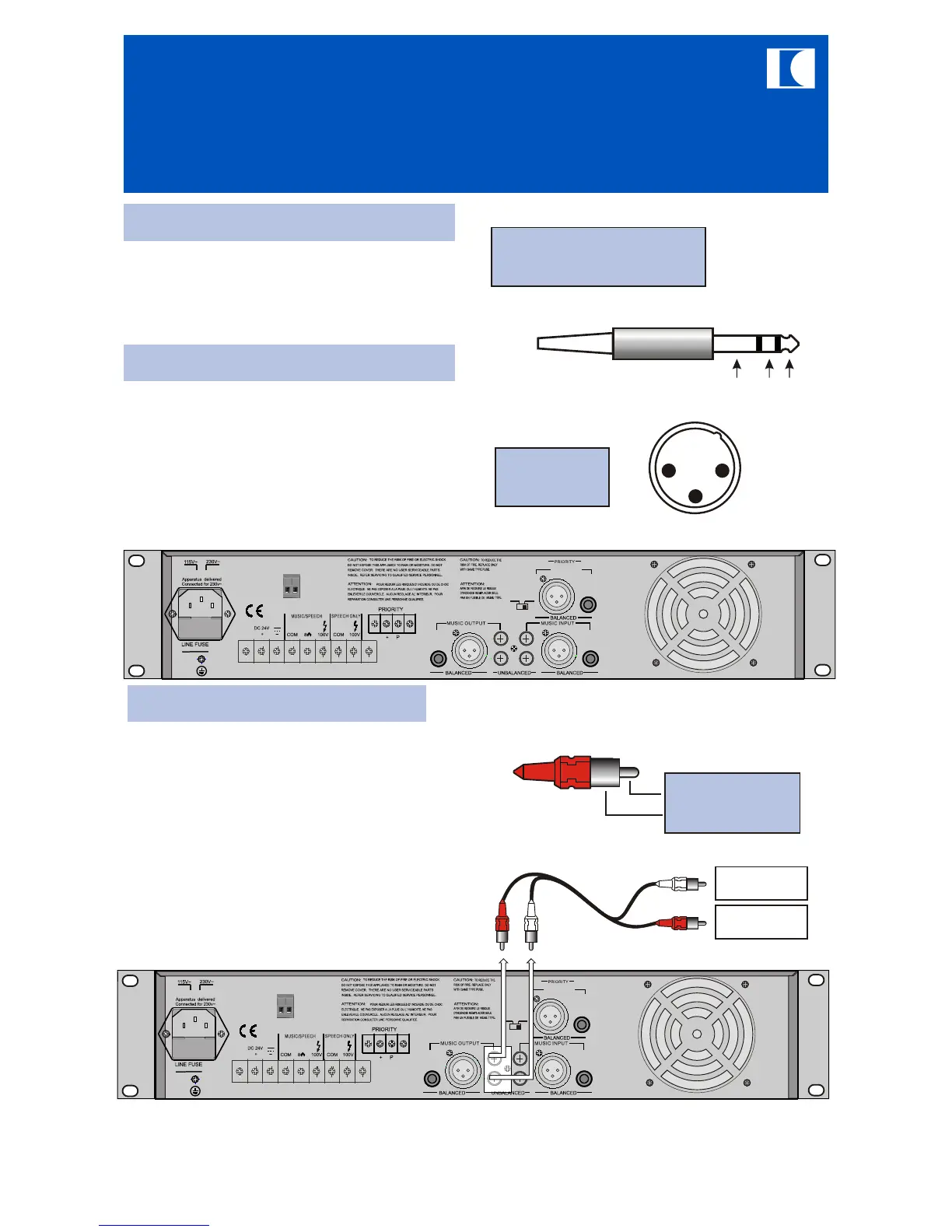

By using the output you have the possibility to
connect a tape deck or further amplifiers.
To connect an asymmetrical power
amplifier you can use the RCA socket
output at best. The output is conducted
double mono to connect your power
amplifier without any additional special
cable.
2
1
3
XLR-OUTPUT
1: SCREEN
2: HOT
3: COLD
BALANCED
To connect an additional amplifier use the
symmetric output provided that your end
device has a symmetric input, of course. To do
so you can choose either the XLR-socket or
the ¼” stereo jack socket.
Tip: HOT (Signal)
Ring: COLD (Signal)
Ground: GND
SCREEN (GND)
HOT
GROUND RING TIP
6.35 mm Stereo
ic audio
Device Functions
- Rear side -
RCA Jack Plug
1/4” Jack Plug
Power
Amplifier
Power
Amplifier
asymmetr.
Input
(
)
17
EN
AMP 120/240(480)
AMP 120/240(480)
POWER INPUT:350WATTSPOWER INPUT:350WATTS
POWER INPUT:350WATTSPOWER INPUT:350WATTS
REMOTE START
LINE
MIC
SENS
MIC/LINE
MIC/LINE
