4. Front Panel

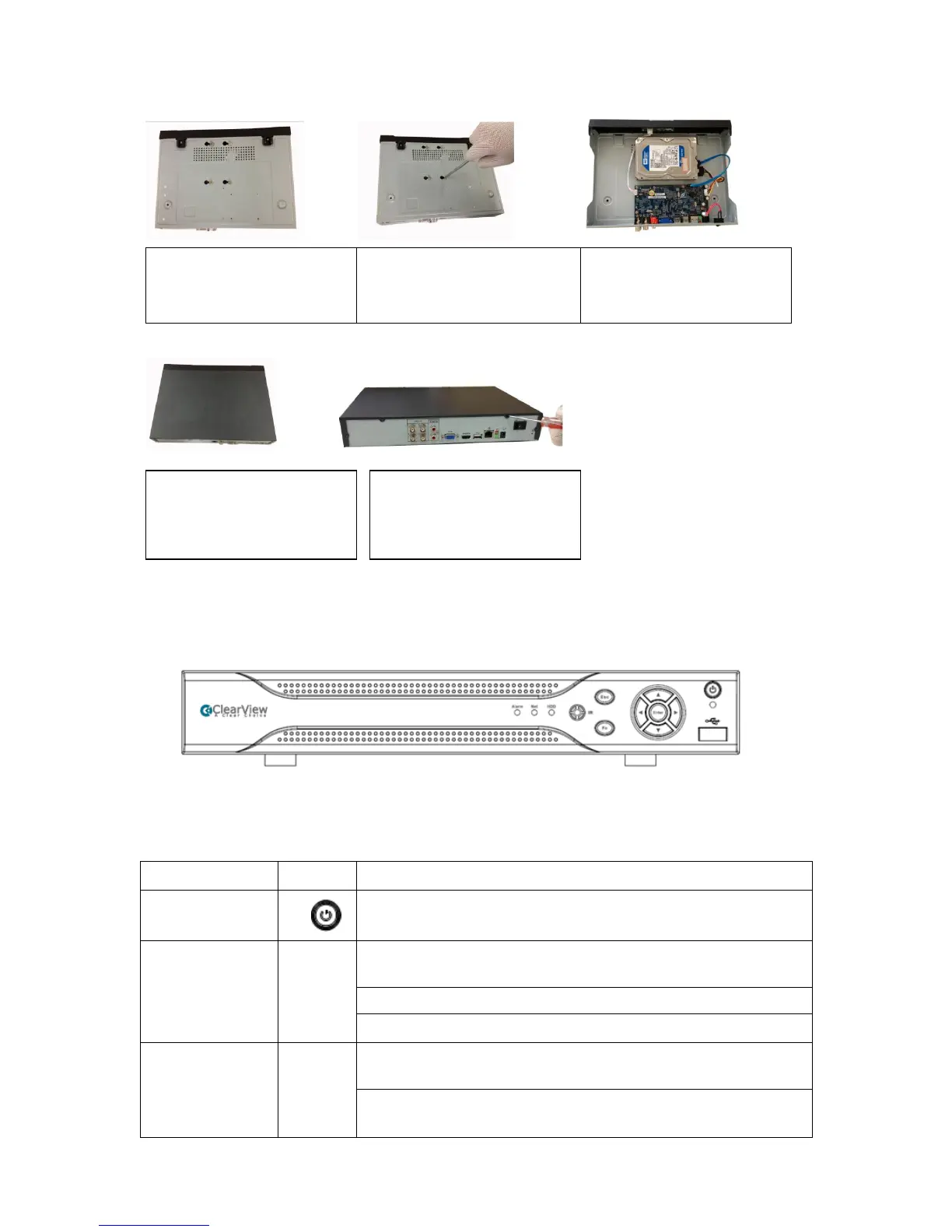

The front panel is shown as in Figure 1.
Figure 1
Please refer to the following sheet for front panel button information.
Name
Icon
Function
Power button
Power button, press this button for three seconds to boot up
or shut down DVR.
Up/
Down
、
Activate current control, modify setup, and then move up
and down.
Increase/decrease numeral.
Assistant function such as PTZ menu.
Left/
Right
 
Shift current activated control,
When playback, click these buttons to control playback bar.
4. Turn the device upside down
and then turn the screws in
firmly.
in the chassis.
5. Fix the HDD firmly.
6. Connect the HDD cable and
power cable.
7. Put the cover in accordance
with the clip and then place the
upper cover back.
8. Secure the screws in the
rear panel and the side panel.
