iCatch 4CH - 8 Ch Rear Panel Connectors

Quick Start Guide P.8

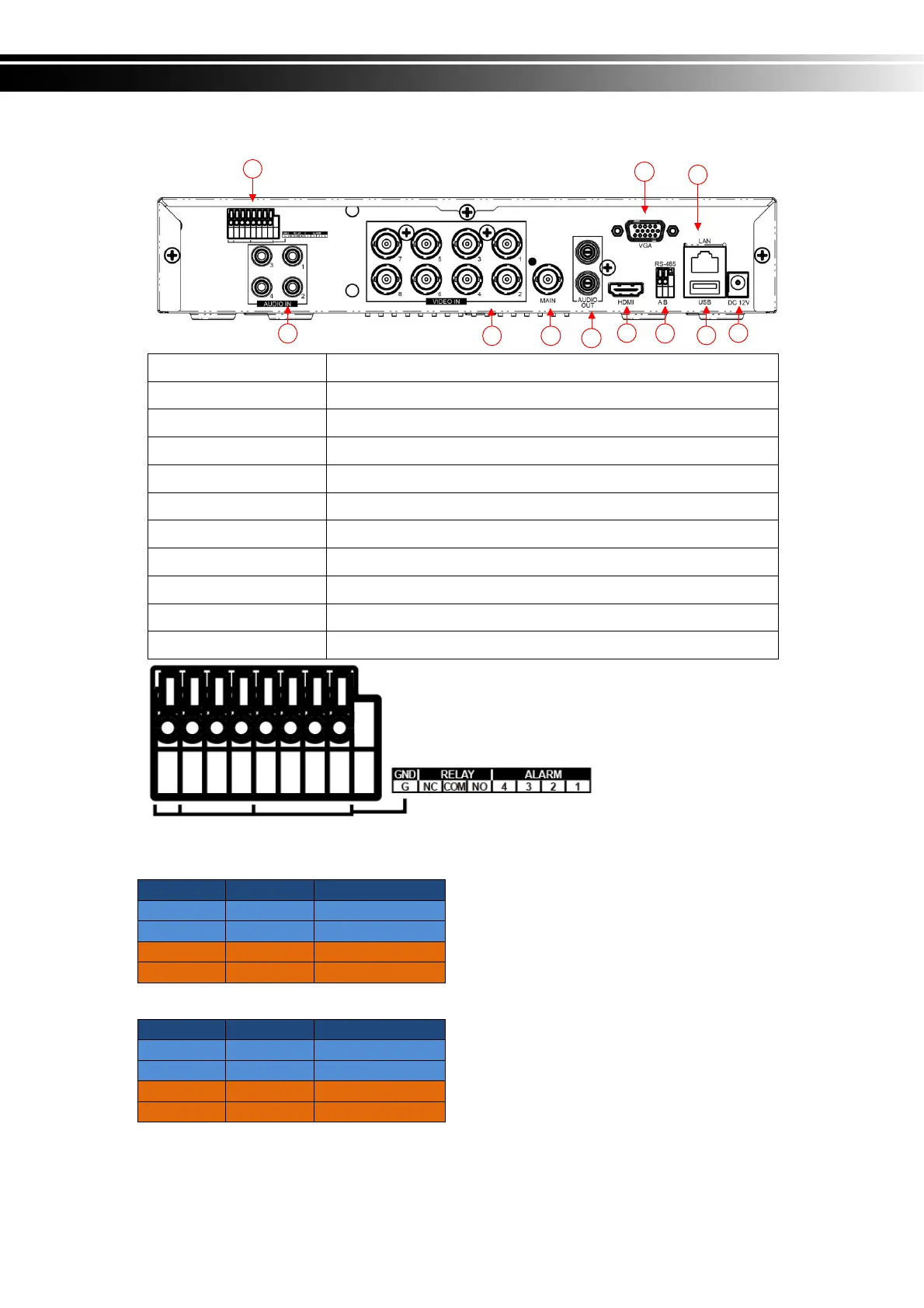

8CH REAR PANEL CONNECTORS
11
10
9
1
2
4
5
6
7
8
3
1. AUDIO IN RCA input port for audio signal.
2. AUDIO OUT RCA output port for audio signal.
3. VIDEO IN BNC input ports for cameras, 8 in total.
4. MAIN BNC Output
5. HDMI HDMI port.
6. RS-485 RS-485 port.
7. USB Port for USB mouse device
8. DC 12V Socket for a DC 12V input.
9. LAN Network port.
10. VGA VGA port.
11. Ext.I/O Extend I/O
*Example
AHD series model
Odd CH Even CH Result
AHD AHD
OK
960H / D1 960H / D1
OK
AHD 960H / D1
not serviceable
960H / D1 AHD
not serviceable
TVI series model
Odd CH Even CH Result
TVI TVI
OK
960H / D1 960H / D1
OK
TVI 960H / D1
not serviceable
960H / D1 TVI
not serviceable
