AC & DC POWER FUSE RATINGS
To access the fuses for both the AC and DC supplies, open the front access panel and
located inside is a power module and board panel assembly. The power module has a
5 amp slow blow if your game is 110V option or 2.5 amp slow blow if your game is

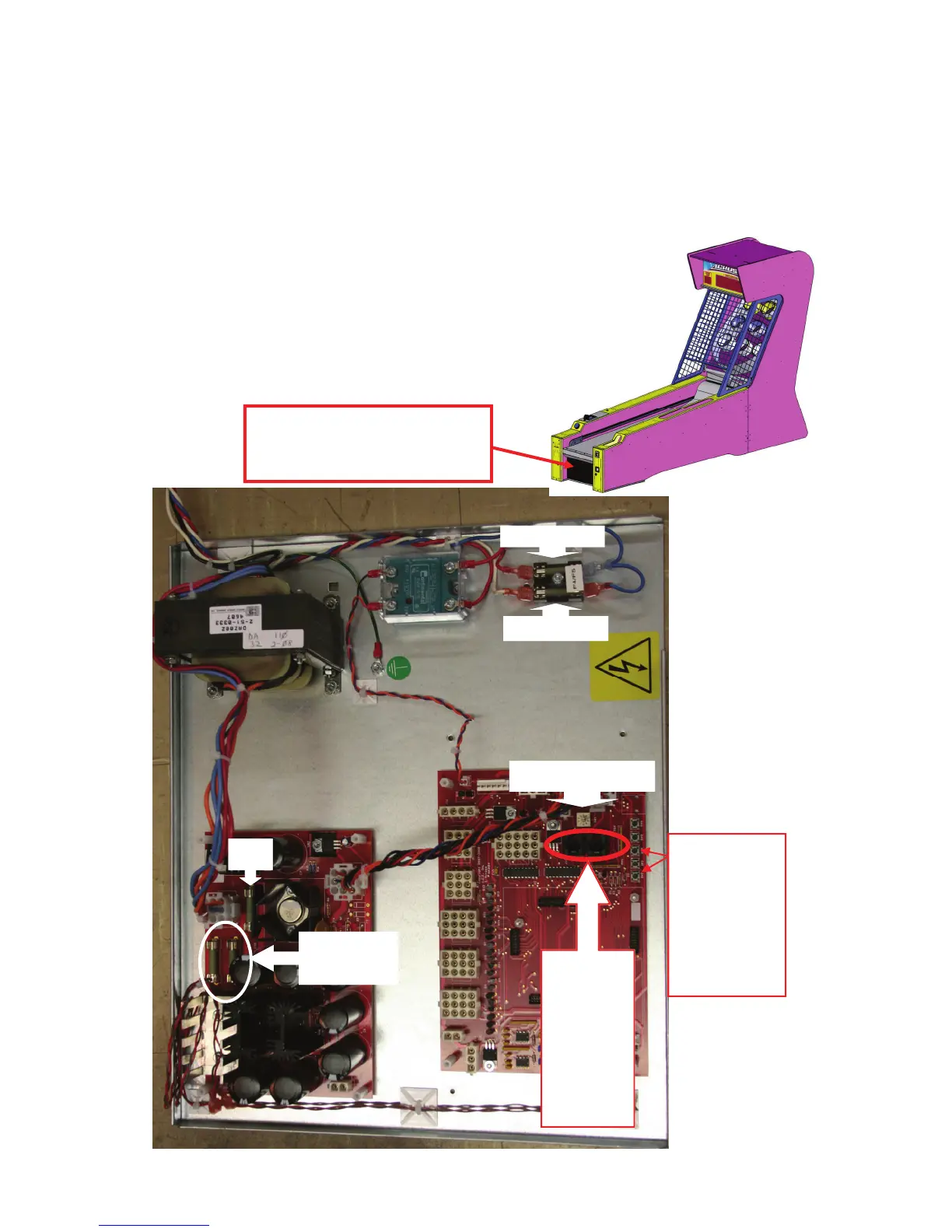

220V option. Pictured below is the location and values of the remaining fuses for your
game.
6A slow blow
1A slow blow
Link ID number dial
4 SB
(2) 8amp
Slow blow
Unlock and open this panel to access
AC and DC fuses and board panel
assembly.
Connect
phone cords
to either of
these two
connectors.
These can
be used for
linking or
marquee
connections.
Programming
Buttons:
SW2 - Program
SW3 - Select
SW4 - Advance
SW5 - N/A
SW6 - N/A
