15

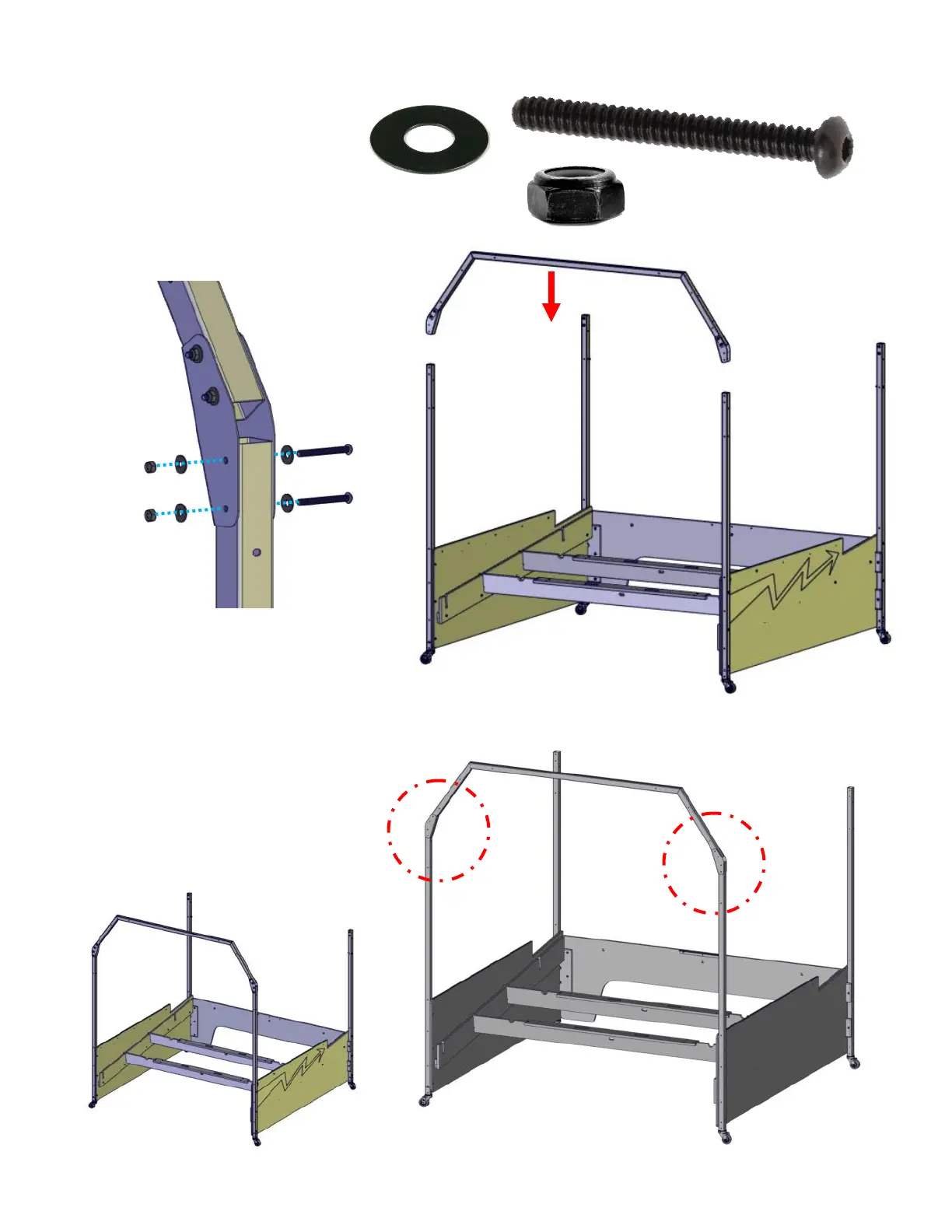

STEP 8:
Slide the upper support onto the
brackets at the front of the game.
Secure the support using two
AA6125 Allen bolts and AA6212
washers from the backside and
secure them with AA6966 nylon
nuts at the front.
TIGHTEN ALL HARDWARE
ONLY WHEN ALL BOLTS ARE
INSTALLED!
AA6966 1/4-20 black
nylon nut (QTY 4)
AA6125 1/4-20 X 2-1/2 black Allen (QTY 4)
AA6212 1/4 X 3/4 black
washer (QTY 8)
Completed
To Next Page
