Icegame DODGEBALL - Page 38

38

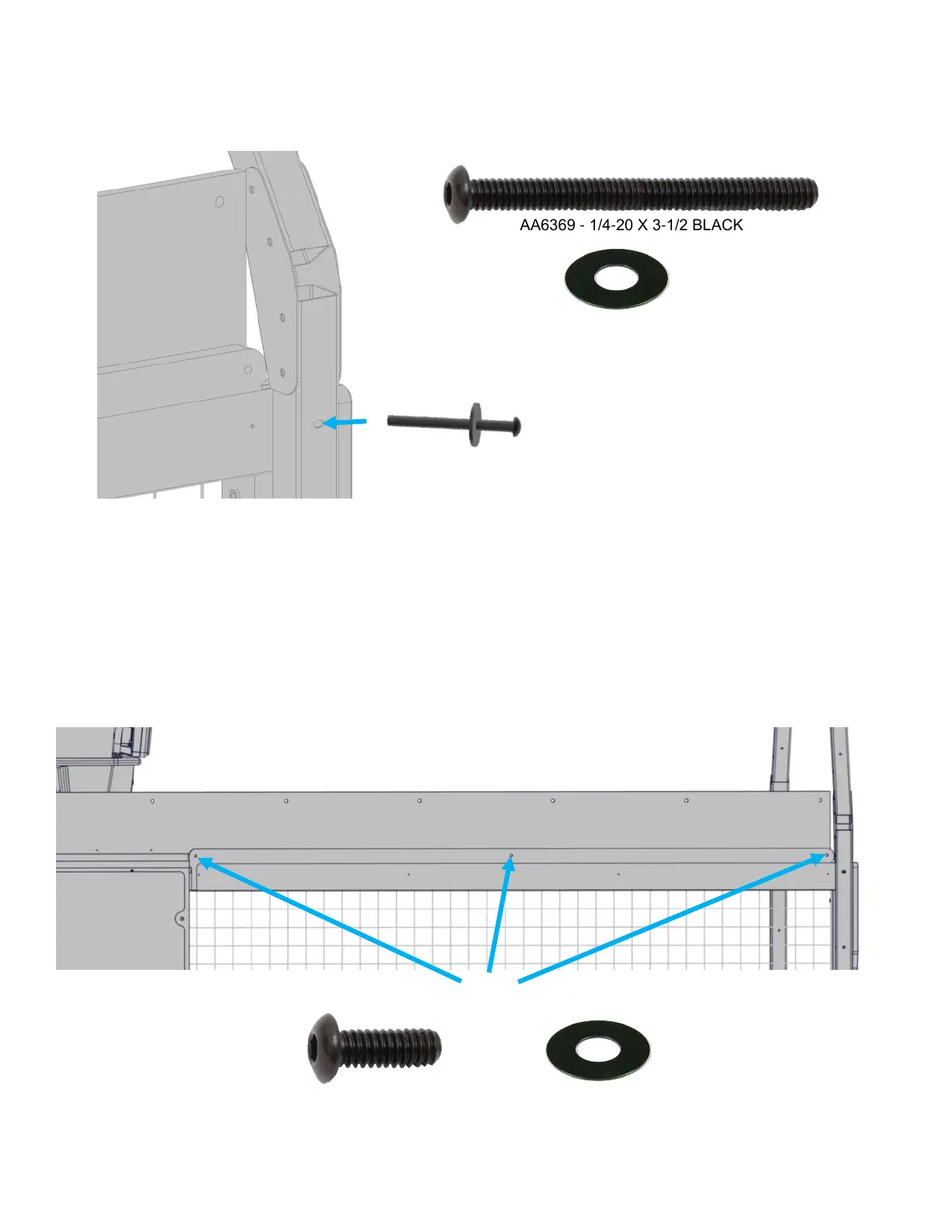

STEP 33:
Secure the cage to the front cabinet legs using one AA6369 Black Allen Bolt and AA6212 black
washer.
OUTSIDE
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6369 - 1/4-20 X 3-1/2 BLACK
STEP 34:DO NOT TIGHTEN HARDWARE
Secure the cage to 1Q using three AA6281 Black Allen Bolts and AA6212 black washers.
AA6281 1/4-20 X
1-1/2 black Allen
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
X’s 1
X’s 3
1Q
2G
