AA6212 1/4 X 3/4
black washer
X’s 2
AA6125 1/4-20 X 2-1/2 black
STEP 50:

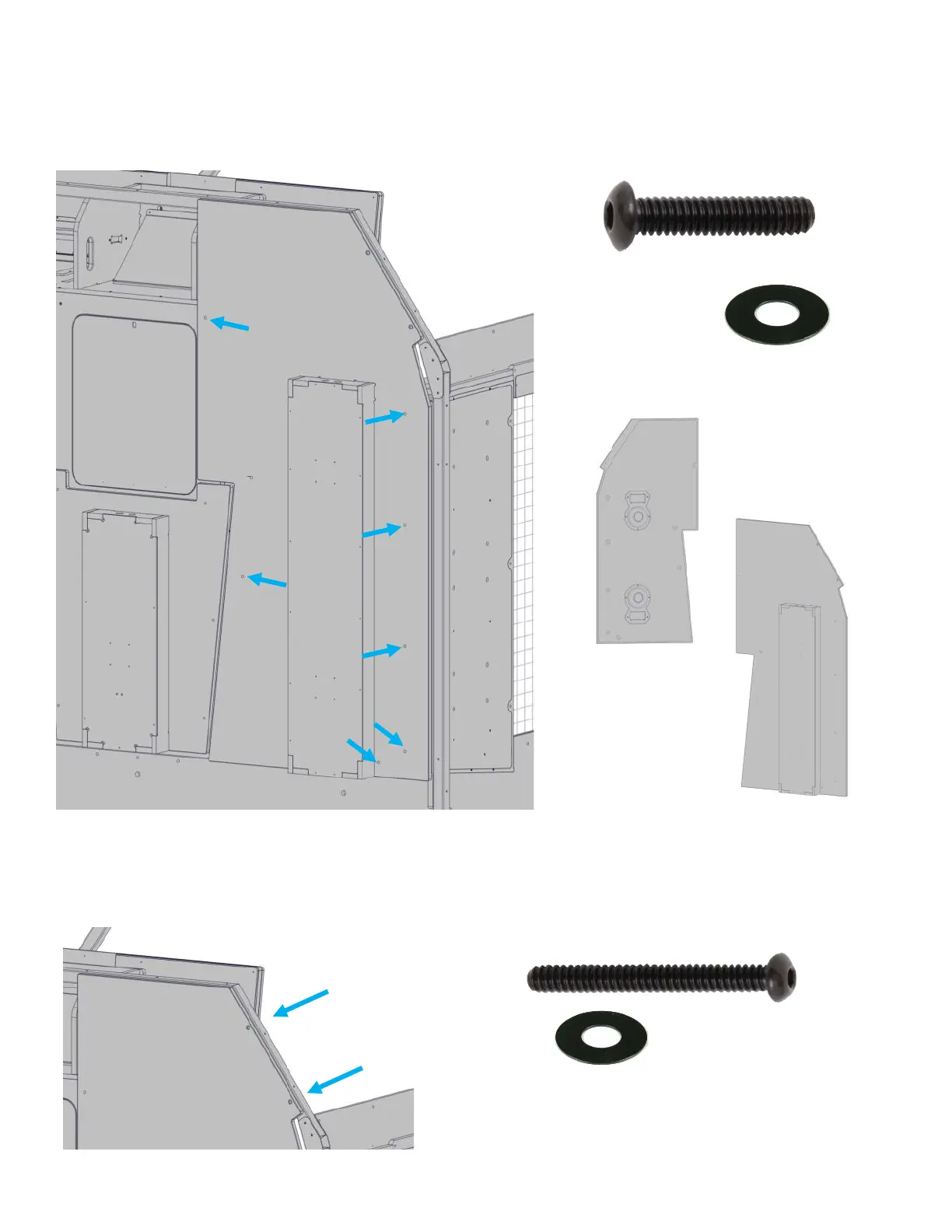

Install the 1A button wall to the back of the game using seven AA6584 black Allen bolts and AA6212
black washers. You might have to shift the upper archway.
Back view
Front view
STEP 51:
From inside the game, secure the left back panel to the upper arch using two AA6125 black Allen
bolts and AA6212 black washers.
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
AA6584 1/4-20 X 2 (BLACK)
X’s 7
1A
1A
1A
