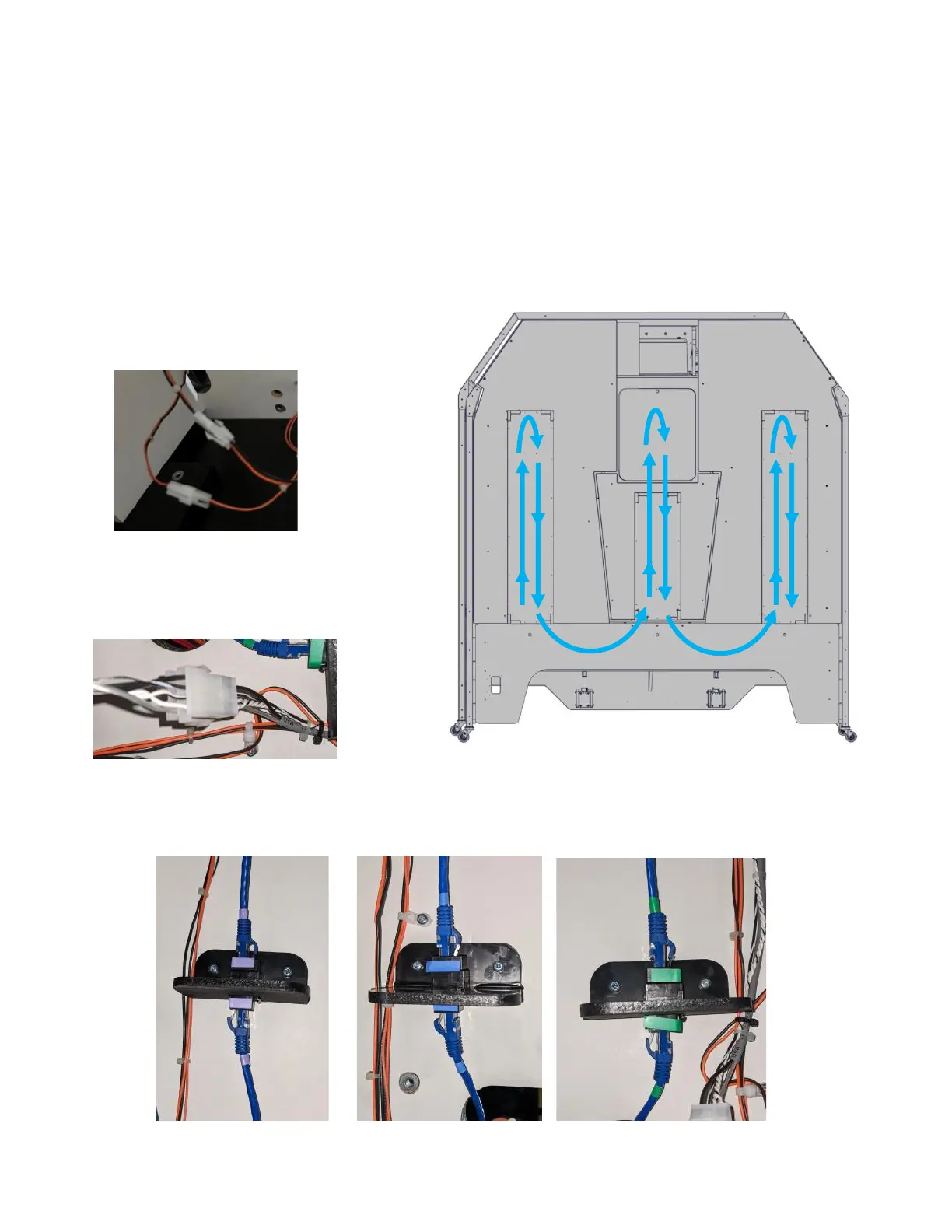

STEP 53: NETWORK CABLE FLOW
The Network cable run starts from front of game to first coupler at the back. The other side of the
coupler goes up the left score tower and back down into another coupler. Each tower has two
network cables. Each coupler and cable is colored coded.
Either one can be used for input or output.
DO NOT PLUG BOTH CABLES FROM A TOWER INTO THE SAME COUPLER!
Two pin DC power cables are also at each
tower connection
Connect the display harness coming
from the center tower.
Direction of network.
Not physical connections.
Any cable with the same color can be plugged into same color coupler.
To Next Page
