56
AA0655 - #8 X 3/4 Square pan head screw Use the 6 holes with pilot holes that match the metal plate.
X’s 6
STEP 57:

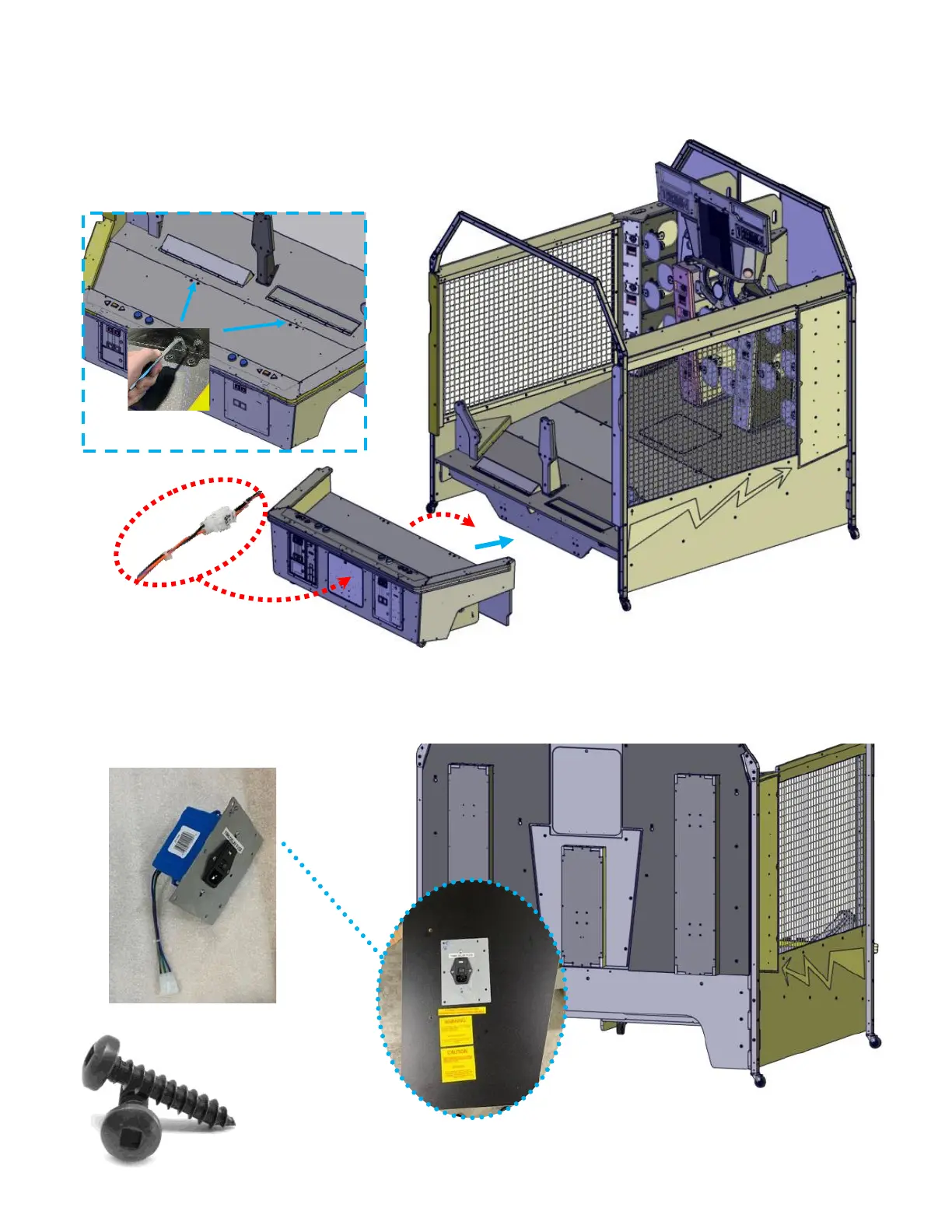

Install the power inlet module with six AA0655 screws. Also apply DECALS from parts box
(“CAUTION”, “WARNING”, “SUITABLE”) .
STEP 56:
Slide 2F front podium to the cabinet assembly. Unlock the center door and plug in ball gate harness.
Latch the front cabinet to the back cabinet using the provided latch tool.
To Next Page
