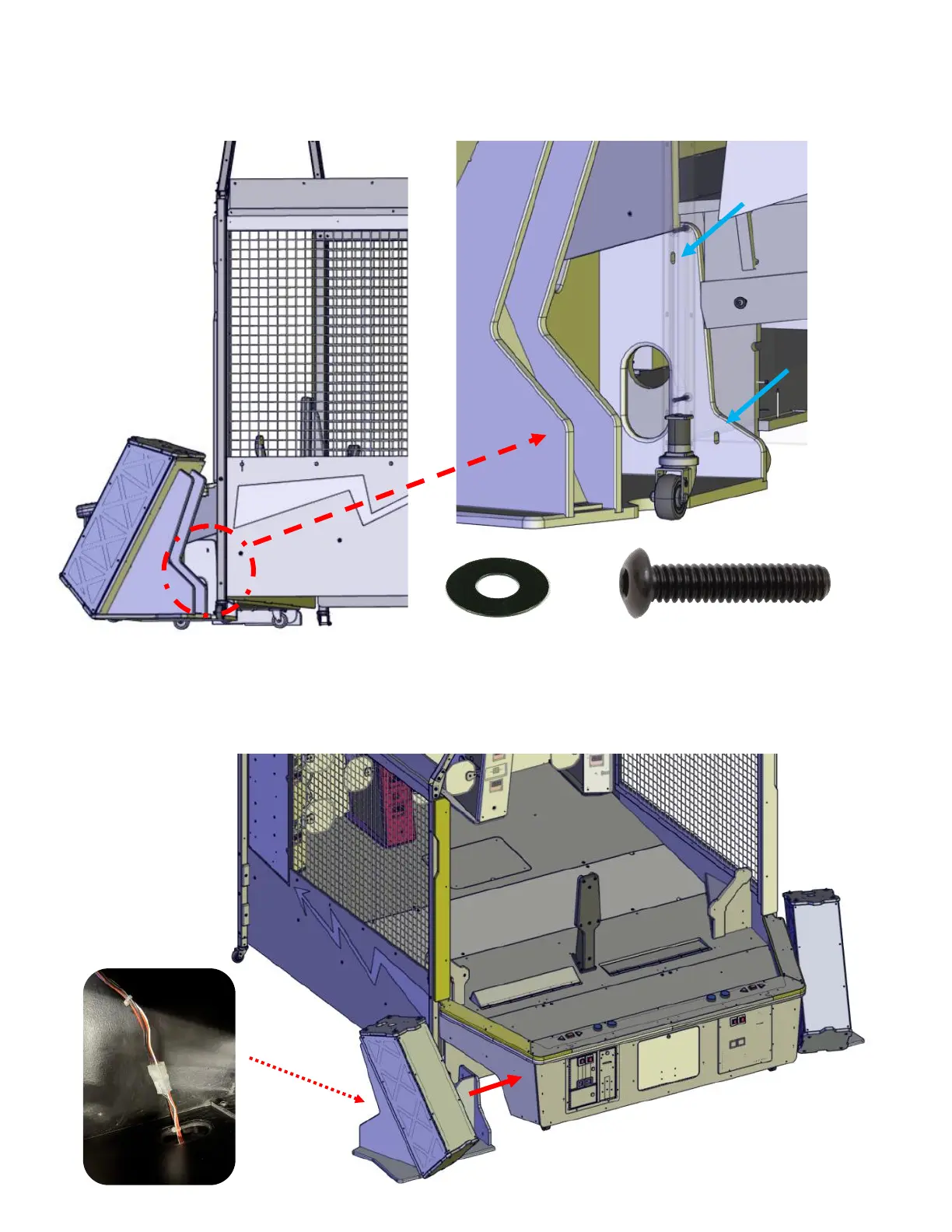

STEP 60:
Secure the arch base using three AA6584 black Allen bolts and AA6212 black washers.
AA6212 1/4 X 3/4 FLAT
AA6584 1/4-20 X 2 (BLACK)
X’s 2
STEP 61:
Lift the front cabinet again and slide the 3C left arch base into position and plug in the harness. It
may be necessary to slightly lift the podium to allow proper alignment with the tower.
