Icegame DODGEBALL - Page 63

63

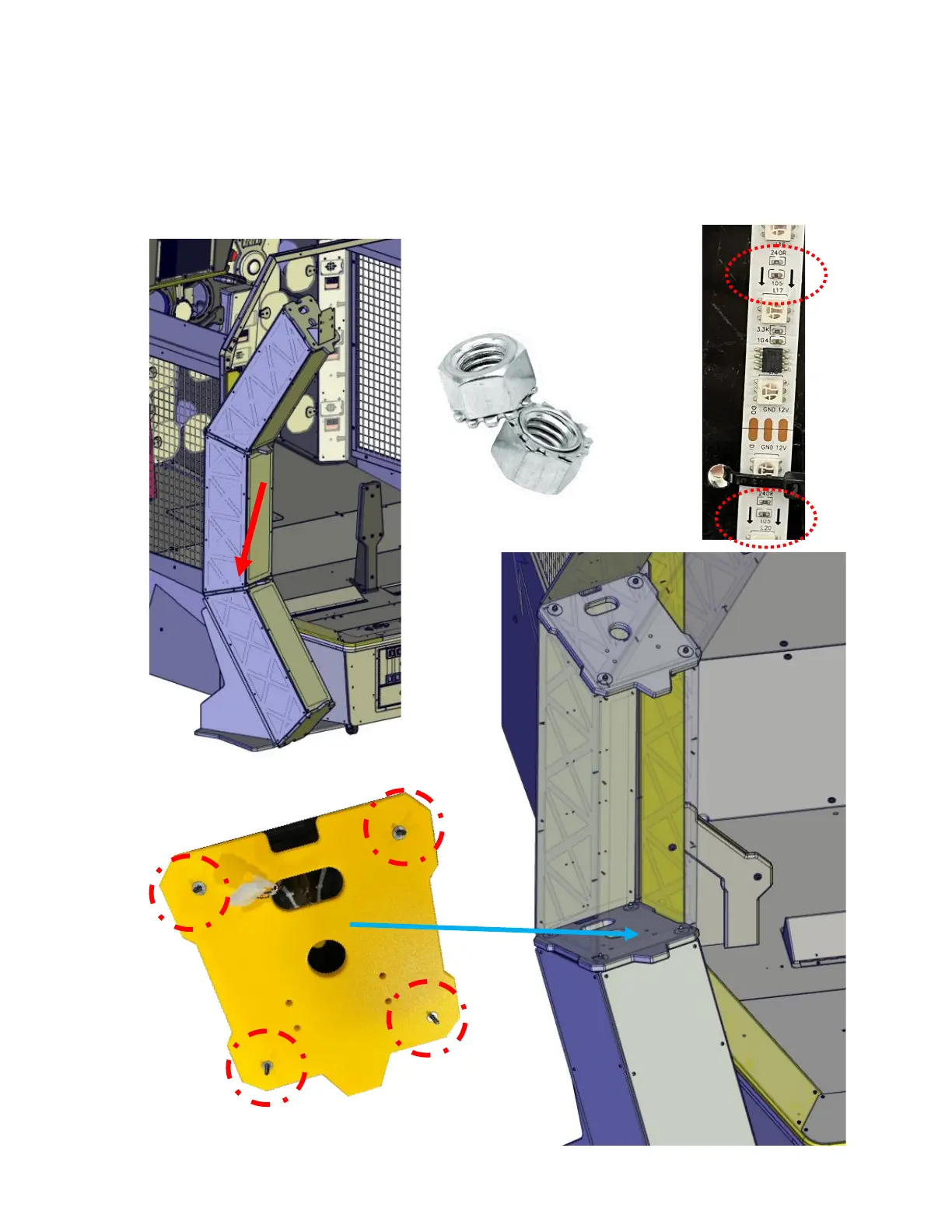

STEP 64:
Look inside at the LED”s in the upper archway. The LED’s have arrows. For the right archway, the
arrows go down. The left archway has the LED’s arrow facing up. Lift the upper tower assemblies
onto the lower tower assembly aligning the exposed studs.
Secure the upper tower to the lower using four PC60614 Kept Nuts.
PC60614 1/4-20
Kept Nut
X’s 4
