70
AA6630 1/4-20 x 4 black Allen
AA6212 1/4 X 3/4
black washer

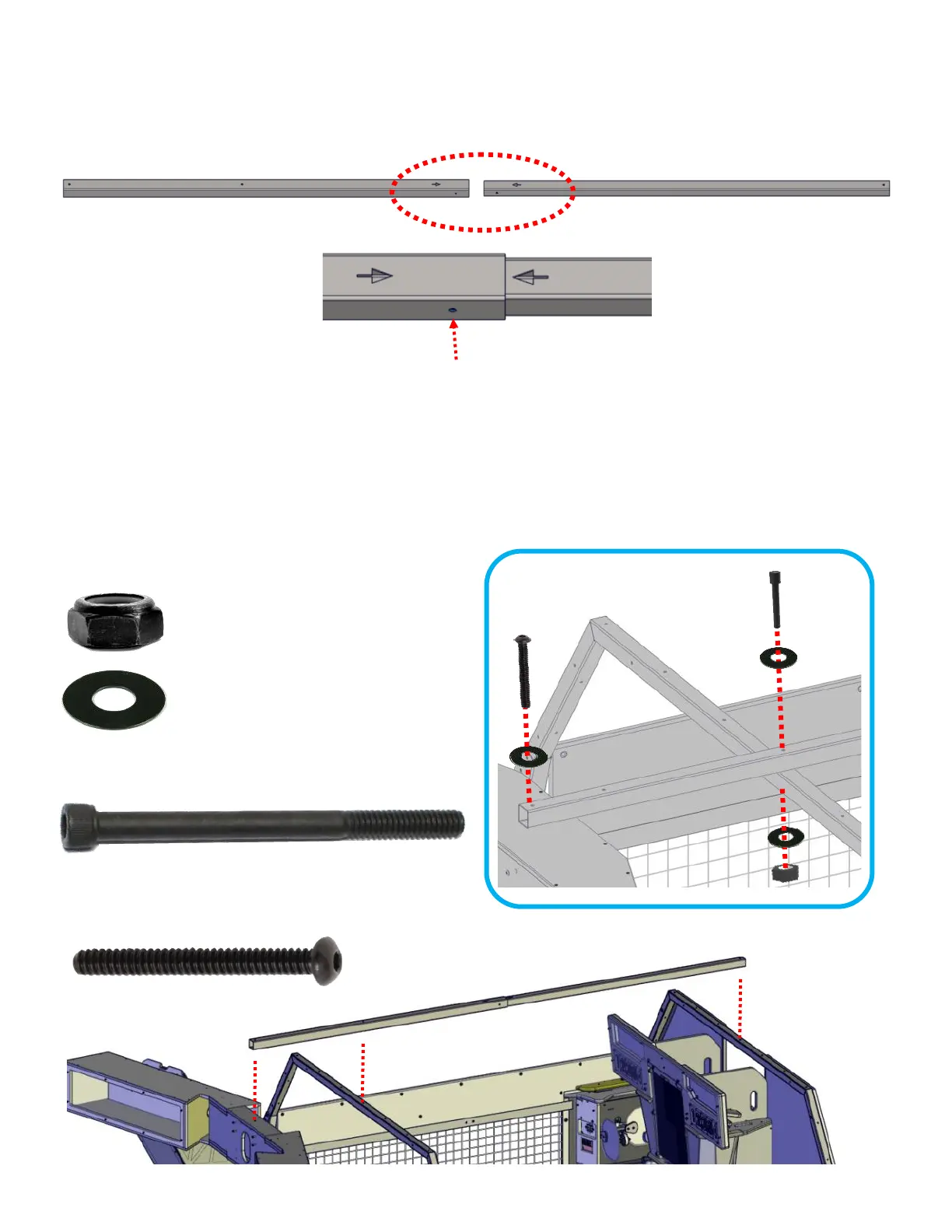

STEP 73:
Slide 2I and 2J together aligning the two arrows to face each other.
AA6630
AA6125
X’s 2
X’s 1
STEP 74:
Attach 2I and 2J assembly using two AA6630 black bolts and AA6212 black washers from the top
and AA6212 black washer and AA6966 nylock nut at the bottom on the arches at both ends.
Use one AA6125 bolt and AA6212 washer to attach the2I and 2J assembly support to the marquee.
2I
2J
AA6125 1/4-20 X 2-1/2 black
AA6966 1/4-20
nylock black nut
To Next Page
