74

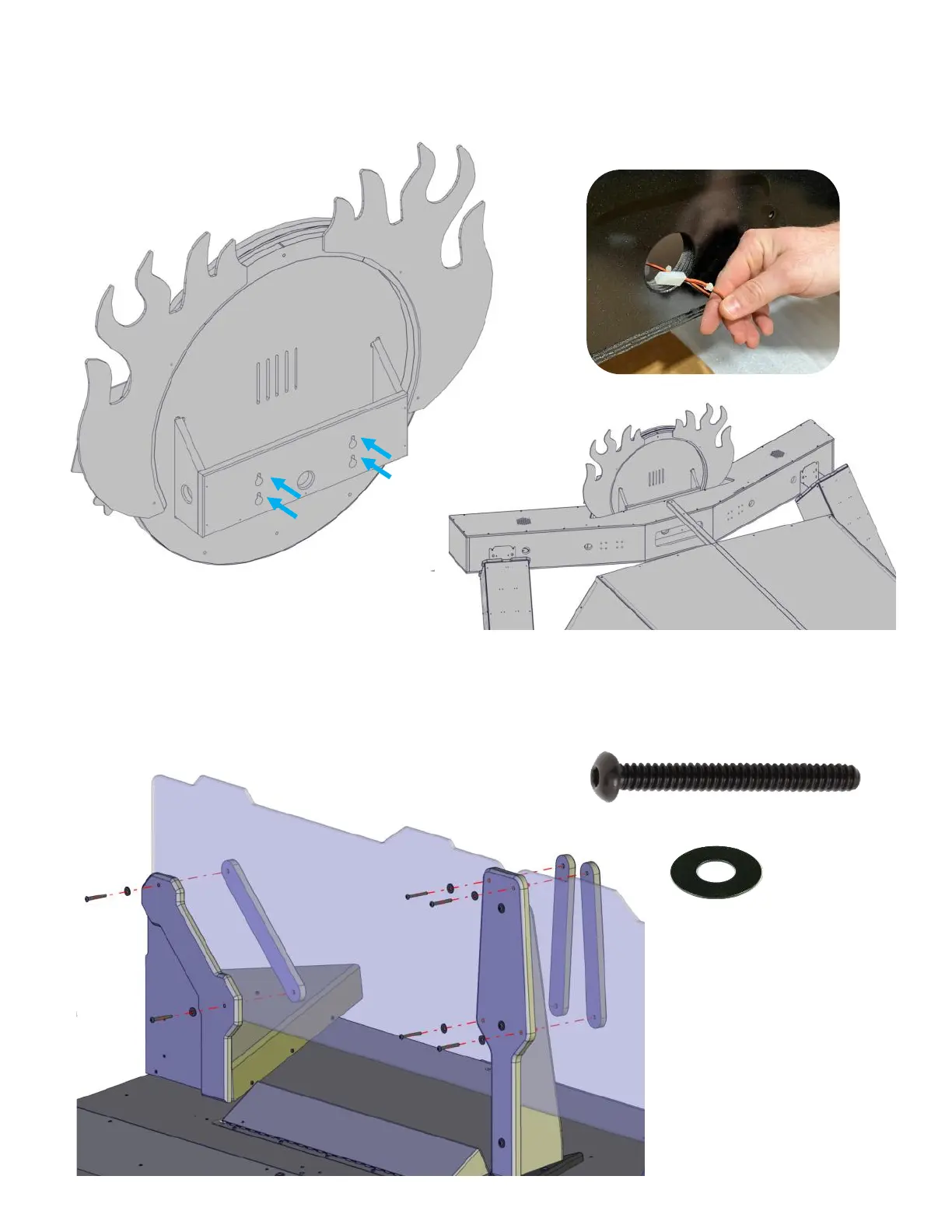

STEP 80:
Lift the marquee sign up onto the marquee assembly aligning the holes and sliding it down onto the
bolts. Tighten using small Allen wrench.
AA6212 1/4 X 3/4 FLAT
WASHER BLACK
X’s 8
STEP 81:
Attach two 2Q ball deflectors using four AA6125 black Allen bolts and AA6212 black washers at
the front, 2R mounting plate at the back.
2Q
2Q
2R
2R
2R
AA6125 1/4-20 X 2-1/2 black
