Icegame DODGEBALL - Blocker Arm & Motor Assembly Removal

88
GF2008DBX
GF2008D
WP1058
AA6460
GF1194
AA6831

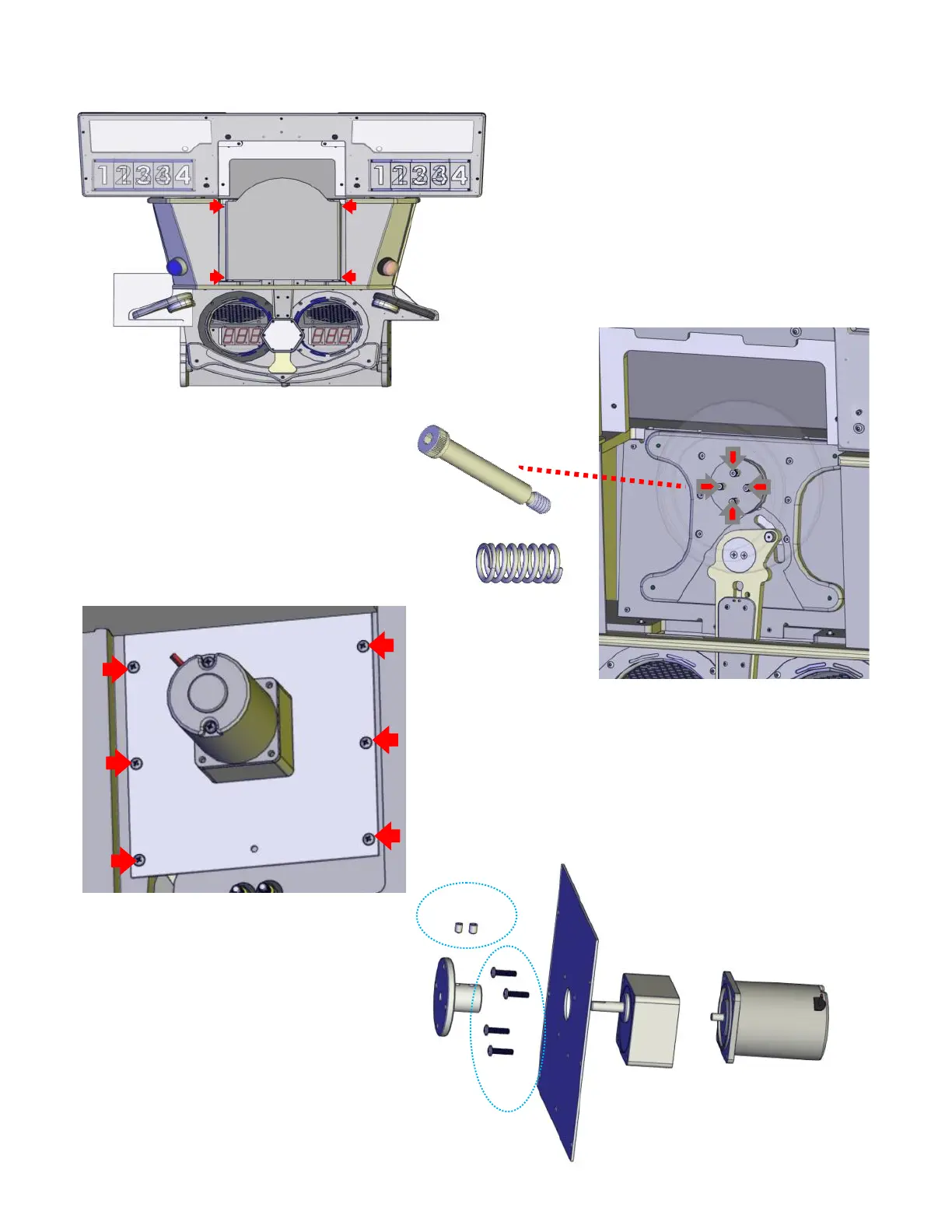

Removing the DB3102X Blocker arm & Motor assembly
AA6967
BL1086
2) Remove the four AA6967 shoulder
bolts and BL1086 springs.
1) Remove DB3068X leaderboard display first
then remove the four AA6177 screws holding
the DB3154 Motor guard plate to the cabinet.
3) Remove the six AA6831 Phillip screws holding
the Motor/gearbox assembly.
