Icegame DODGEBALL - Page 9

9
AA6125 1/4-20 X 2-1/2 Black
AA6212 1/4 X 3/4
black washer
X’s 6
LEGS mount ON TOP!
Two slots are
created at the back.

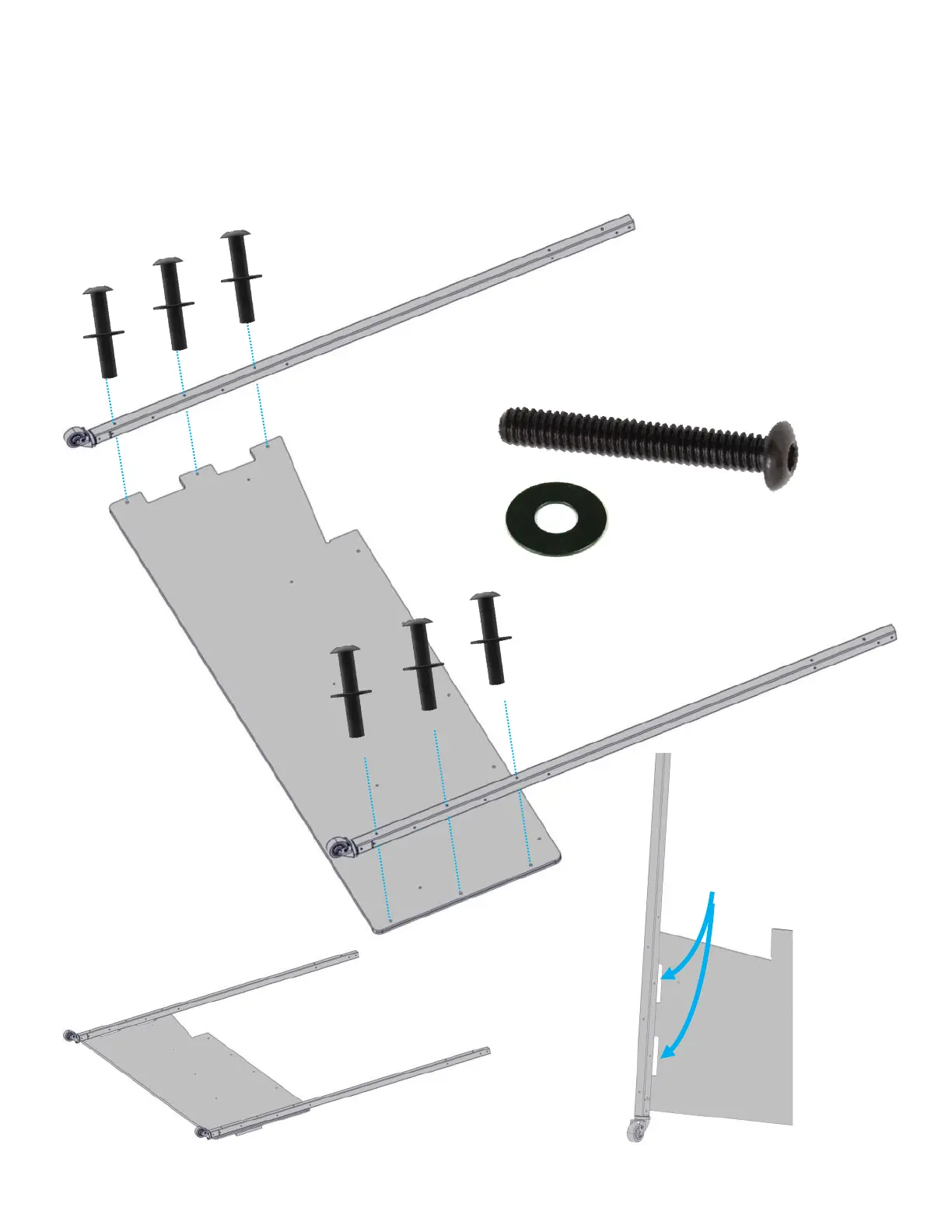

STEP 1:
Attach two “1P” leg to the left wall “1G” panel, graphics facing up, using three AA6125 Allen bolts
and three AA6212 black flat washers on each “1P”leg. The legs should be on top of the outside of
the panel.
Graphics should be on facing at you. Db3179 & DB3007 should be facing ground.
1P
1G
1P
