Icegame ROUND-UP - Page 26

26
D C
B A
4321
D C
B A
4321
DATE
7/9/01
DESCRIPTION

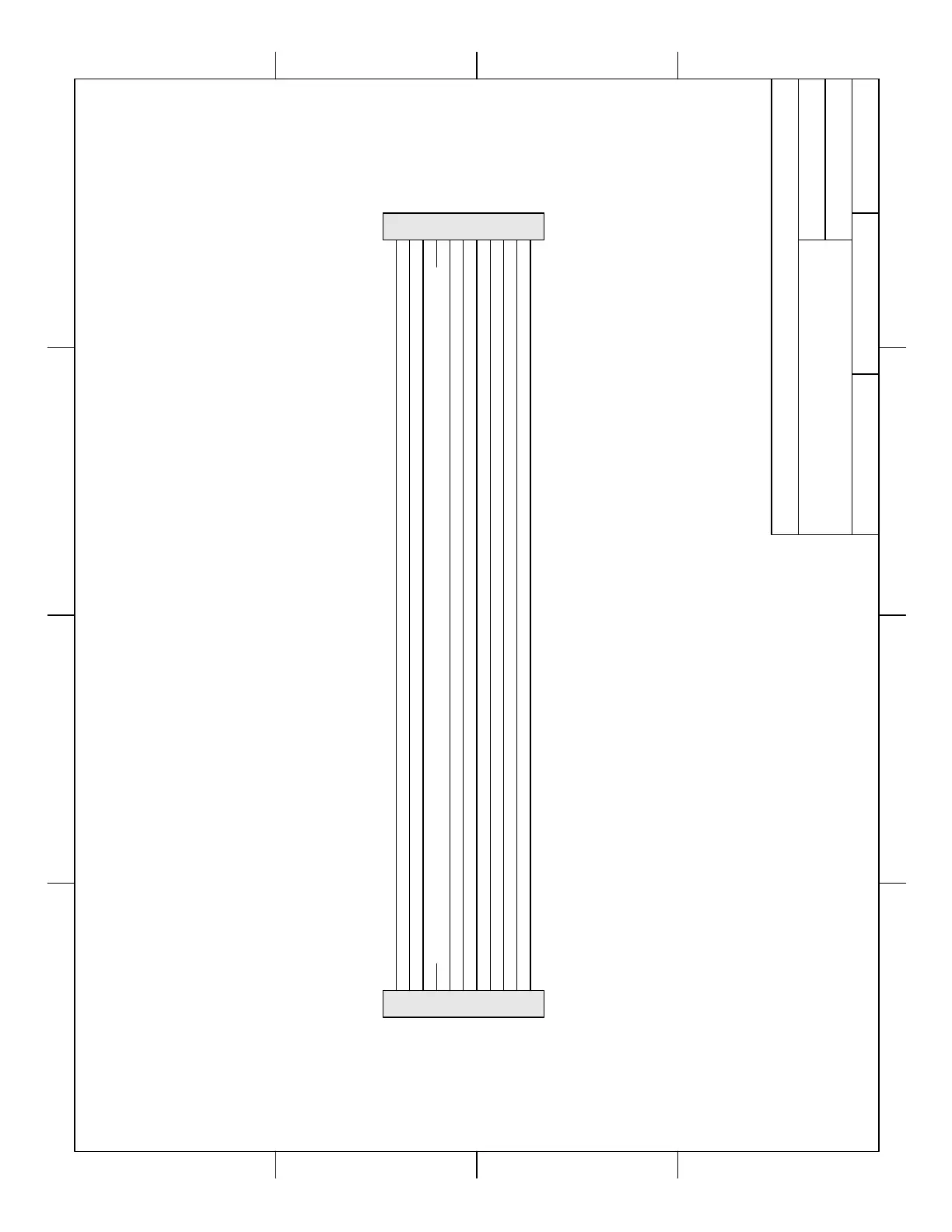

#RC2064X - ROTARY MOTOR DRIVER HARNESS
DRAWN BY
MMARTIN
FILENAME
RC.VSD
PAGE
11 OF 21
REVISED
3/15/02
TITLE
ROUND CRANE
red black/white white/black KEY white/brown black/white white/red VIOLET VIOLET BLACK BLACK
1 2 3 4 5 6 7 8 9
10 11
11 PIN AMP HOUSING #2556 CONTACT PIN #2201 KEY PLUG #2239
1 2 3 4 5 6 7 8 9
10 11
11 PIN AMP HOUSING #2556
CONTACT PIN #2201
KEY PLUG #2239
red
black/white white/black
KEY
white/brown
black/white
white/red
VIOLET VIOLET
BLACK BLACK
+ 5 VDC
D GND
Feedback
KEY
Enable
D GND
Direction
+ 24 VDC + 24 VDC
P GND P GND
+ 5 VDC D GND Feedback KEY Enable D GND Direction + 24 VDC + 24 VDC P GND P GND
153 "
P2 P2
TO BRUSHLESS DRIVER
BOARD
TO ADAPTER BOARD
