Icegame ROUND-UP - Page 28

28
D C
B A
4321
D C
B A
4321
DATE
7/9/01
DESCRIPTION

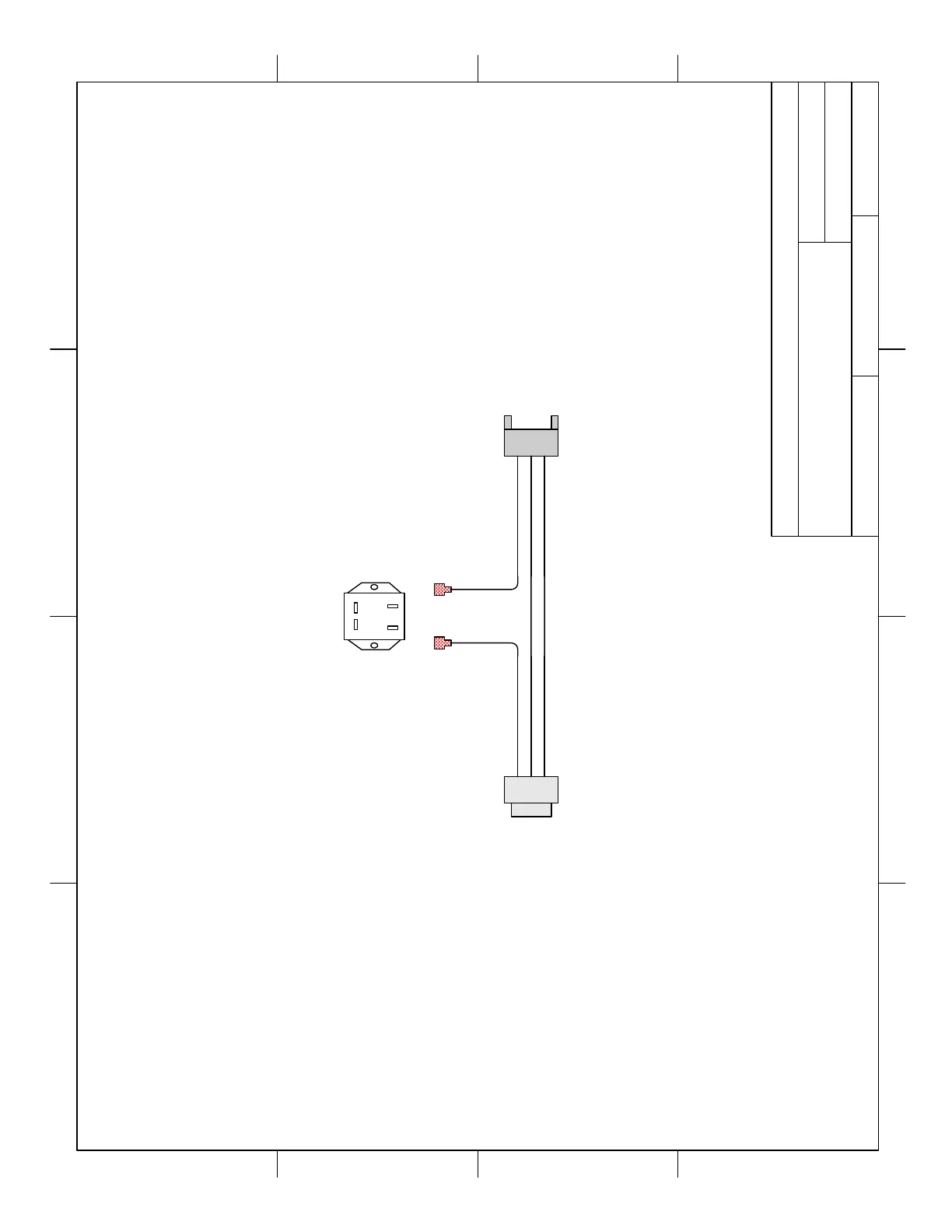

#RC2066X - BALLAST RELAY HARNESS
DRAWN BY
MMARTIN
FILENAME
RC.VSD
PAGE
13 OF 21
REVISED
3/15/02
TITLE
ROUND CRANE
1 2 3
3 PIN PLUG #2206 SOLID PIN #2100S
3 PIN CAP #2288 FEMALE #2102
1 2 3
AC L
EARTH GROUND
AC N
AC L EARTH GROUND AC N
#653T
.250
#653T
.250
BLACK GREEN/YELLOW WHITE
BLACK
GREEN/YELLOW
WHITE
1
2
34
SOLID STATE
RELAY
#RLDA-
240/15-000
#2111
+
-
TO BALLAST EXTENSION
TO RELAY
TO DOME BALLAST
14 "
15 "
7 "
