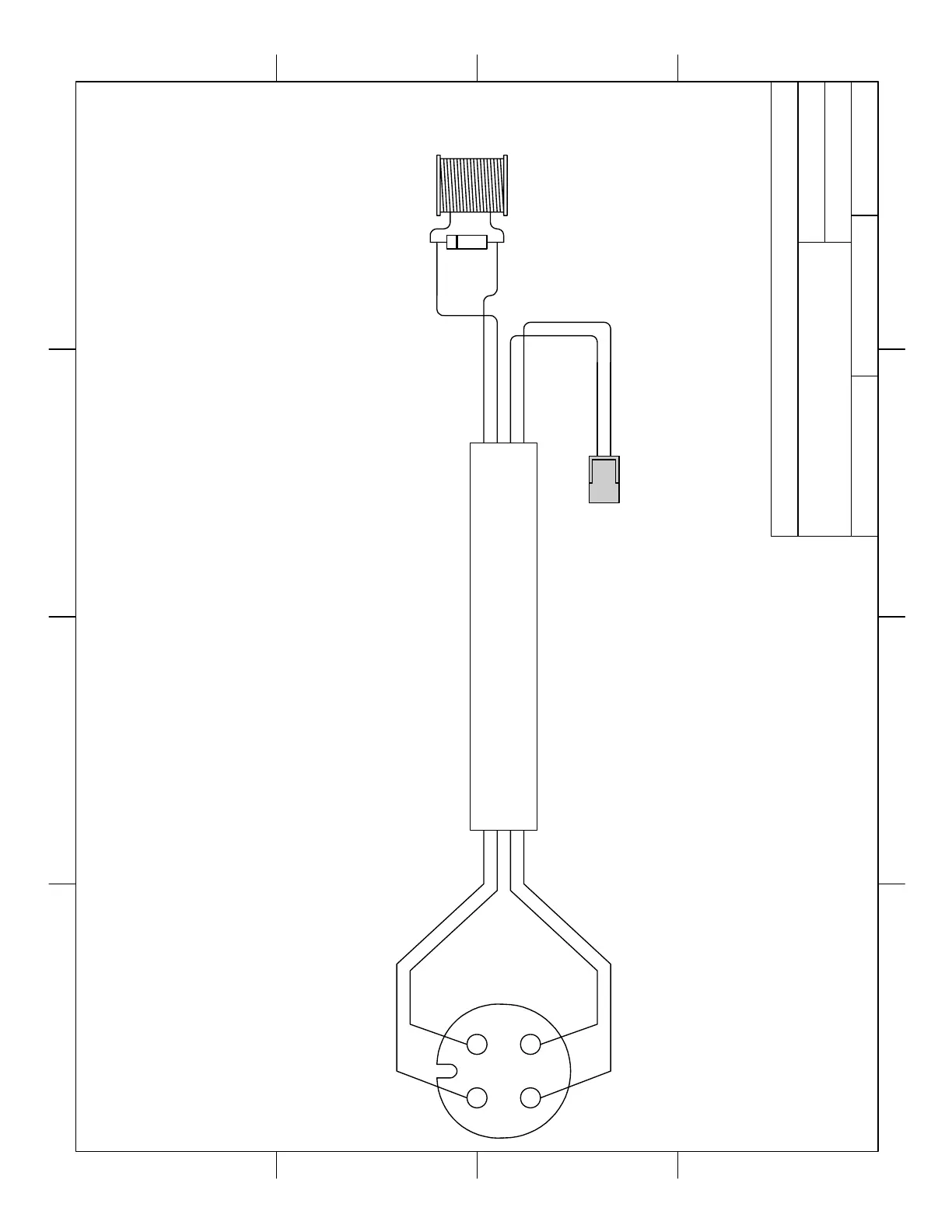

#RC3538X - SOLENOID ASSEMBLY
DRAWN BY
MMARTIN
FILENAME
RC.VSD
PAGE
21 OF 21
REVISED
3/15/02
TITLE
ROUND CRANE
1
2
3
4
#2875 - CABLE RETRACTABLE 4 COND, 12"
black
white
red
green
black
white
red
green
#2960 - PLUG (274-001)
VANCO CBC4MX
* STRIP JACKET BACK 2"
* STRIP BACK JACKET 1"
white
green
red
black
#2163 - DIODE 1N4004
WRAP END OF CORD JACKET WITH 1" OF
#8069 - SPIRAL WRAP 1/4" BLACK, WHERE
PLUG CLAMPS THE CORD
white
black
FOLD BACK RED AND GREEN WIRES AND
PLACE 1" OF #2611 - SHRINK TUBE FIT 221-
1/4" OVER END OF CORD JACKET
1
2
#8498 - 2 PIN MOLEX
MICRO-FIT PLUG
#8495 - MOLEX
MICRO-FIT MALE
TERMINAL
red
green
#2163
