INSTRUCTIONS

GPS RECEIVER

MXG-5000

Thank you for purchasing the MXG-5000

g p s r e c e i v e r .

Please read these instructions thoroughly

before installing and operating the GPS

receiver.

PRECAUTIONS

For CLASS A UNINTENTIONAL RADIATORS

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his own expense.

CAUTION: NEVER immerse the GPS receiver

in water. The GPS receiver meets IPX6 require-

ments for high-pressure water jet resistance.

However, once it has been dropped, high-pres-

sure water jet resistance cannot be guaranteed

because of possible damage to its case or the

waterproof seal.

DO NOT use or place the GPS receiver in

areas with temperatures below –20°C (–4°F)

or above +60°C (+140°F).

DO NOT use chemical agents such as benzine

or alcohol when cleaning, as they can damage

the GPS receiver’s surfaces.

The GPS receiver is only for the specified Icom

equipment such as MarineCommander

™

MA-500TR

! —Other manufacturer’s equip-

ment may have different pin assignments and

can damage the equipment or GPS receiver if

attached.

Item Qty.

q Hose clamp (HAS-40) .......................... 2

w Extension pipe (2273 pipe) .................. 1

e GPS receiver ........................................ 1

FCC INFORMATION

CAUTION: Changes or modifications not

expressly approved by the party responsible

for compliance could void the user’s authority

to operate the equipment.

CE Versions of the MXG-5000

which display the “CE” symbol on

the serial number seal, comply

with the essential requirements of the Euro-

pean Radio and Telecommunication Termi-

nal Di rective 1999/5/EC.

This warning symbol indicates that

this equipment operates in non-

harmonised frequency bands and/

or may be subject to licensing conditions in

the country of use. Be sure to check that

you have the correct version of this radio or

the correct pro gramming of this radio, to

comply with na tional licensing requirement.

This device complies with Part 15 of the FCC

Rules. Operation is subject to the following two

conditions: (1) this device may not cause harm-

ful interference, and (2) this device must ac-

cept any interference received, including inter-

ference that may cause undesired operation.

SUPPLIED ACCESSORIES

• Power supply voltage : 4.75 to 5.25 V DC

(supplied from the

connected equipment)

• Operating temp. range : −20˚C to +60˚C;

−4˚F to +140˚F

• Relative humidity : Less than 95%

(at +35˚C;

+95˚F)

• Dimensions :

140(d)×157.2(H)

mm;

⁄2

(d)×6

⁄16

(H) in.

• Weight (approx.) : 710 g; 1.57 oz

• Cable length (approx.) : 10 m; 32 ft. 9

⁄4

in.

• Receiving frequency : 1575.42 MHz

• Receiving channels : 12

• Receiving codes : L1, C/A-code, SPS

• Satellite differential type

WAAS, EGNOS, MSAS

• TTFF (Time to First Fix)

: 40 sec. (typical)

SPECIFICATIONS

All stated specifications are subject to change without notice or obligation.

ABOUT CE

DECLARATION

OF CONFORMITY

We Icom Inc. Japan

1-1-32, Kamiminami, Hirano-ku

Osaka 547-0003, Japan

Kind of equipment:

Type-designation:

Signature

Authorized representative name

Place and date of issue

Ve rsion (where applicable):

0560

Y. Furukawa

General Manager

Icom (Europe) GmbH

Communication Equipment

Auf der Krautweide 24,

65812 Bad Soden am Taunus,

Germany

GPS RECEIVER

mxg-5000

2nd Dec.

2010Bad Soden

Declare on our sole responsibility that this equipment complies with the

essential requirements of the Radio and Telecommunications Te rminal

Equipment Directive, 1999/5/EC, and that any applicable Essential T e st

Suite measurements have been performed.

This compliance is based on conformity with the following harmonised

standards, specifications or documents:

IEC 61108-1:2003

EN 60945:2002

EN 60950-1 2006 A11:2009

ii)

iii)

iv)

vi)

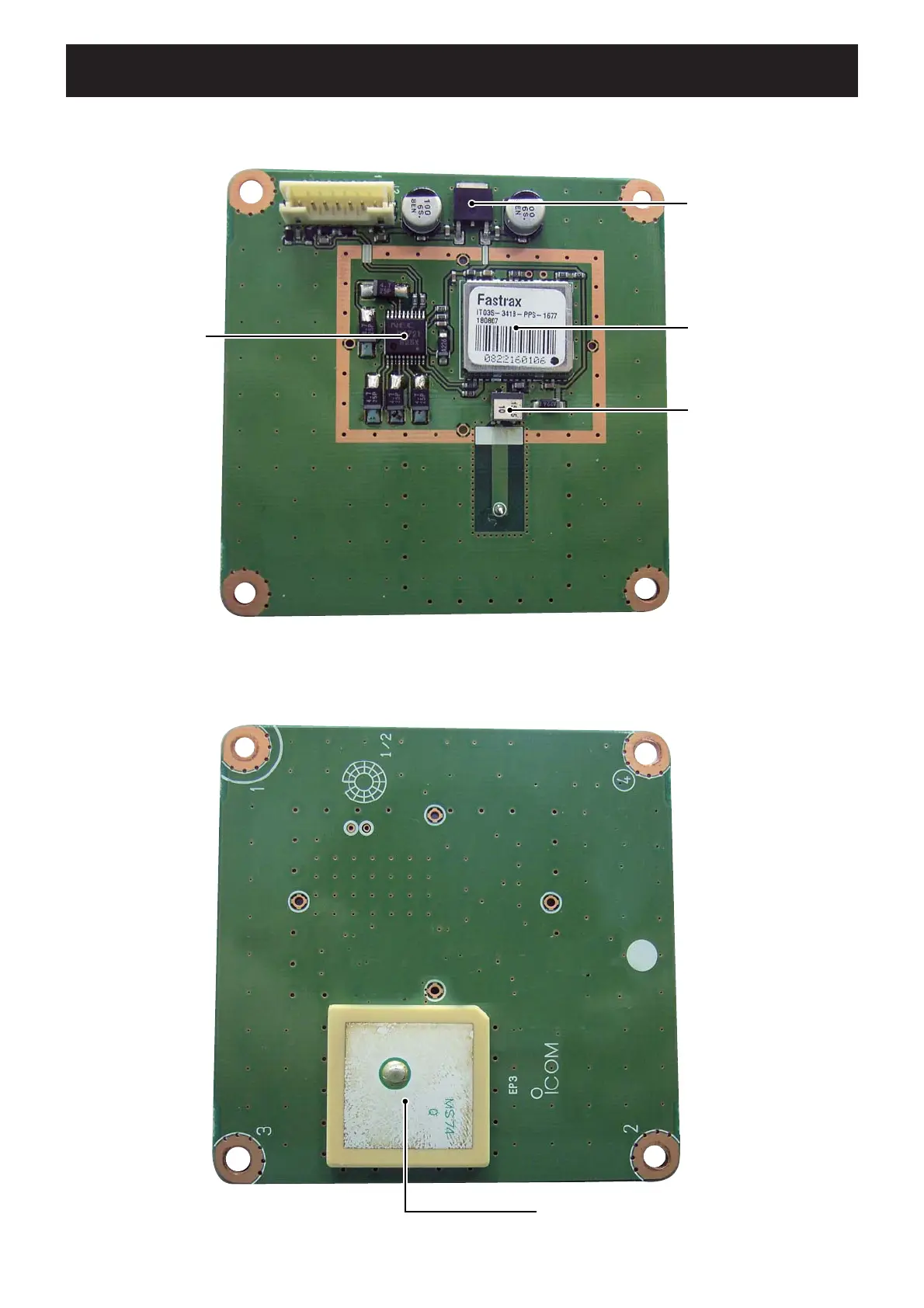

Icom MXG-5000 - Section 2 Inside Views
