SERVICE LETTER

SL-042820 REV A

ICA009717-E PAGE 8 of 9

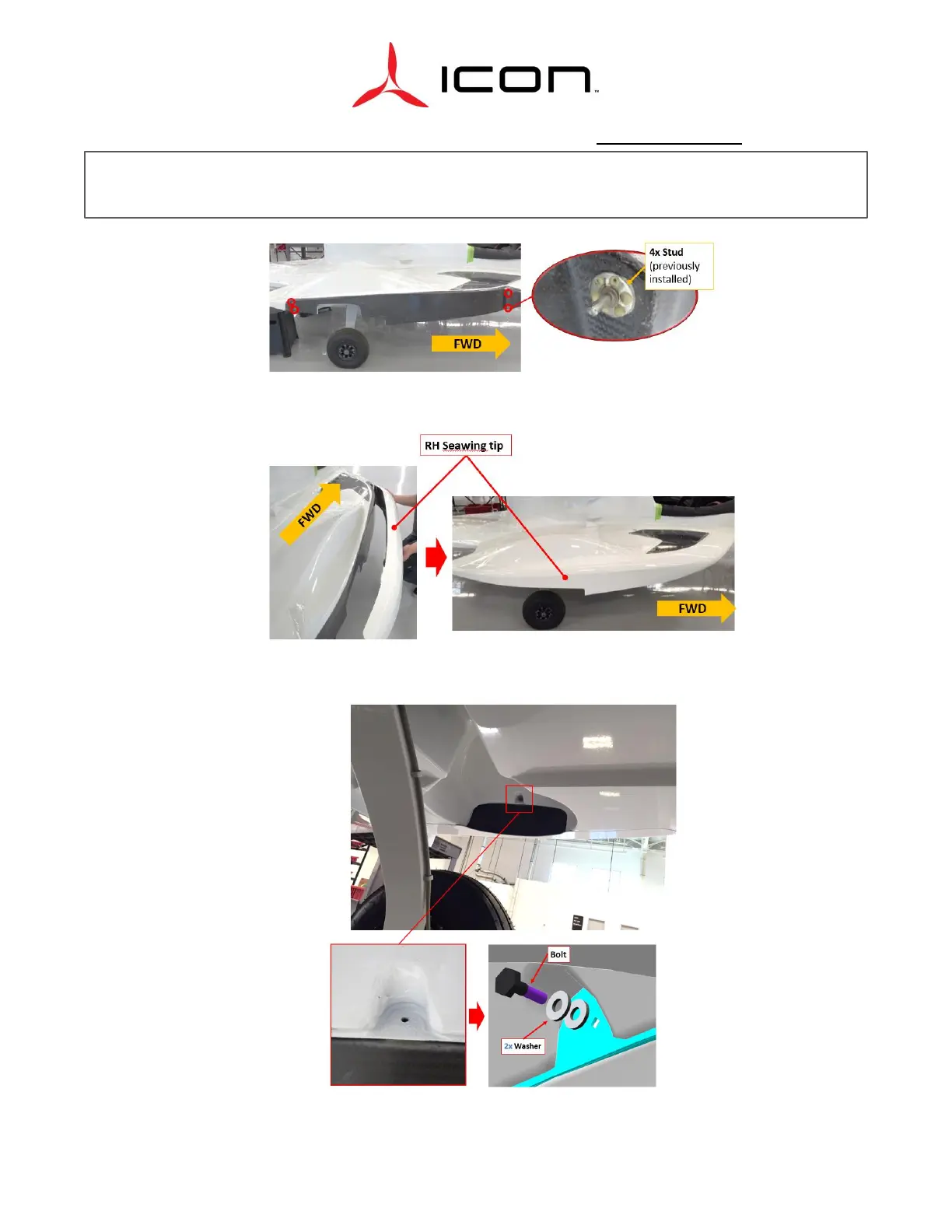

Figure 5 Seawing Tip Installation

5. Attach seawing tip to the fuselage using bolt with 2ea washers into existing nutplate.

Figure 6 Seawing Attachment Hardware
