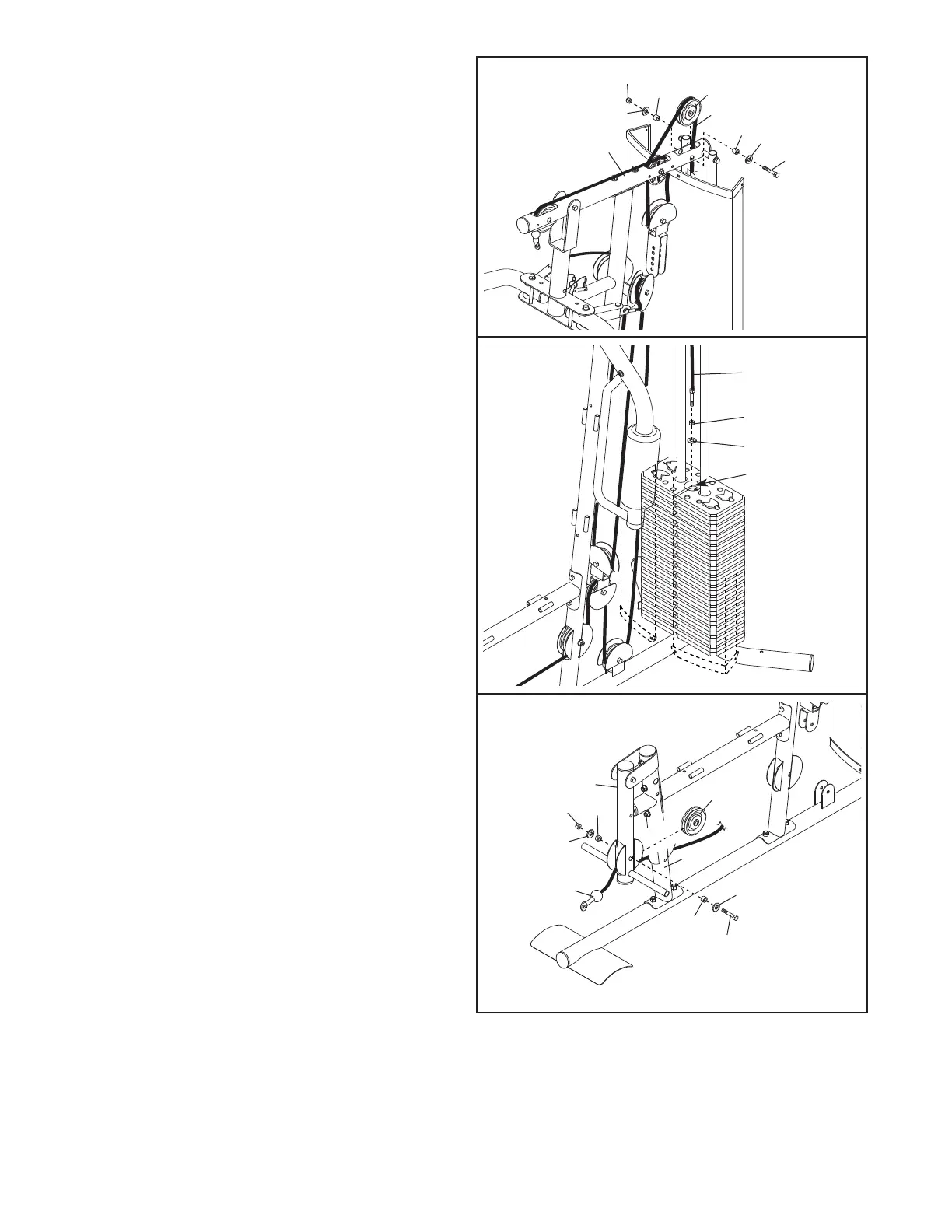

22. Route the High Cable (55) over a 90mm Pulley
(48) and down through the Top Frame (4).
A
ttach the Pulley inside the Top Frame with an
M10 x 78mm Button Bolt (71), two M10
W
ashers (57), two 19mm Spacers (33), and an
M10 Nylon Locknut (56).
24. Identify the Low Cable (53). Route the Cable
through the Leg Lever (8) and the Front Leg (7).
Attach a 90mm Pulley (48) inside the Leg Lever
(8), over the Low Cable (53), with an M10 x
72mm Button Bolt (85), two M10 Washers (57),
two 16mm Spacers (52), and an M10 Nylon
Locknut (56).
23. Thread an M12 Nut (86) all the way onto the
High Cable (55). Place a Large Washer (87) on
top of the Weight Tube (24).
Tighten the High Cable (55) into the Weight
Tube (24) until all the slack is removed from the
cables. Tighten the M12 Nut (86) against the
Large Washer (87).
