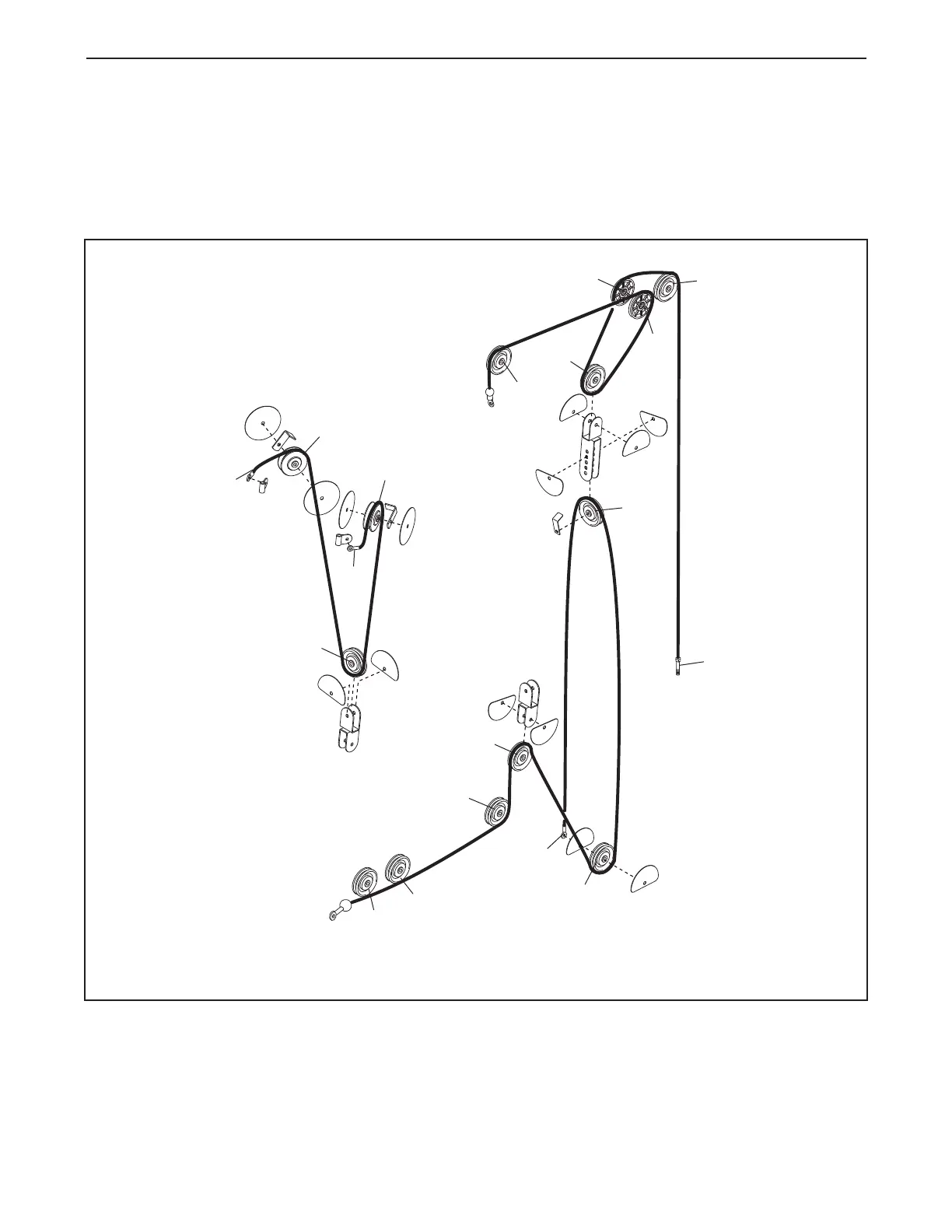

CABLE DIAGRAMS
The cable diagrams below show the proper routing of the Low Cable (53), the Arm Cable (54), and the High
Cable (55). Use the diagrams to make sure that the cables, cable traps, and finger guards have been assem-
b
led correctly. If the cables have not been correctly routed, the weight system will not function properly and
damage may occur. The numbers show the correct route for each cable.
Make sure that the cable traps do
not touch or bind the cables.
1
2
4
2
3
4
5
5
Arm Cable (54)
Length: 259 cm (102 in.)
High Cable (55)
Length: 292 cm (115 in.)
Low Cable (53)
Length: 424 cm (167 in.)
3
1
6
1
2
3
4
5
7
6
20
