7

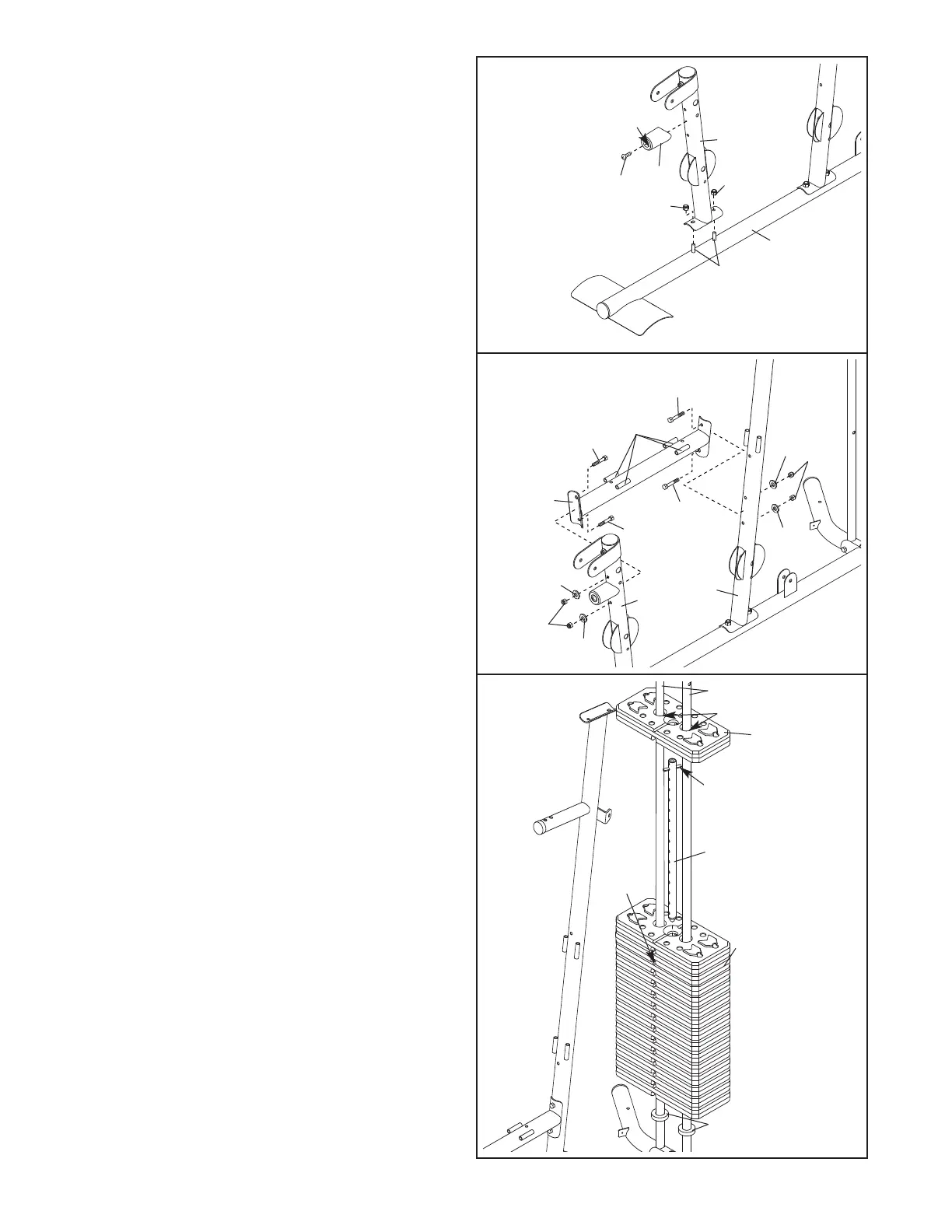

3. Attach the Front Leg (7) to the Base (1) with the
two indicated M8 x 74mm Carriage Bolts (78)
a
nd two M8 Nylon Locknuts (58). D
o not tight-
en the Nylon Locknuts yet.
Attach the Leg Bumper (60) to the Front Leg (7)
with an M4 x 19mm Screw (69). Make sure the
end of the Leg Bumper is pointing upward.
4. Hold the Seat Frame (6) between the Upright
(3) and the Front Leg (7). Orient the Seat
Frame so that the welded rods are closer to the
Upright.
Attach the Seat Frame (6) to the Upright (3)
with two M8 x 77mm Button Bolts (68), two M8
Washers (59), and two M8 Nylon Locknuts (58).
Do not tighten the Nylon Locknuts yet.
Attach the Seat Frame (6) to the Front Leg
(7) in the same manner.
5. Slide the two Weight Bumpers (27) onto the
Weight Guides (21). Orient fourteen Weights
(22) so the pin holes are on the bottom, and
slide the Weights onto the Weight Guides.
Insert the Weight Tube (24) into the fourteen
Weights (22). Make sure the pin on the
Weight Tube is oriented as shown.
Using the included grease packet, lubricate the
indicated holes in a Weight (22). Slide the
Weight onto the Weight Guides (21).
3
4
78
5
8
58
69
Up
60
7
1
6
68
Welded
Rods
68
68
59
59
59
59
3
7
58
58
68
5
22
21
22
27
24
Pin
Pin
Hole
Grease
To Next Page
