SPECIFICATIONS
SUPPLY VOLTAGE 12V DC ( 19V DC maximum)
LOW BATTERY WARNING
When the battery volts drop to 11.5V the LOW BAT
pointer appears. Replace the battery and continue.
The indicator shuts down at about 10.5V.
MAXIMUM LOAD 2000 kg – Standard loadbars
3000 kg – Heavy Duty loadbars
OPERATING TEMPERATURE -5° to +50°C
ACCURACY ±0.5% of weight ± 1 division
(1 division = 0.1, 0.2, 0.5 kg etc depending on weight
range)
MINIMUM CAPACITY 20 kg
The 0 – 20 kg range is available but is not part of the
EMC (RF immunity) specification.
RESOLUTION
Standard loadbars
0 – 20 kg 0.1 kg steps
20 – 50 kg 0.2 kg steps
50 – 200 kg 0.5 kg steps
200 – 500 kg 1 kg steps
500 – 2000 kg 2 kg steps
Heavy Duty loadbars
0 – 100 kg 0.5 kg steps
100 – 200 kg 1 kg steps
200 – 1000 kg 2 kg steps
1000 – 3000 kg 5 kg steps
ZERO TRACKING
Small residual weights left on the scale between
weighings (dung and dirt buildup) are automatically
“zero-tracked” out and the scale returned to zero. As
this occurs, the ZERO pointer will indicate that ZERO
has been reached.
The zero-tracking amount is set to 0.5% of the weight
displayed after the last press of the WEIGH key, with a
maximum amount of 2.2kg.
At switch-on the zero-tracking amount is initialised to
0.015% of capacity (0.3kg for 2000kg loadbars).
STANDARD LOADBAR SET 2000kg

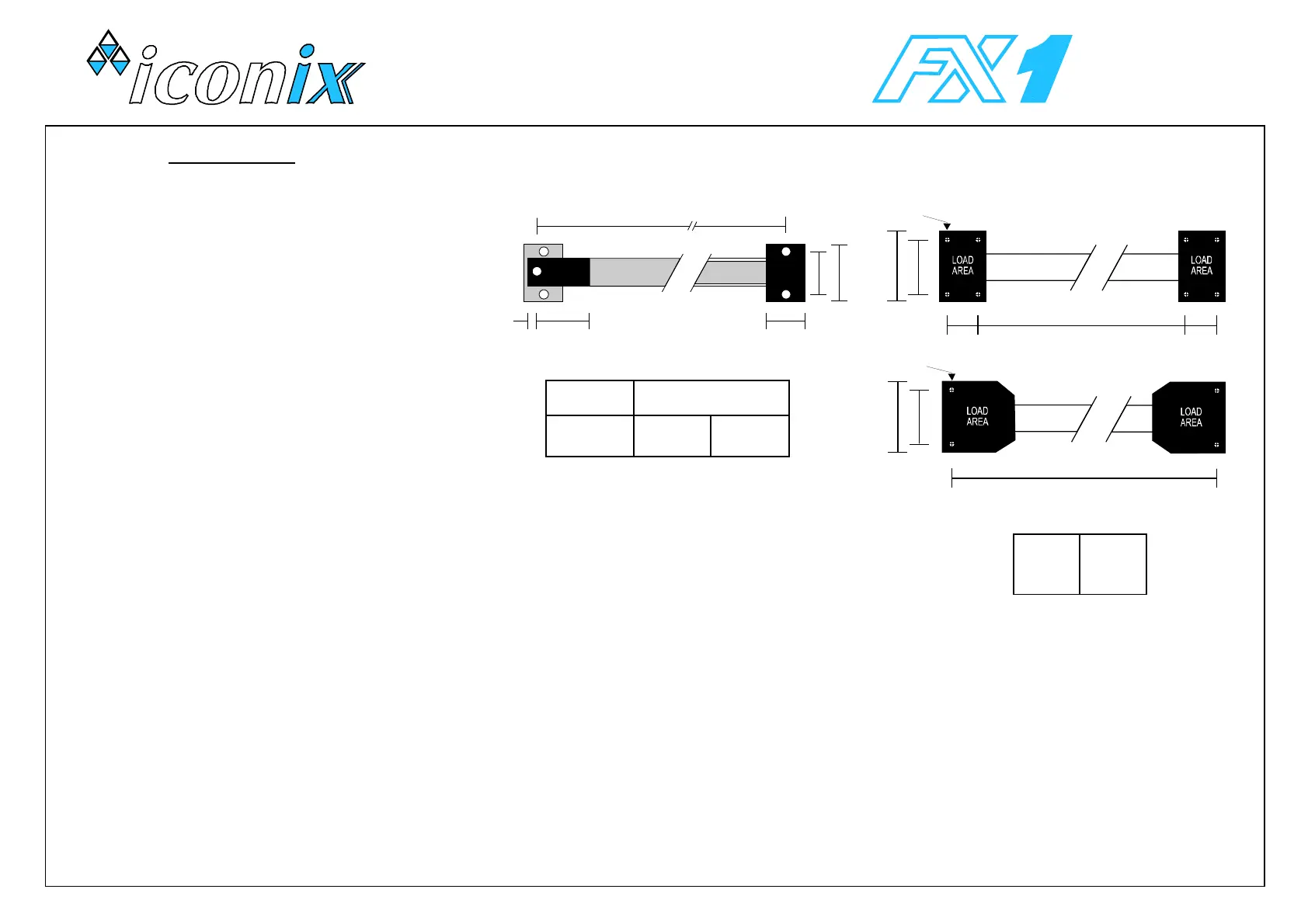

LOADBAR DIMENSION
A B
600 mm
1000 mm
570
970
546
946
HEAVY DUTY LOADBAR SET 3000kg
Length
Width
Height
1000
200
115
FX1 INST 30JUN04
