Savannah FLIGHT MANUAL
l Pag.181

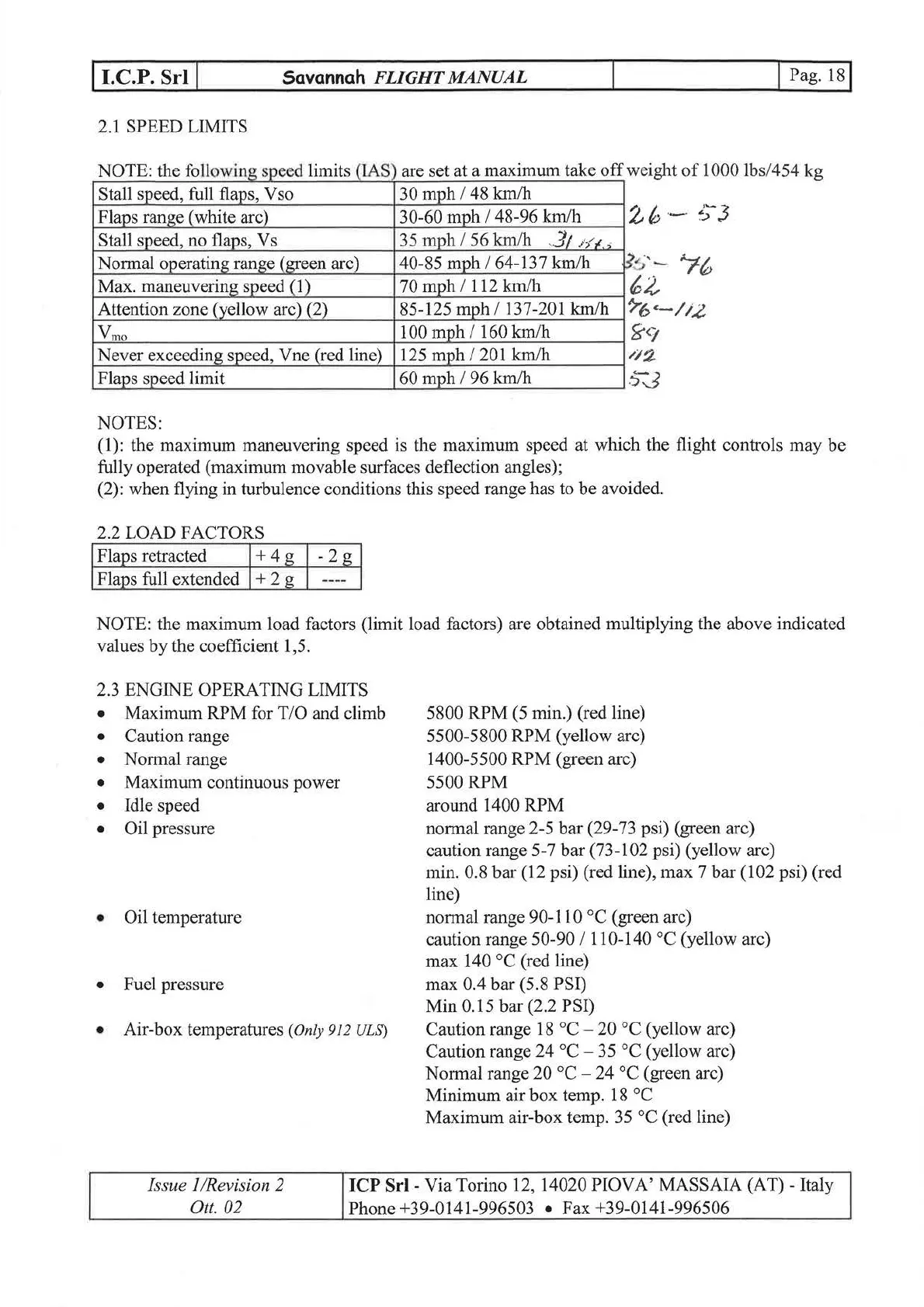

2.1 SPEED LIMITS
NOTE h ti U : t e o owmg spee 1m1ts
d r · (IAS)
Stall
SQ_eed, full flaps, Vso
Flaps range (white arc)
Stall speed, n o flaps, V s
Normal operating range (green arc)
Max. maneuvering speed
(l)
Attention zone (yellow arc) (2)
Vmo
Never exceeding speed, Vne (red line)
Flaps speed limit
NOTES:
are set a a max1mum a e o w e
t
t k ff ight of 1000 lbs/454 kg
30 mph l 48 km/h
30-60 mph l 48-96 km/h
35
mph l 56 km/h
'Y, j /-1.
~.J l) . j
40-85 mph l 64-13 7 km/h
70 mph l 112 km/h
85-125 mph l 137-201 km/h
100 mph l 160 km/h
125 mph l 201 km/h
60 mph l 96 km/h
2
·~ 6
l>
~
,_ 70
l
'"6c-11.2
~
9
-'/
2
.":}
(1): the maximum maneuvering speed is the maximum speed at which the flight controls may be
fully operated (maximum movable surfaces detleetion angles);
(2): when flying
in turbulence conditions this speed range has to be avoided.
2.2
LOAD FACTORS
Fia
s retracted + 4
Fia s full extended + 2
NOTE: the maximum load factors (limit load factors) are obtained multiplying theabove indicated
values
by the coefficient 1,5.
2.3 ENGINE
OPERA TING LIMITS
•
Maximum RPM for T/0 and climb
• Caution range
• Normal range
• Maximum continuous power
• Idle speed
• Oil pressure
• Oil temperature
• Fuel pressure
• Air-box temperatures (Only 912 ULS)
5800 RPM (5 min.) (red line)
5500-5800 RPM (yellow arc)
1400-5500 RPM (green arc)
5500 RPM
around 1400 RPM
normal range 2-5 bar (29-73 psi) (green arc)
caution
range5-7 bar (73-102 psi) (yellow arc)
min.
0.8 bar (12 psi) (red line), max 7 bar (102 psi) (red
line)
normal range
90-11 O o c (green arc)
caution range
50-90 l 110-140 oc (yellow arc)
max 140 °C (red line)
max 0.4 bar (5.8 PSI)
Min 0.15 bar (2.2 PSI)
Caution range 18 o c - 20 °C (yellow arc)
Caution range 24
oc- 35 °C (yellow arc)
Normal range
20 oc- 24 °C (green arc)
Minimum air
box temp. 18 °C
Maximum air-box temp. 35 °C (red line)
