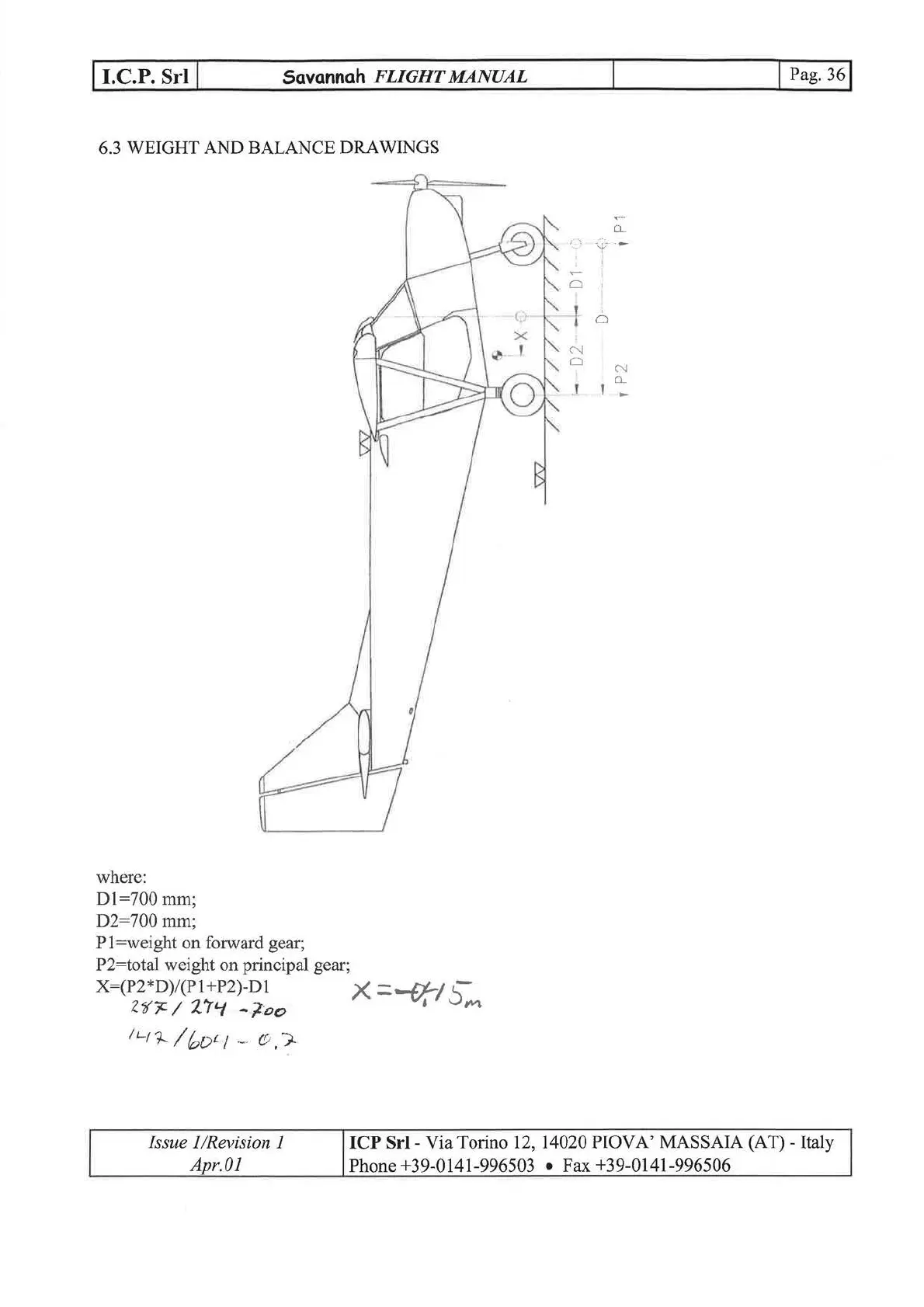

6.3 WEIGHT AND BALANCE DRA WINGS
where:
D1=700mm;
D2=700mm;
P l =weight on forward gear;
P2=total weight on principal gear;
X=(P2*D)/(Pl +P2)-Dl X =-ff.-/ !J-
Z '?f~ l J.:Ttt -loo ' M
1
L-f f.- /foD' l -- (!; • ").
