ICT P70 User Manual

- 6 - - 5 -
Unit : :mm [ inch ]
Bill width available 60mm~85mm.

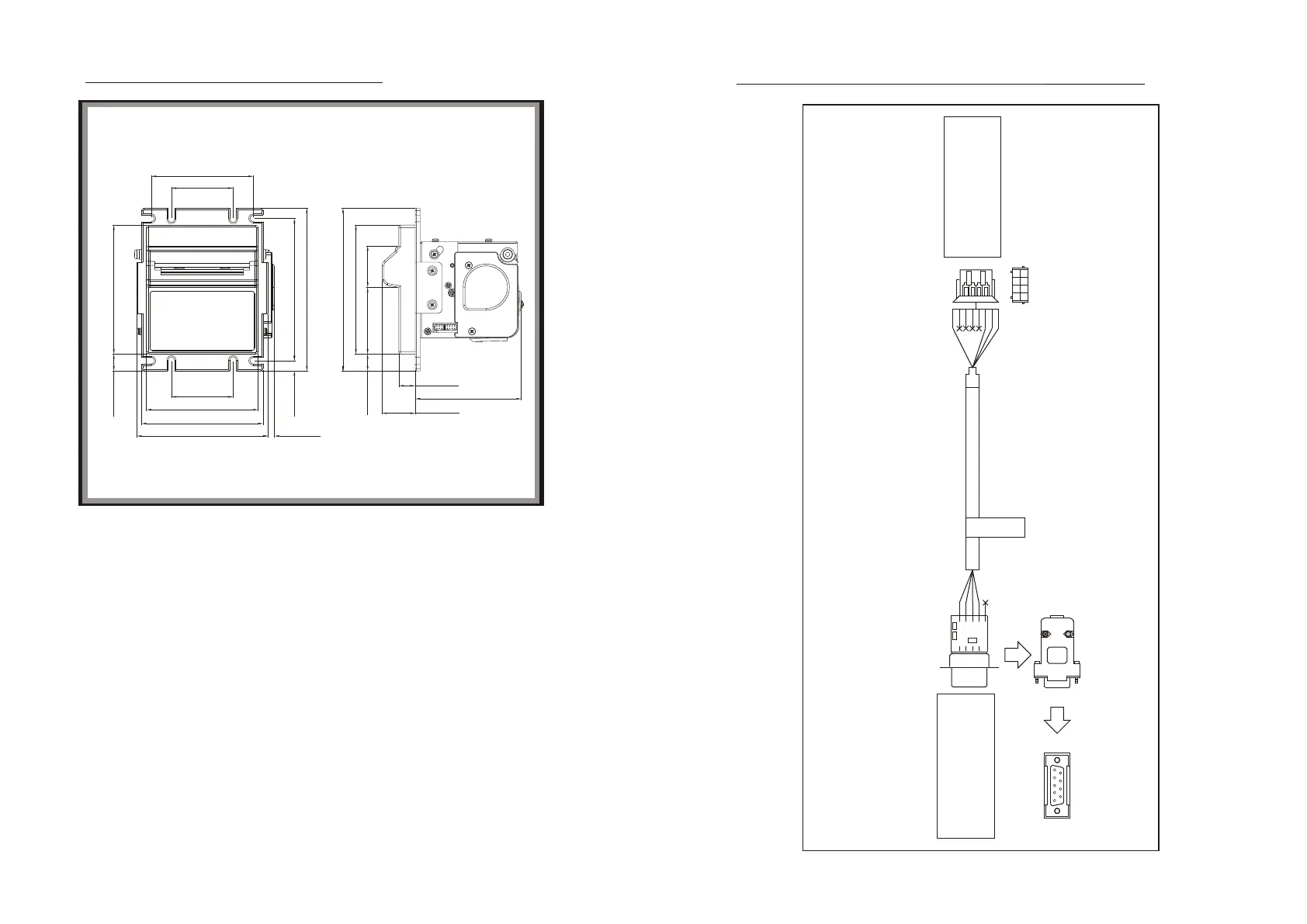

P85 Bill Validator Dimensions
P85
84.0 [3.31"]
50.8 [2.00"]
106.0 [4.18"]
14.0 [0.55"]
50.8 [2.00"]
100.0 [3.94"]
107.8 [4.25"]
5.3 [0.21"]
92.0 [3.62"]
8.5 [0.33"]
117.0 [4.61"]
134.0 [5.28"]
134.0 [5.28"]
106.0 [4.18"]
54.9 [2.16"]
34.1 [1.34"]
14.0 [0.55"]
87.2 [3.44"]
27.2 [1.07"]
13.5 [0.53"]
P70/P77/P85 ICT Protocol Harness
WEL-7U06
ICT PROTOCOL
#WEL-7U06
C1
C2
C3
J2
J3
1 2 3 4 5
1 2 3 4 5 6 7 8
TMT 2*4
7 86
5
4 3
2 1
TMT 2*4 BACK VIEW
2464 22AWG 4C CABLE
D-SUB(F)
12345
6789
D-SUB 9F TOP VIEW
Pin 1 BLUE--------Ground
Pin 6 WHITE------Download VCC Pin 7 BLACK------RX1 Pin 8 PURPLE----TX1
Pin 1 BLUE--------Ground
Pin 2 WHITE------Download VCC Pin 3 BLACK------RX1
Pin 4 PURPLE-----TX1
