WEL-RM006
HORN-30
PIN 1- BLUE..............................................34VDC
PIN 2- YELLOW.................34VDC Power Return
PIN 3- N/C
PIN 4- ORANGE...........................Master Receive
PIN 5- RED..................................Master Transmit
PIN 6- GREEN............Communications Common
PIN 6- ORANGE...........................Master Receive
PIN 14- RED..................................Master Transmit
PIN 16- YELLOW..................34VDC Power Return
PIN 23- 3BLUE...............................................4VDC
PIN 28- GREEN.............Communications Common
123
456
.163inch or 4.14 mm
MOLEX 5557-6R BACK VIEW
1 2 3
54 6
.163or4.14
MOLEX 5559-06P BACK VIEW
*
*
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
DC 34V MDB
#WEL-M006
1
2
3
4
5
6
MOLEX 5559-06P
1
2
3
4
5
6
MOLEX 5557-6R
( MDB / 34V DC )
1
2
3
4
5
6
7
8
9
15
14
12
13
11
10
MOLEX 15P 0.248/6.3(F)
1
2
3
4
5
6
7
8
9
15
14
12
13
11
10
MOLEX 15P 0.248/6.3(M)
2464 24AWG 6C CABLE 2464 24AWG 4C CABLE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
BLK-15*2(2.54mm/KEY)
*
*

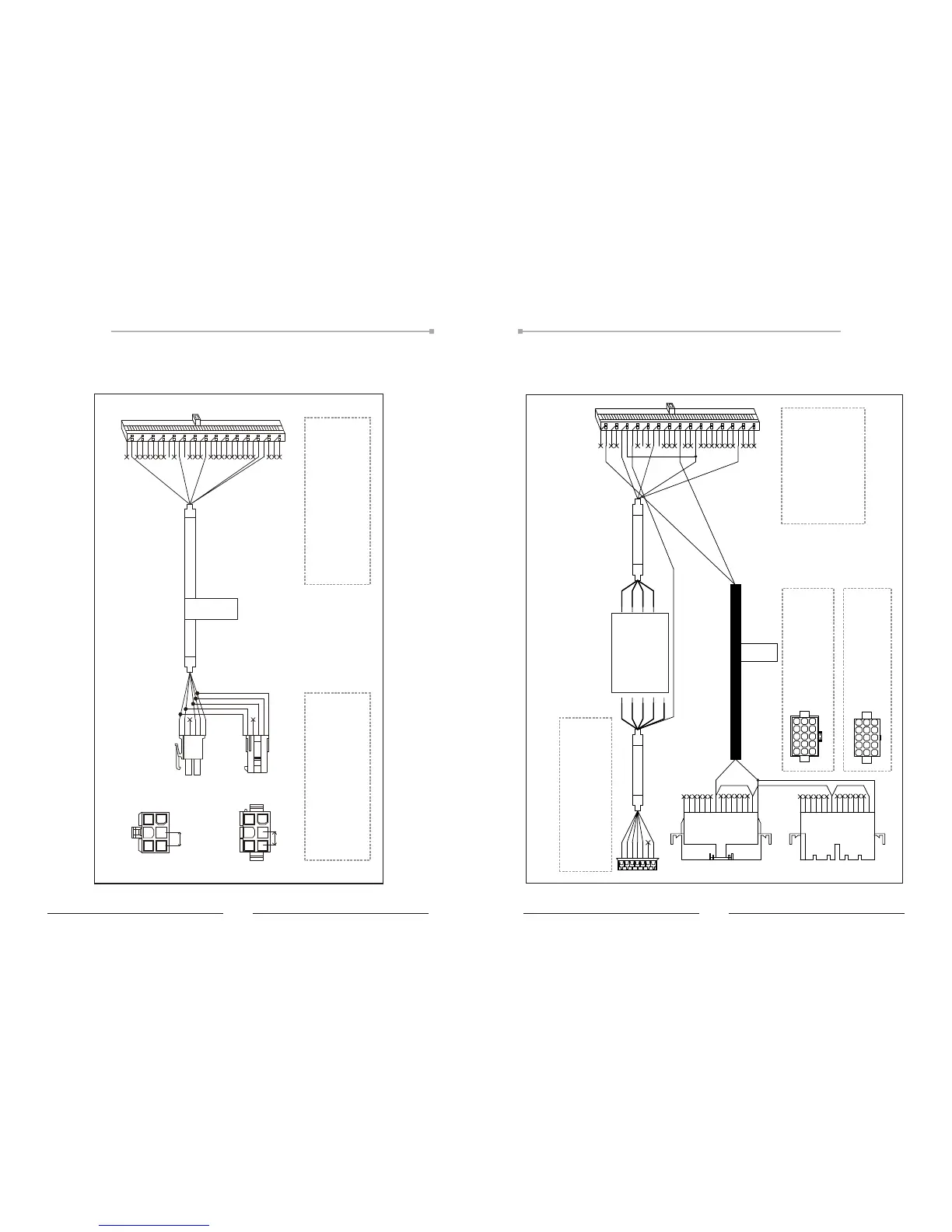

PIN 1- BLUE............CH1
PIN 2- YELLOW......CH2
PIN 3- WHITE.........CH3
GREEN
BLUE
YELLOW
WHITE
ORANGE
BLACK
WHITE
BLUE
PURPLE
PIN 1- BROWN............24VAC-Neutral
PIN 2- BLUE................... 24VAC_HOT
PIN 9- BLUE................... 24VAC_HOT
15 12 9
14
11 8
13 10 7
6 3
5 2
4 1
MOLEX
1991-15
MOLEX 15P 0.248/6.3(M)BACK
#WEL-RLD15
Parallel GPT
1
2
3
4
5
6
7
MOLEX 51004-7P
5RBG-AA203L1-0x
(Parallel<GPT> / 24VAC)
PIN 1- BROWN.............24VAC-Neutral
PIN 2- BLUE.................... 24VAC_HOT
PIN 9- BLUE.....................24VAC_HOT
15129
14118
13107
63
52
41
MOLEX
1991-15
MOLEX 15P 0.248/6.3(F)BACK
PIN 3- WHITE..........................+12V
PIN 4- RED........................INHIBIT+
PIN 6- PURPLE...............MDB_RXD
PIN 10&18- BLACK...................GND
PIN 14- BLUE...................MDB_TXD
PIN 16- BROWN.......24VAC-Neutral
PIN 23- BLUE............... 24VAC_HOT
Plug-in Box
MOLEX 51004-7P
BLK-15*2(2.54mm/KEY)
PIN 4- ORANGE.....CH4
PIN 5- RED.......INHIBIT
PIN 7- GREEN.......GND
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
15
www.ictgroup.com.tw
16
www.ictgroup.com.tw
Figure.13
Figure.14
To Next Page
