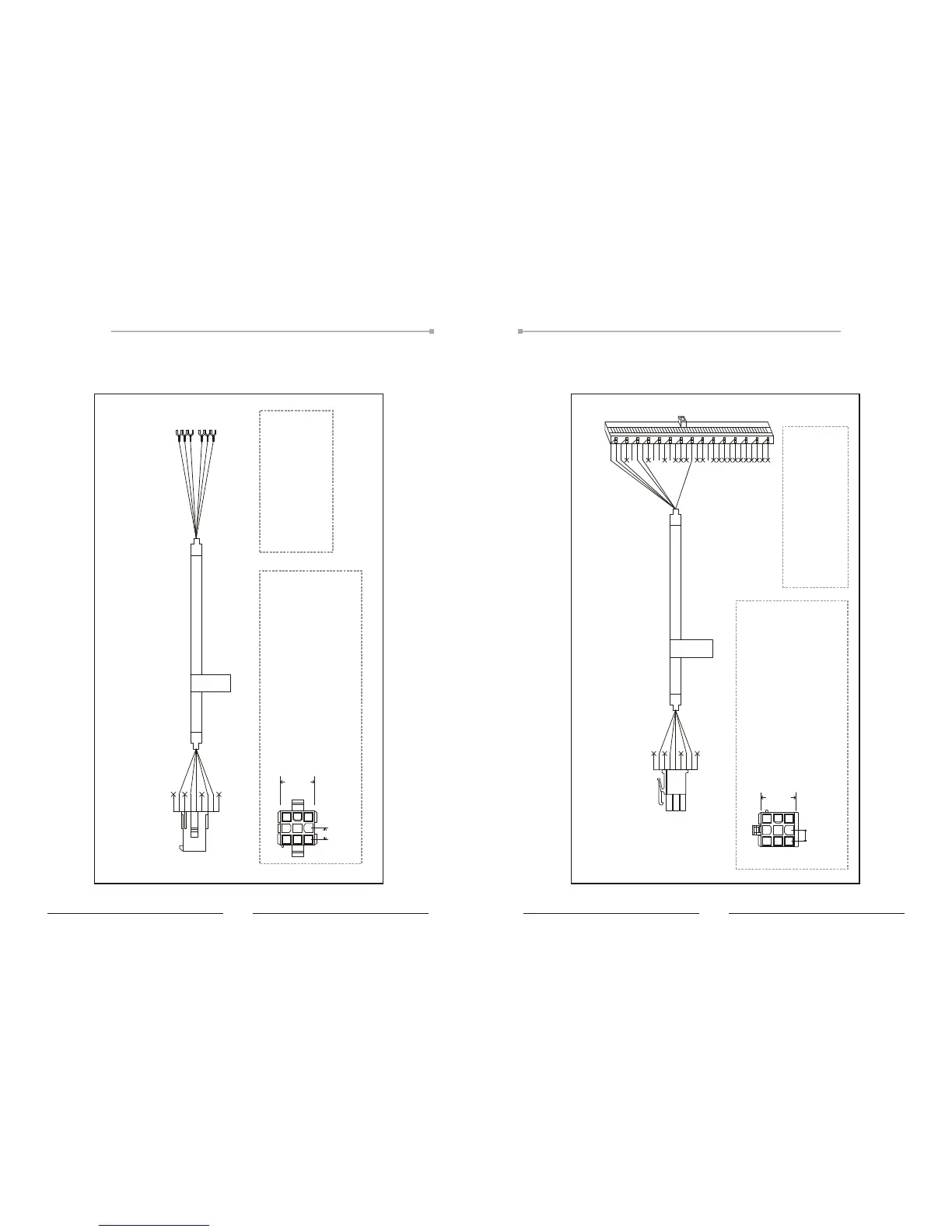

WEL-RV702
AC 24V
#WEL-RV702
202
202
202
202
202
202
.551 inch
or 14mm
K
+AMP
.165inch or 4.2mm
1 2 3
4 5 6
7 8 9
AMP 172332-1 BACK VIEW
1
2
3
4
5
6
7
8
9
AMP 172332-1
P 1- Reserved
P 2- INHIBIT+.....................................................YELLOW
P 3- Reserved
P 4- CREDIT_RELAY (N.O.)....................................BLUE
P 5- CREDIT_RELAY (Common).........PURPLE&GREEN
P 5- INHIBIT.........................................PURPLE&GREEN
P 6- Reserved
P 7- 24V AC (RET).............................................ORANGE
P 8- 24V AC (HOT)....................................................RED
P 9- Reserved
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
YELLOW....................................INHIBIT+
BLUE...................CREDIT_RELAY (N.O.)
PURPLE.......CREDIT_RELAY (Common)
GREEN.........CREDIT_RELAY (Common)
ORANGE............................24V AC (RET)
RED...................................24V AC (HOT)
( Standard Pulse / 24V AC )
P 1- Reserved
P 2- INHIBIT+.............................................YELLOW
P 3- Reserved
P 4- CREDIT_RELAY (N.O.)...........................BLUE
P 5- CREDIT_RELAY (Common)
..............PURPLE&GREEN
P 5- INHIBIT-
P 6- Reserved
P 7- 24V AC (RET)....................................ORANGE
P 8- 24V AC (HOT)...........................................RED
P 9- Reserved
IN
IN
IN
IN
IN
IN
IN
IN
IN
IN
WEL-RV703
2464 22 AWG 6C CABLE
*
*
AC 24V
#WEL-RV703
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
BLK-15*2
+AMP
.551 inch
or 14mm
.165inch or 4.2mm
123
456
789
AMP 172340-1 BACK VIEW
1
2
3
4
5
6
7
8
9
AMP 172340-1
P 1- CREDIT_RELAY (Common).........PURPLE
P 2- CREDIT_RELAY (N.O.).....................BLUE
P 4- INHIBIT+......................................YELLOW
P 16- 24V AC (RET)..............................ORANGE
P 18- INHIBIT...........................................GREEN
P 23- 24V AC (HOT).....................................RED
IN
IN
IN
IN
IN
IN
( Standard Pulse / 24V AC )
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
13
www.ictgroup.com.tw
14
www.ictgroup.com.tw
Figure.11 Figure.12
To Next Page
