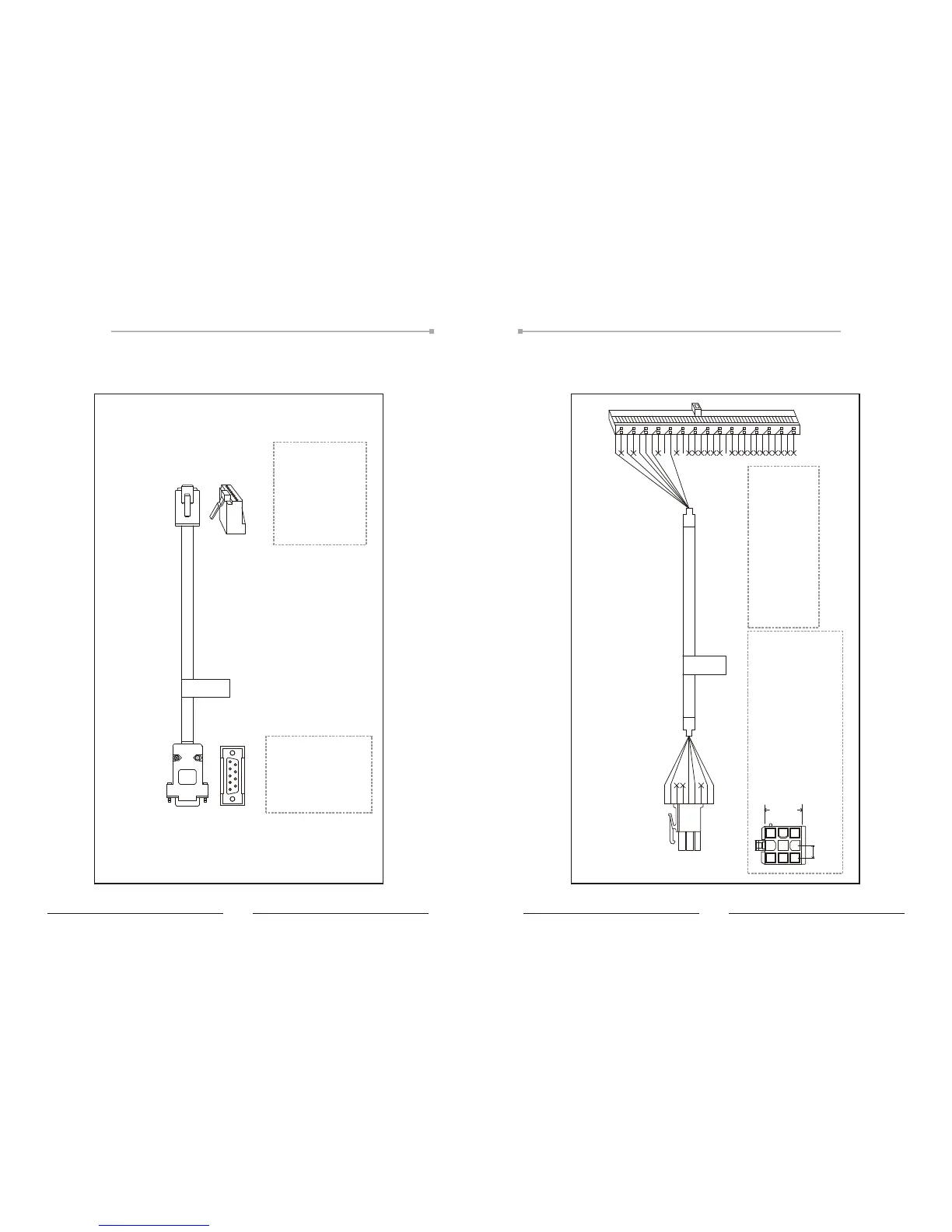

WEL-RV706
26 AWG 6C PHONE CABLE
(ICT Protocol <RS232> / 12V DC, 117V AC <A7> )
D-SUB(F)
12345
6789
D-SUB 9F TOP VIEW
RJ-45
1
2
3
4
5
6
7
8
RJ-45 VIEW
PIN 1- Reserved
PIN 2- RXD
PIN 3- TXD
PIN 4- Reserved
PIN 5- GND
PIN 6- Reserved
PIN 7- Reserved
PIN 8- Reserved
PIN 9- Reserved
PIN 1- BLUE................GND
PIN 2- YELLOW.........TX22
PIN 3- GREEN...........RX22
PIN 5- Reserved
PIN 6- Reserved
PIN 6- RED..................VCC
PIN 7- BLACK.............RX11
PIN 8- WHITE..............TX11
WEL-RV706
ICT PROTOCOL
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
11
www.ictgroup.com.tw
12
www.ictgroup.com.tw
WEL-RV701
*
*
DC 12V
#WEL-RV701
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
BLK-15*2
1
2
3
4
5
6
7
8
9
AMP 172340-1
+AMP
.551 inch
or 14mm
.165inch or 4.2mm
123
456
789
AMP 172340-1 BACK VIEW
P 1- Y ELLOW .....................................INHIBIT+
P 2- G REEN .........................................INHIBIT
P 3- Reserved
P 4- Reserved
P 5- R ED .............................. 12V DC (POWER)
P 6- Reserved
P 7- B LUE.................... CREDIT_RELAY (N.O.)
P 8- P URPLE ........ CREDIT_RELAY (Common)
P 9-O RANGE ........................... GND (POWER)
IN
IN
IN
IN
IN
IN
IN
IN
IN
P 1- PURPLE........CREDIT_RELAY (Common)
P 2- BLUE...................CREDIT_RELAY ( N.O.)
P 3- RED...............................12VDC (POWER)
P 4- YELLOW......................................INHIBIT+
P 18- GREEN..........................................INHIBIT
P 20- ORANGE...........................GND (POWER)
IN
IN
IN
IN
IN
IN
( Standard Pulse, ICT Protocol <RS232> / 12V DC)
Figure.9 Figure.10
To Next Page
