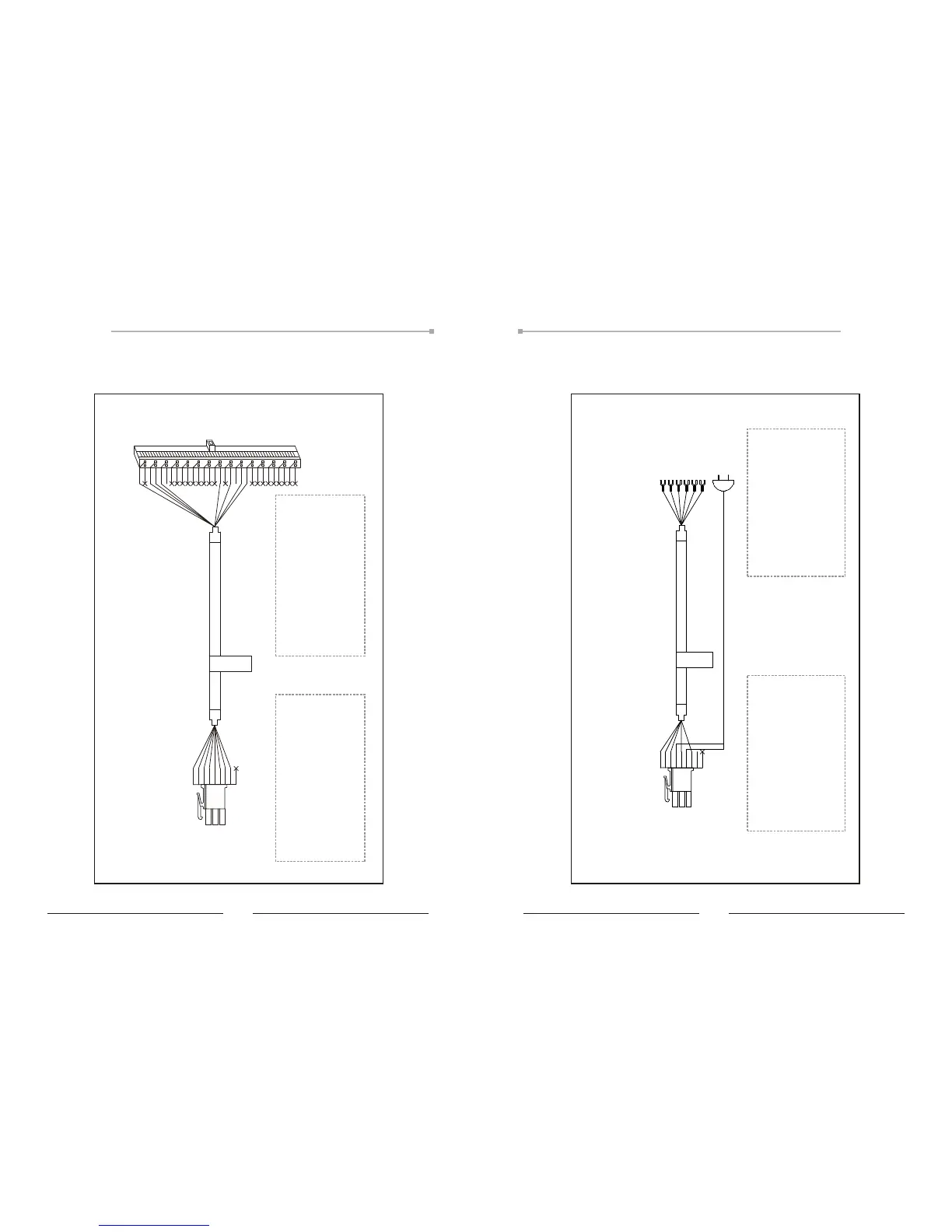

WEL-RM008
2464 22 AWG 8C CABLE
AC 117V
WEL-RM008
(Standard Pulse, ICT Protocol <RS232> / 117V AC)
PIN 1- YELLOW.....................NEUTRAL INHIBIT
PIN 2- RED...........................NEUTRALE NABLE
PIN 3- BROWN..............................HOT ENABLE
PIN 4- BLACK.....................117VAC HOT(Power)
PIN 5- GREEN................................Earth-Ground
PIN 6- WHITE...........117VAC NEUTRAL(Power)
PIN 7- BLUE.....................CREDIT_RELAY(N.O.)
PIN 8- PURPLE.........CREDIT_RELAY(Common)
PIN 9- Reserved
PIN 1- PURPLE......CREDIT_RELAY(Common)
PIN 3- RED..........................NEUTRALENABLE
PIN 4- WHITE..........117VACNEUTRAL(Power)
PIN 5- YELLOW....................NEUTRALINHIBIT
PIN 16- BLUE..................CREDIT_RELAY(N.O.)
PIN 18- BROWN.............................HOTENABLE
PIN 20- BLACK...................117VACHOT(Power)
PIN 21- GREEN........................EARTHGROUND
1
2
3
4
5
6
7
8
9
AMP 172340-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
BLK-15*2(KEY)
*
*
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
5
www.ictgroup.com.tw
6
www.ictgroup.com.tw
WEL-RM012
PIN 1- YELLOW...............NEUTRAL INHIBIT+
PIN 2- RED.......................NEUTRAL INHIBIT-
PIN 3- ORANGE........................HOT ENABLE
PIN 4- BLACK...............117VAC HOT (Power)
PIN 5- GREEN..........................Earth - Ground
PIN 6- BLACK......117VAC NEUTRAL (Power)
PIN 7- BLUE...............CREDIT_RELAY (N.O.)
PIN 8- PURPLE...CREDIT_RELAY (Common)
PIN 9- Reserved
PURPLE.......CREDIT_RELAY (Common)
BLUE...................CREDIT_RELAY (N.O.)
GREEN.............................Earth - Ground
ORANGE...........................HOT ENABLE
RED..........................NEUTRAL INHIBIT-
YELLOW..................NEUARAL INHIBIT+
( Standard Pulse, ICT Protocol <RS232> / 117V AC )
2464 22 AWG 6C CABLE
1
2
3
4
5
6
7
8
9
AMP 172340-1
AC 117V
WEL-RM012
AC
202
202
202
202
202
202
Figure.3 Figure.4
To Next Page
