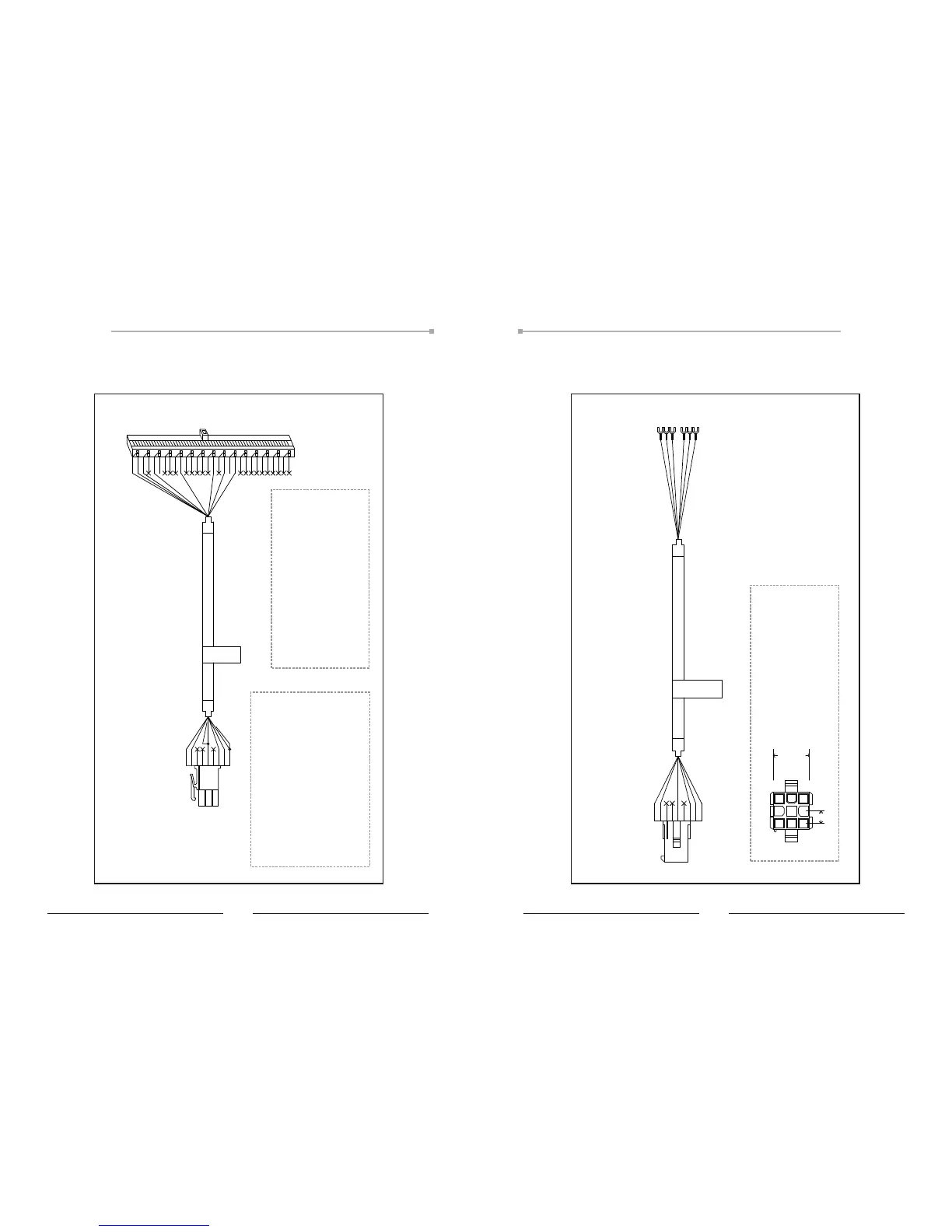

WEL-RM007
PIN 1- PURPLE.......CREDIT_RELAY (Common)
PIN 2- RED..................................12VDC (Power)
PIN 3- WHITE........................................ENABLE-
PIN 5- YELLOW....................................INHIBIT+
PIN 10- BROWN...............................GND (Power)
PIN 16- BLUE...................CREDIT_RELAY (N.O.)
PIN 18- BLACK......................................ENABLE+
PIN 20- GREEN.......................................INHIBIT-
( Standard Pulse, ICT Protocol <RS232> / 12V DC )
2464 22 AWG 8C CABLE
WEL-RM007
DC +12V
1
2
3
4
5
6
7
8
9
AMP 172340-1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
BLK-15*2(KEY)
*
*
PIN 1- YELLOW.......................................INHIBIT+
PIN 2- GREEN..........................................INHIBIT-
PIN 3- Reserved
PIN 4- Reserved
PIN 5- RED...................................12V DC (Power)
PIN 5 Dotted- BLACK..................12V DC (Power)
PIN 6- Reserved
PIN 7- BLUE......................CREDIT_RELAY (N.O.)
PIN 8- PURPLE..........CREDIT_RELAY (Common)
PIN 9- BROWN..................................GND (Power)
PIN 9 Dotted- WHITE.......................GND (Power)
( Standard Pulse, ICT Protocol <RS232> / 12V DC)
CU-R961-1
2464 22 AWG 6C CABLE
DC 12V
#CU-R961-1
202
202
202
202
1
2
3
4
5
6
7
8
9
AMP 172332-1
202
202
PIN 1- YELLOW...........................INHIBIT+
PIN 2- GREEN..............................INHIBIT-
PIN 5- RED...............+12VDC(POWER-IN)
PIN 7- BLUE...............CREDIT-RELAY-NO
PIN 8- PURPLE.......CREDIT-RELAY-COM
PIN 9- ORANGE.............GND(POWER-IN)
K
+AMP
.551 inch or 14mm
.165inch or 4.2mm
1 2 3
4 5 6
7 8 9
AMP 172332-1 BACK VIEW
A7 / V7 A7 / V7
Bill Acceptor Bill Acceptor
7
www.ictgroup.com.tw
8
www.ictgroup.com.tw
Figure.5 Figure.6
