Icy Box IB-564SAS-12G User Manual

HDD installation
1. If the door is locked, use the key to unlock. Squeeze the latch to release the door handle,
then pull the door handle open.
2. Insert the HDD (printed side up) into the enclosure gently and close the door.
Lock the door if needed.
Hardware installation
1. Turn OFF the PC and any other connected peripheral devices.
2. Unplug the power cable from the back of the PC and remove the cover of your PC.
3. Remove the panels from the available 3x 5.25" bay.
4. Insert the HDD enclosure into the bay and fix it with 4 screws on each side.
5. Connect the Mini SAS HD port of the enclosure to the PCI/ PCIe Mini SAS HD card with a Mini
SAS HD cable.
6. Then connect the SATA Power ports.
7. Replace the PC cover and reconnect the power cable for the PC.

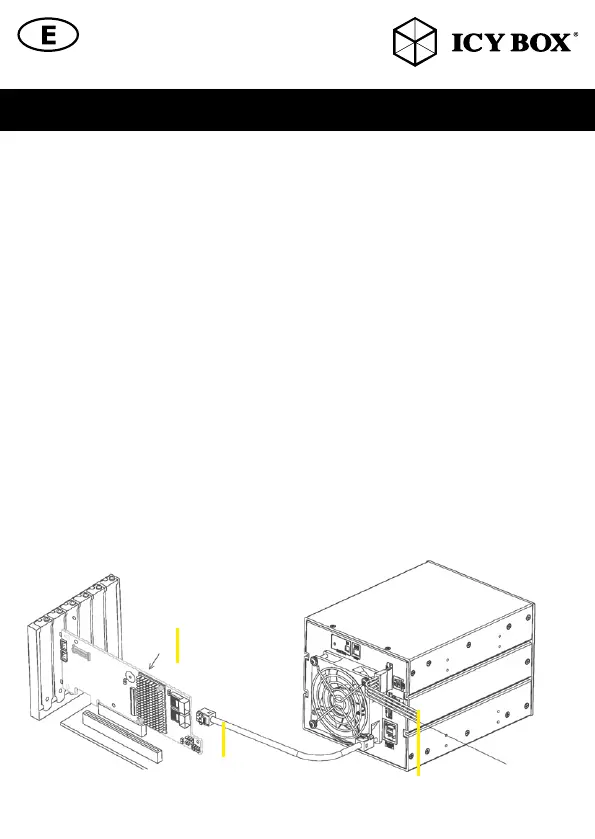

Manual IB-564SAS-12G
MiniSAS HD cable
SATA Power cable
1. PCI/PCIE MiniSAS
card (SFF-8643interface)
Manual IB-564SAS-12G
