How to use
1. Independent power switch
Press the power switch button for 3 seconds to switch on/ off power of the bays
Power on/ off for all HDDs
Switch on all bays: Press bay 1 or bay 2 power switch for 3 times.
Switch off all bays: Press bay 3 or bay 4 power switch for 3 times.
3. LED indicator
Power indicator: Blue LED is on steady
Activity indicator: Blue LED is blinking
Fan failure: Orange LED is blinking
Temperature: Red LED is blinking
4. Fan failure alarm
When the fan fails, the buzzer is on and orange LED is blinking. Press any power switch button to
stop the buzzer. Orange LED will be off when the function is back to normal.
5. Temperature alarm
When the temperature is above the setting, the buzzer is on and red LED is blinking. Press any pow-
er switch button to stop the buzzer. Red LED will be off when the temperature is below the setting.
6. HDD activity indicator switch
OFF: Turn off the activity indicator
ON: Turn on the activity indicator
7. Fan speed switch
AUTO: When the internal temperature reaches 30 °C, the fan starts running. Fan
speed will be adjusted automatically by the temperature changes. Fan spins at the
highest speed when the temperature reaches 40 °C.
HIGH: Fan spins at the highest speed when the temperature reaches 30 °C.

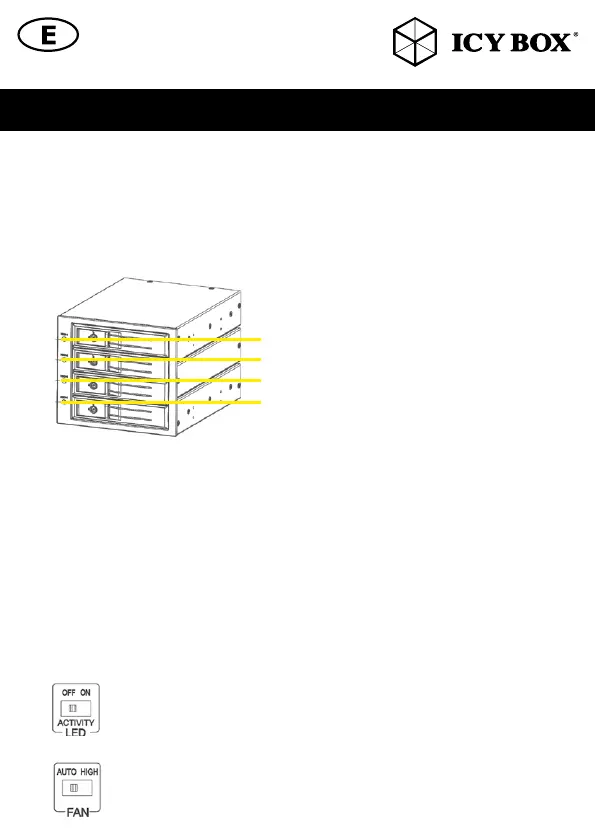

Bay 1
Bay 2
Bay 3
Bay 4
