Icy Box IB-DK2246AC User Manual

Manual IB-DK2246AC
Package content
1x IB-DK2246AC, 1x external power supply, 1x power cable (EU),
1x USB Type-C
®
to Type-C
®
/ Type-A (adapter) cable, 1x VESA mount (75x75,
100x100), 6x screw, 1x manual

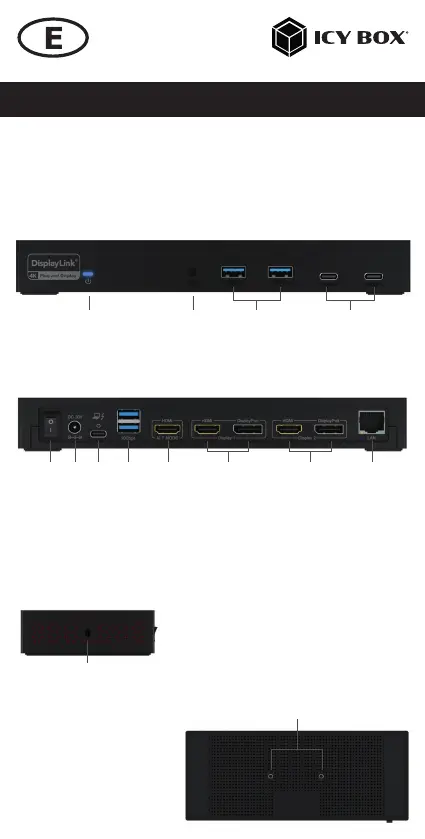

View
1. LED for power (blue)
2. Headset combo jack
3. 2x USB 3.2 Gen 2 Type-A data interface with up to 10 Gbit/s
4. 2x USB 3.2 Gen 2 Type-C
®
data interface with up to 10 Gbit/s
5. ON/OFF switch
6. Power jack, DC 20 V/6.5 A, 130 W
7. USB 3.2 Gen 2 Type-C
®
host interface, Power Delivery up to 100 W
8. 2x USB 3.2 Gen 2 Type-A data interface with up to 10 Gbit/s
9. DP Alt Mode HDMI
®
interface
10. DisplayLink
®
HDMI
®
and DisplayPort
™
1 interfaces
11 . DisplayLink
®
HDMI
®
and DisplayPort
™
2 interfaces
12. RJ45 Gigabit Ethernet interface
13. Kensington Lock support
14. Screw holes for VESA plate
1
5 6 7 8 9
13
2
12
11
14
10
43

Icy Box IB-DK2246AC Specifications

General

Brand	Icy Box
Model	IB-DK2246AC
Category	Docking Station
Language	English
