IDEC GT3A Series

GT3D Series
Timers
815
USA: 800-262-IDEC Canada: 888-317-IDEC
Switches & Pilot Lights Display Lights Relays & Sockets Timers Terminal Blocks
Circuit Breakers

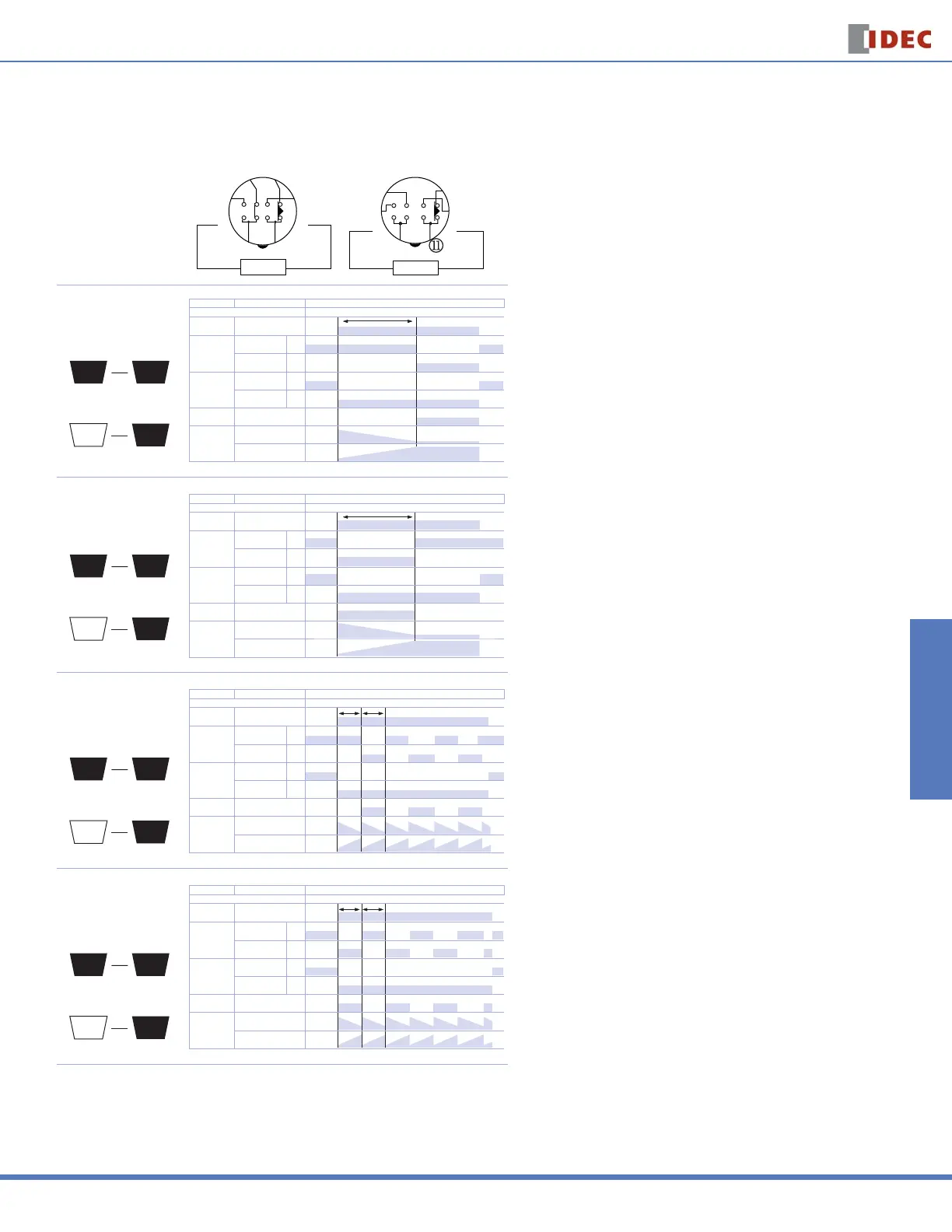

Timing Diagrams/Schematics
GT3D-2 Timing Diagrams
Delayed SPDT + Instantaneous SPDT
Operation
Mode Selection
(+)(-)
(+)(-)
8-Pin 11-Pin
POWER POWER
j
j
k
l
m
n
o
p
q
r
s
k
l
m
n
o
p
q
ON-Delay 1
1
Time Remaining
A
1
Time Elapsed
A
Interval 1
1
Time Remaining
B
1
Time Elapsed
B
Cycle 1
(OFF fi rst)
1
Time Remaining
C
1
Time Elapsed
C
Cycle 3
(ON fi rst)
1
Time Remaining
D
1
Time Elapsed
D
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
Item Terminal Number Operation
Set Time Set Time
Power
2 - 7 (8p)
2 - 10 (11p)
Delayed
Contact
1 - 4, 5 - 8 (8p)
1 - 4, 8 - 11 (11p)
(NC)
1 - 3, 6 - 8 (8p)
1 - 3, 9 - 11 (11p)
(NO)
Instantaneous
Contact
1 - 4 (NC)
1 - 3 (NO)
Indicator OUT
Digital Time
Display
DOWN
UP
