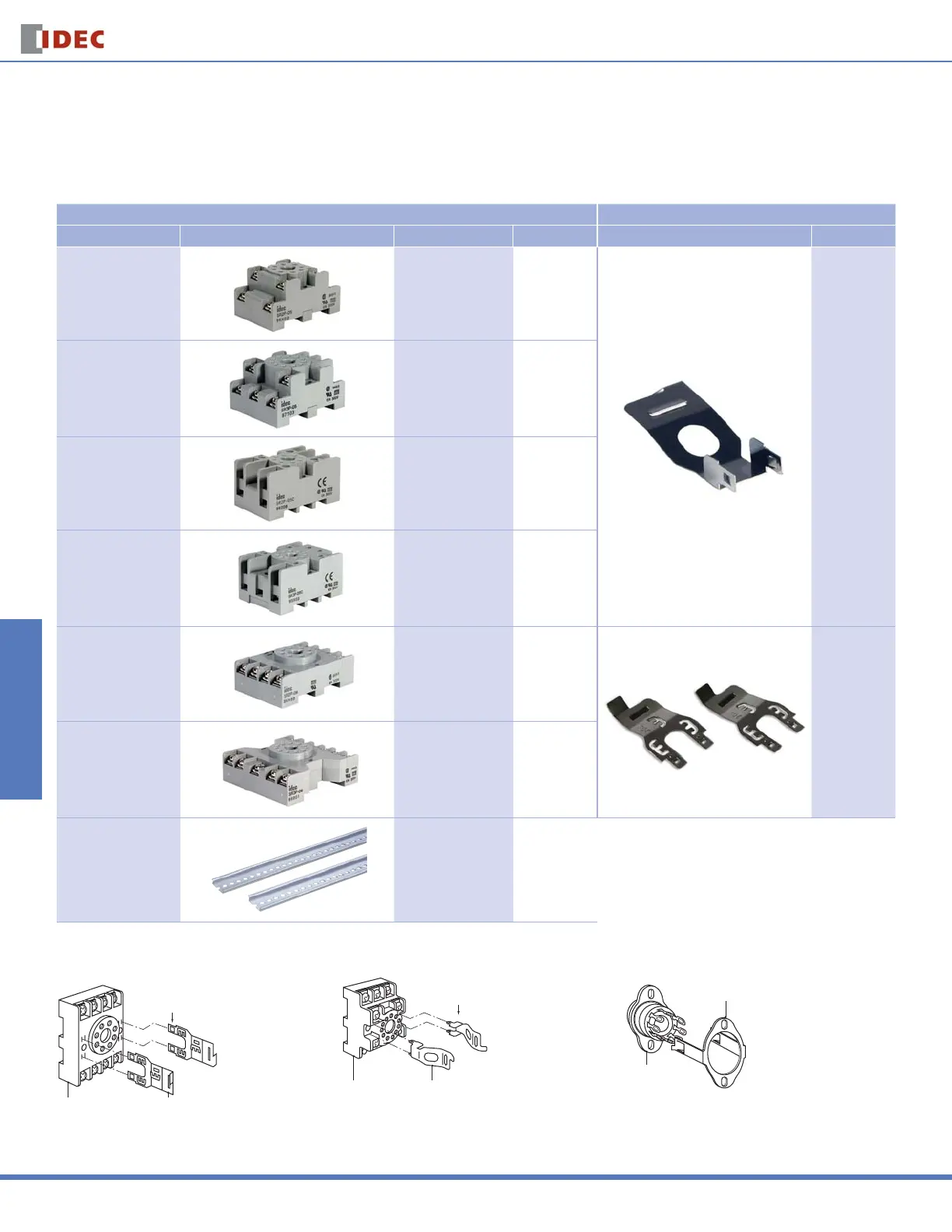

GT3 Series
Accessories
DIN Rail Mounting Accessories
DIN Rail/Surface Mount Sockets and Hold-Down Springs
DIN Rail Mount Socket Applicable Hold-Down Springs
Style Appearance Use with Timers Part No. Appearance Part No.
8-Pin Screw Terminal
(dual tier)
GT3A-1, 2, 3 (8-pin)
GT3D-1, 2, 3 (8-pin)
GT3F-1, 2 (8-pin)
GT3W (8-pin)
GT3S
SR2P-05
SFA-203
11-Pin Screw Terminal
(dual tier)
GT3A-1, 2, 3 (11-pin)
GT3A-4, 5, 6
GT3D-1, 2, 3 (11-pin)
GT3D-4, 8
GT3F-1, 2 (11-pin)
GT3W (11-pin)
SR3P-05
8-Pin Fingersafe Socket
GT3A-1, 2, 3 (8-pin)
GT3D-1, 2, 3 (8-pin)
GT3F-1, 2 (8-pin)
GT3W (8-pin)
GT3S
SR2P-05C
11-Pin Fingersafe Socket
GT3A-1, 2, 3 (11-pin)
GT3A-4, 5, 6
GT3D-1, 2, 3 (11-pin)
GT3D-4, 8
GT3F-1, 2 (11-pin)
GT3W (11-pin)
SR3P-05C
8-Pin Screw Terminal
GT3A-1, 2, 3 (8-pin)
GT3D-1, 2, 3 (8-pin)
GT3F-1, 2 (8-pin)
GT3W (8-pin)
GT3S
SR2P-06
SFA-202
11-Pin Screw Terminal
GT3A-1, 2, 3 (11-pin)
GT3A-4, 5, 6
GT3D-1, 2, 3 (11-pin)
GT3D-4, 8
GT3F-1, 2 (11-pin)
GT3W (11-pin)
SR3P-06
DIN Mounting Rail
Length 1000mm
— BNDN1000
Installation of Hold-Down Springs
DIN Rail Mount Socket
Socket SR2P-06
Hold-down Spring (sold separately)
SFA-202 (use two springs)
Insert the springs into the outer
slots with the projections
facing inside.
Socket SR2P-05
Insert the springs
into the slots.
Hold-down Spring (sold separately)
SFA-203 (use two springs)
Panel Mount Socket
8-pin Socket
SR2P-51
Hold-down Spring
SFA-402
Insert
