HS1E Series Safety Products
B1-32 www.idec.com USA: (800) 262-IDEC or (408) 747-0550, Canada: (888) 317-IDEC
B1
Safety Products

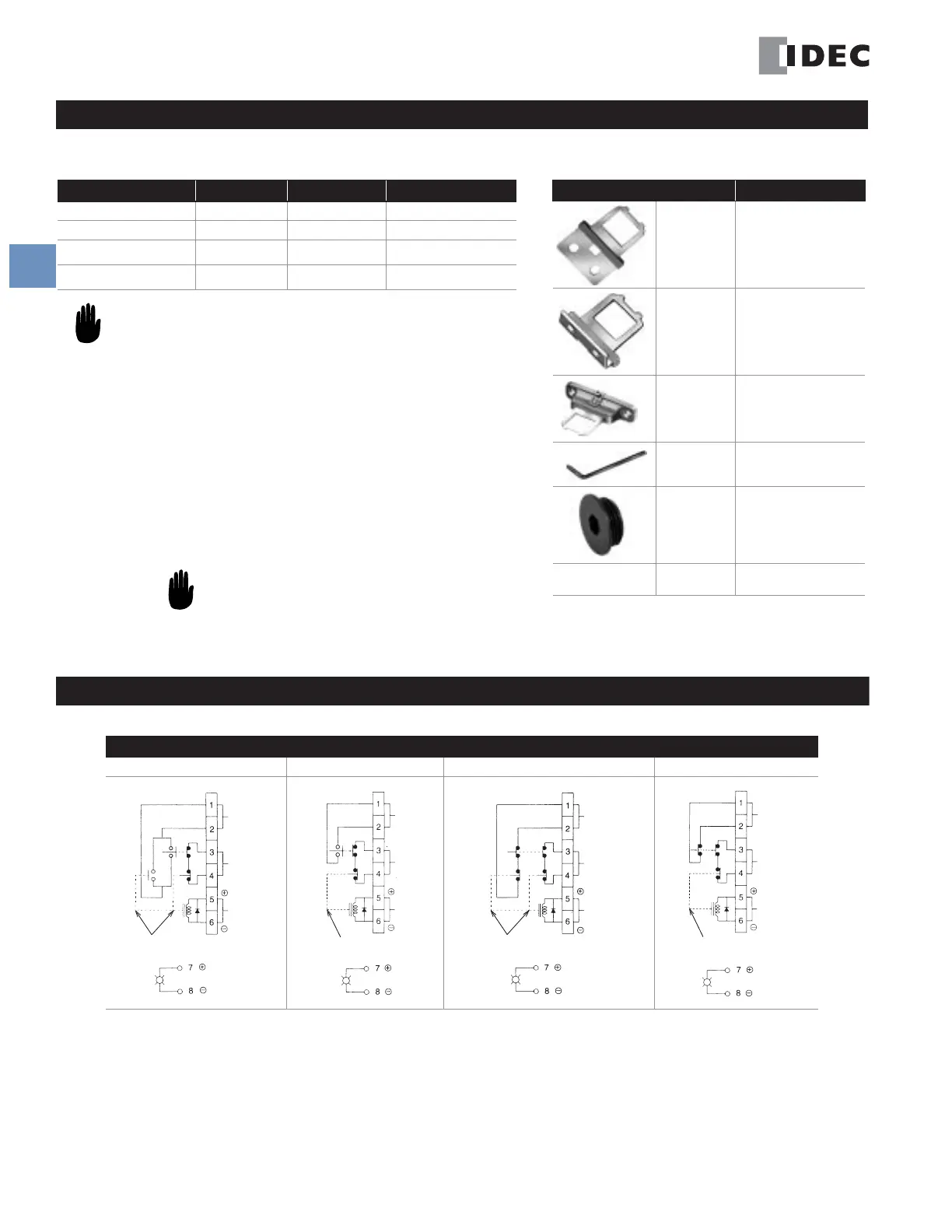

Circuit Diagrams
Circuit Diagram No. Blank Circuit Diagram No. 1 Circuit Diagram No. 2 Circuit Diagram No. 3
Part Numbers
Part Numbers: Keys, Wrench & Screwdriver
Item Part Number Description
HS9Z-A1
Straight Key
(Mainly for sliding
doors)
HS9Z-A2
L-shaped Key
(Mainly for rotating
doors)
HS9Z-A3 Adjustable Key
HS9Z-T1
Key Wrench (included
with switch)
HS9Z-P1 Conduit Opening Plug
Photo Not
Available
HS9Z-KEY1
Replacement Manual
Unlocking Key
Part Numbers: Body
Part Number Indicator Key Conduit Port
HS1E-①40R Without Without G1/2
HS1E-①44R-∗ With Without G1/2
HS1E-①40KR Without With G1/2
HS1E-①44KR-∗ With With G1/2
1. Special key wrench (HS9Z-T1) for removing the cover and manual unlocking
is included with the switch.
2. Specify the circuit diagram No. in place of ①.
3. Specify the indicator color (R or G) in place of *.
4. Order the key separately (not included with the switch).
Circuit Diagram No.
Main Circuit Auxiliary Circuit
Blank: 1NC+1NC 1NO/1NO
1: 1NC+1NC 1NO
2: 1NC+1NC 1NC+1NC
3: 1NC+1NC 1NC
1. “/” indicates paralleled contacts.
2. “+” indicates series contacts.
Circuit Diagrams
Auxillary Circuit
Main Circuit
Soleoid Power
Microswitch is linked to
solenoid mechanically
Auxillary Circuit
Main Circuit
Soleoid Power
Microswitch is linked to
solenoid mechanically
Auxillary Circuit
Main Circuit
Soleoid Power
Microswitch is linked to
solenoid mechanically
Auxillary Circuit
Main Circuit
Soleoid Power
Microswitch is linked to
solenoid mechanically
