3

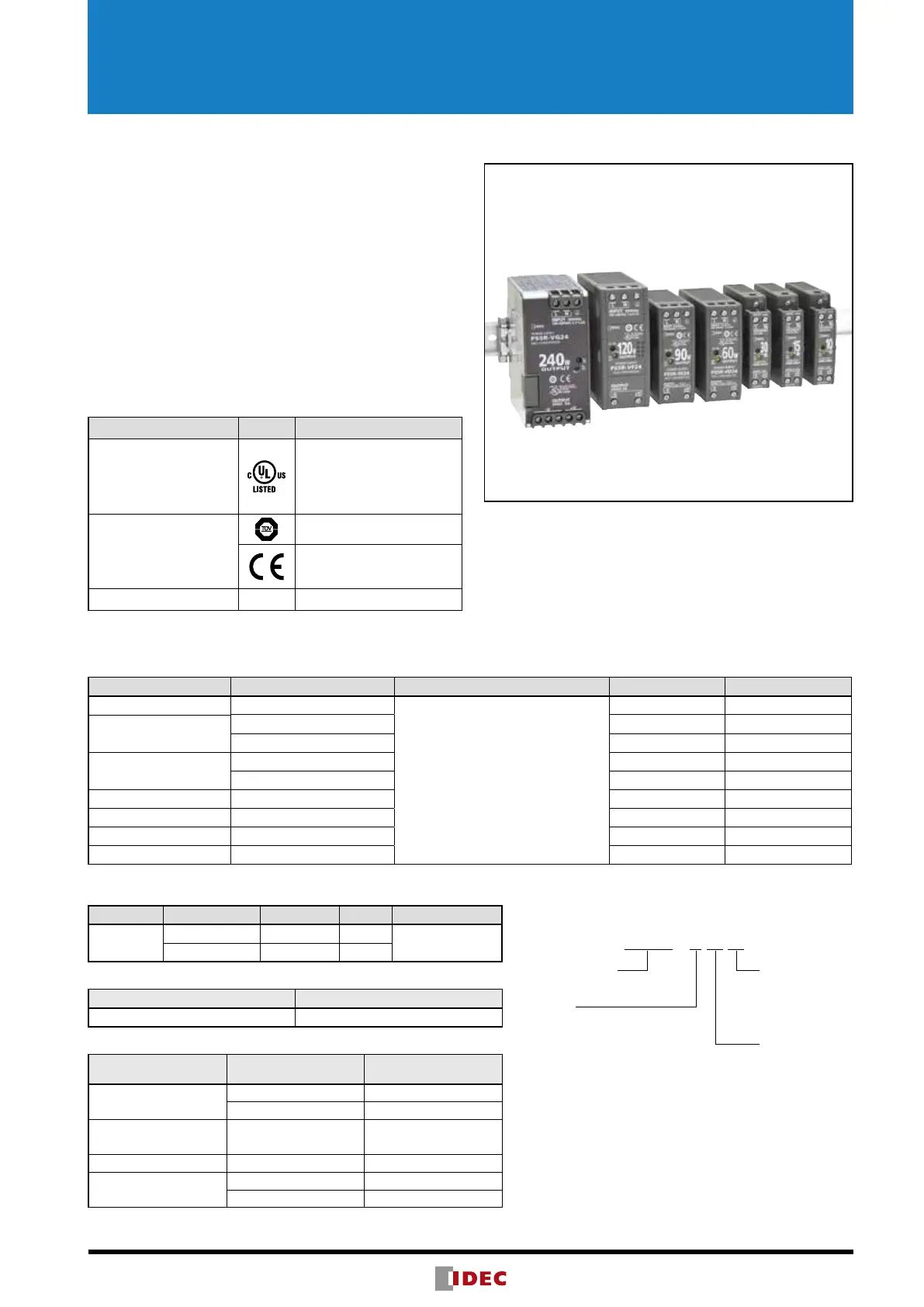

Space-saving DIN-rail switching power supplies
PS5R-V Switching Power Supplies
•Spring-up terminal accepts wiring of ring terminals.
•Slim size
Width: 22.5mm (10W/15W/30W), 36mm (60W/90W),
46mm (120W), 60mm (240W)
•Can be installed in six mounting directions.
•Optional mounting bracket is available for panel mounting.
•CE marked (LVD, EMCD, RoHS)
•UL (UL508, UL1310 Class 2*
1
, ANSI/ISA 12.12.01)
c-UL (CSA C22.2 No. 107.1, 213, 223*
1
)
TÜV SÜD (EN60950-1, EN50178)
•EN61204-3 (Electromagnetic compatibility Class B)
•Meets SEMI F47 Sag Immunity (208V AC input)
•RoHS compliant
•Five-year warranty
Applicable Standards Mark File No. or Organization
UL508, UL1310*
1
ANSI/ISA 12.12.01
CSA C22.2 No.107.1
CSA C22.2 No.213
CSA C22.2 No.223*
1
UL/c-UL Listed
File No. E177168
File No. E467154
EN60950-1
EN50178
EN61204-3
EN50581
TÜV SÜD*
2
EU Low Voltage Directive
EMC Directive
RoHS Directive
SEMI F47 — EPRI
*1: PS5R-VB/VC/VD/VE only
*2: EN60950-1, EN50178 only
PS5R-V
Package Quantity: 1
Output Capacity Part No. Input Voltage Output Voltage Output Current
10W PS5R-VB05
100 to 240V AC
(Voltage range: 85 to 264V AC /
100 to 370V DC)
5V 2.0A
15W
PS5R-VB12 12V 1.3A
PS5R-VB24 24V 0.65A
30W
PS5R-VC12 12V 2.5A
PS5R-VC24 24V 1.3A
60W PS5R-VD24 24V 2.5A
90W PS5R-VE24 24V 3.75A
120W PS5R-VF24 24V 5.0A
240W PS5R-VG24 24V 10.0A
DIN Rail (35mm-wide)
Length Part No. Material Weight Package Quantity
1000mm
BAA1000PN10 Aluminum 200g
10
BAP1000PN10 Steel 320g
End Clip
Part No. Package Quantity
BNL6PN10 10
Panel Mounting Bracket*
3
Applicable Switching
Power Supply
Ordering No. Remarks
PS5R-VB
PS5R-VC
PS9Z-5R1B —
PS9Z-5R2B For side mounting
PS5R-VD
PS5R-VE
PS9Z-5R1C —
PS5R-VF PS9Z-5R1E —
PS5R-VG
PS9Z-6R1F —
PS9Z-6R2F For side mounting
*3: Used for direct panel mounting.
*4: PS5R-VB only
*5: PS5R-VB/VC only
Part No. Development
PS5R - V
Switching Power
Supply
Output Voltage
Code
05: 5V*
4
12: 12V*
5
24: 24V
Output Capacity
Code
B: 10W/15W
C: 30W
D: 60W
E: 90W
F: 120W
G: 240W
Slim Line
Use for interpreting part numbers.
