5
Outer tube
Sleeve φ25
Sleeve φ24
Select the sleeve
※ Insert the whole of sleeve.
Slit side is upper
Sleeve φ24 or φ25 or φ25.4
Adjust the direction of
the sleeve hole to the bolt.
Be carefule that if the sleeve is wrong mounting,
the gear case is broken.
Sleeve
Gear case
Insert the sleeve into the gear case For outer tube diameter φ24,φ25,φ25.4

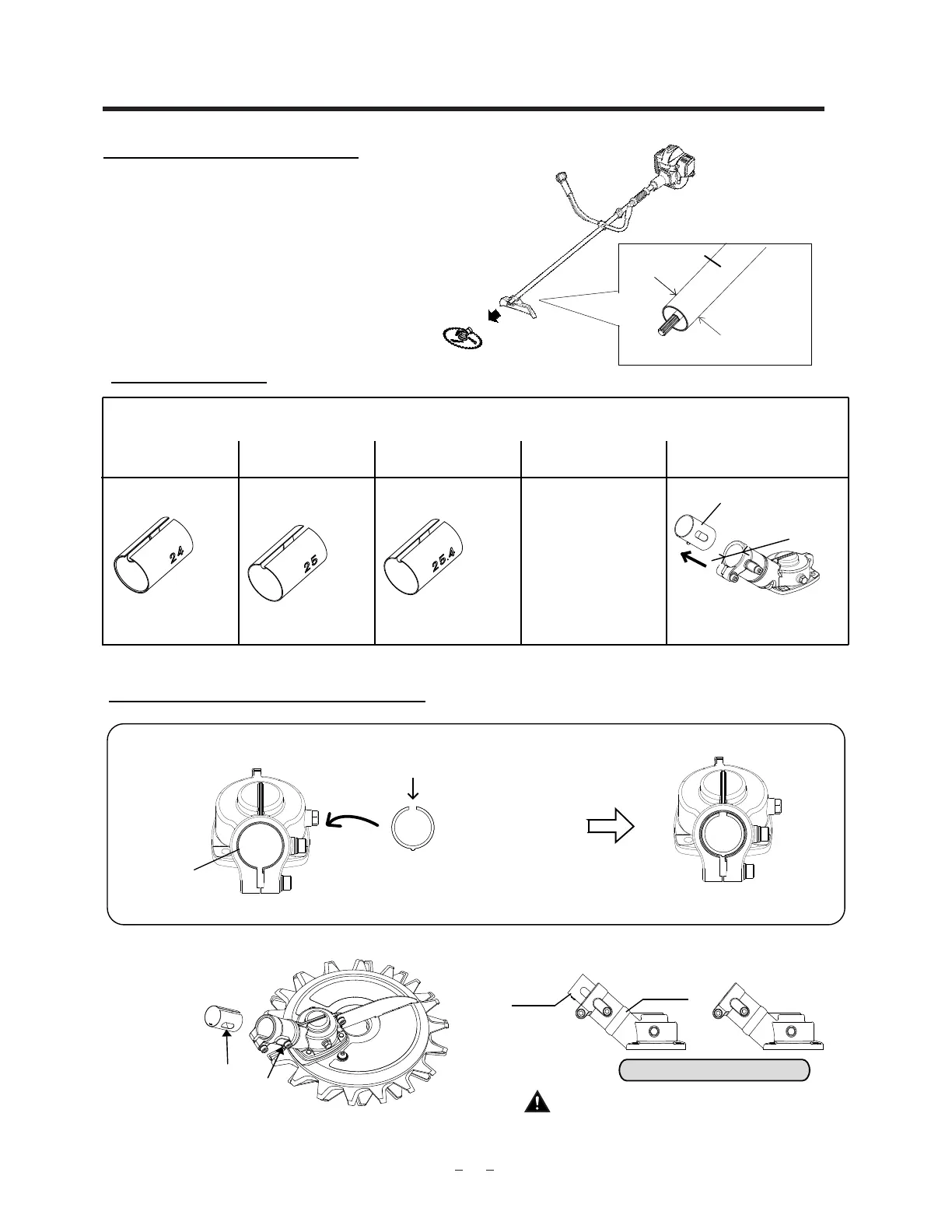

MOUNTING
Check the outer tube diameter
① Remove the exsting gear case.
② Check the outer tube diameter.
Check the outer tube diameter.
Sleeve φ25.4
Outer tube diameter
φ24ｍｍ
φ25ｍｍ
φ25.4ｍｍ
φ26ｍｍ
No!
OK!
φ28ｍｍ
Remain
sleeve φ26
Insert
Sleeve φ26
Sleeve φ26 is already
in the gear case
Remove sleeve φ26
from gear case
Complete
φ28
To Next Page
