Tighten the bolt by the
allen wrench for 4mm.
※After installing, ensure that make a trial run.
Make sure that there is no abnormal noise and no shaking of Power Rotary Scissors.
⇔
Adjust the position of the handle
and the shoulder harness to the best
position for weight balance.
※Insert Power Rotary Scissors all the way regardless the hole
position of Fit screw on the outer tube.

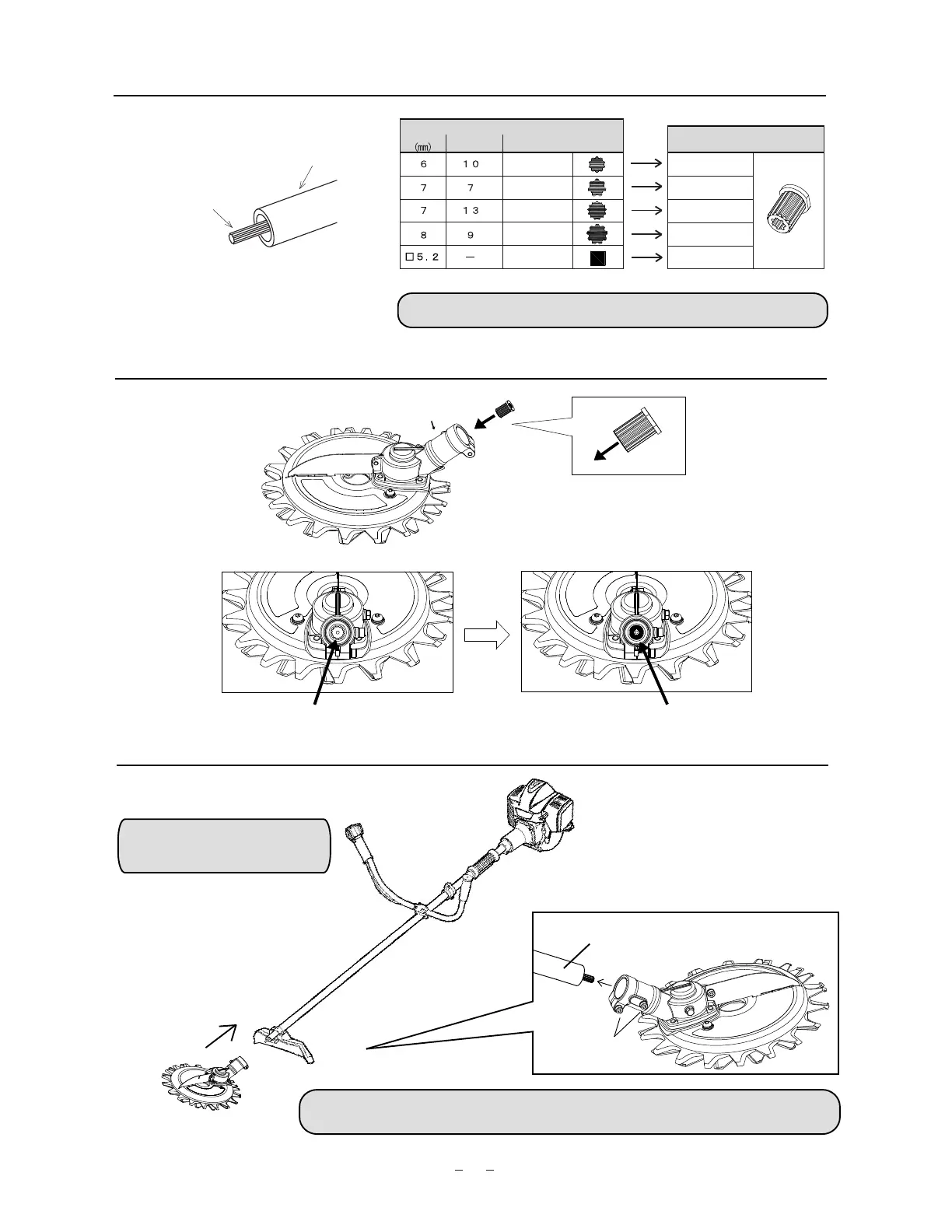

Install the Power Rotary Scissors
Select the adapter
Mount the slected adapter to the unit
Outer tube
Drive shuft
※Check whether the shaft fit the hole of adapter.
※Insert the adapter into the serration hole
of gear case by the longnose pliers.
Fitted with the adapter
Adapter 6-10
Adapter 7-7
Adapter 7-13
Adapter 8-9
Adapter ＳＱ
Adapter
Serration hole of gear case
Gear case
Adapter
Drive shuft shape
Diameter
No. of teeth
Spline
Spline
Spline
Serration
Square
Teeth shape
