IDECH ASK-VW23 - Mounting Procedure; Sleeve Selection and Installation; Gear Case Sleeve Insertion

４
Check the outer tube diameter.
Outer tube
Unnecessary for sleeve
Sleeve φ25
Sleeve φ24
Select the sleeve
※ Insert the whole of sleeve.
Slit is upper
Sleeve
Gear case
Adjust the direction of
the sleeve hole to the bolt.
○
×
Be carefule that if the sleeve is wrong mounting,
the gear case is broken.
Sleeve
Gear case
Insert the sleeve into the gear case

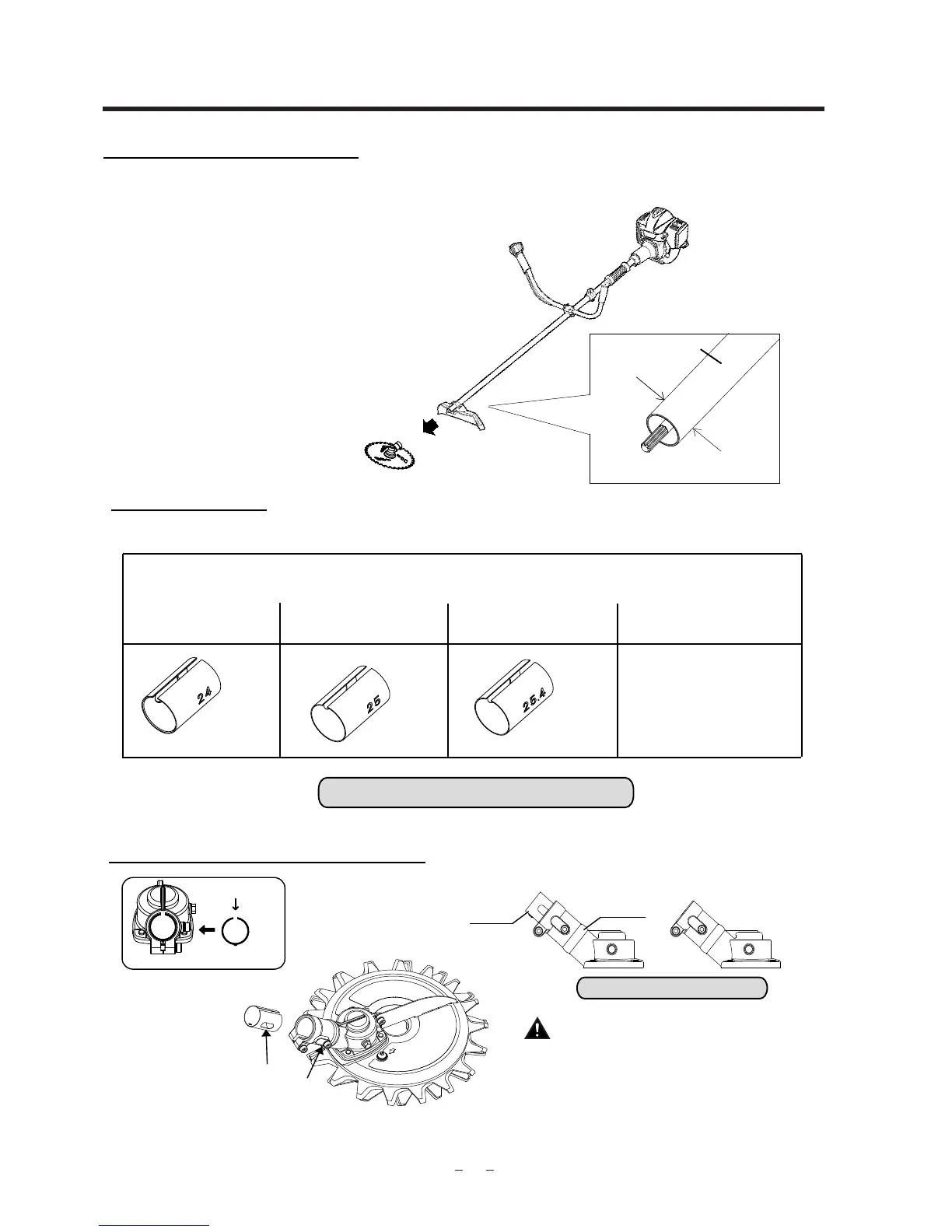

MOUNTING
Check the outer tube diameter
① Remove the exsting gear case.
② Check the outer tube diameter.
In case of φ26, sleeve is Unnecessary.
Check the outer tube diameter.
Sleeve φ25.4
Outer tube diameter
φ24ｍｍ
φ25ｍｍ
φ25.4ｍｍ
φ26ｍｍ
