MAINTENANCE
Lower Blade
Lower Blade
1. Clean the blades and bottom disc with a brush, to remove grass or dirt stuck to them.
See below for details
.
2. Wipe the blades and bottom disc and dry them. Then,
wipe them gently with an oily cloth.
To install the blade, first position the blade holes on fixing
pins, then turn the blade
• Take care not to install the blade upside down.
• Make sure all the fixing pins are in place when the
blade is installed.

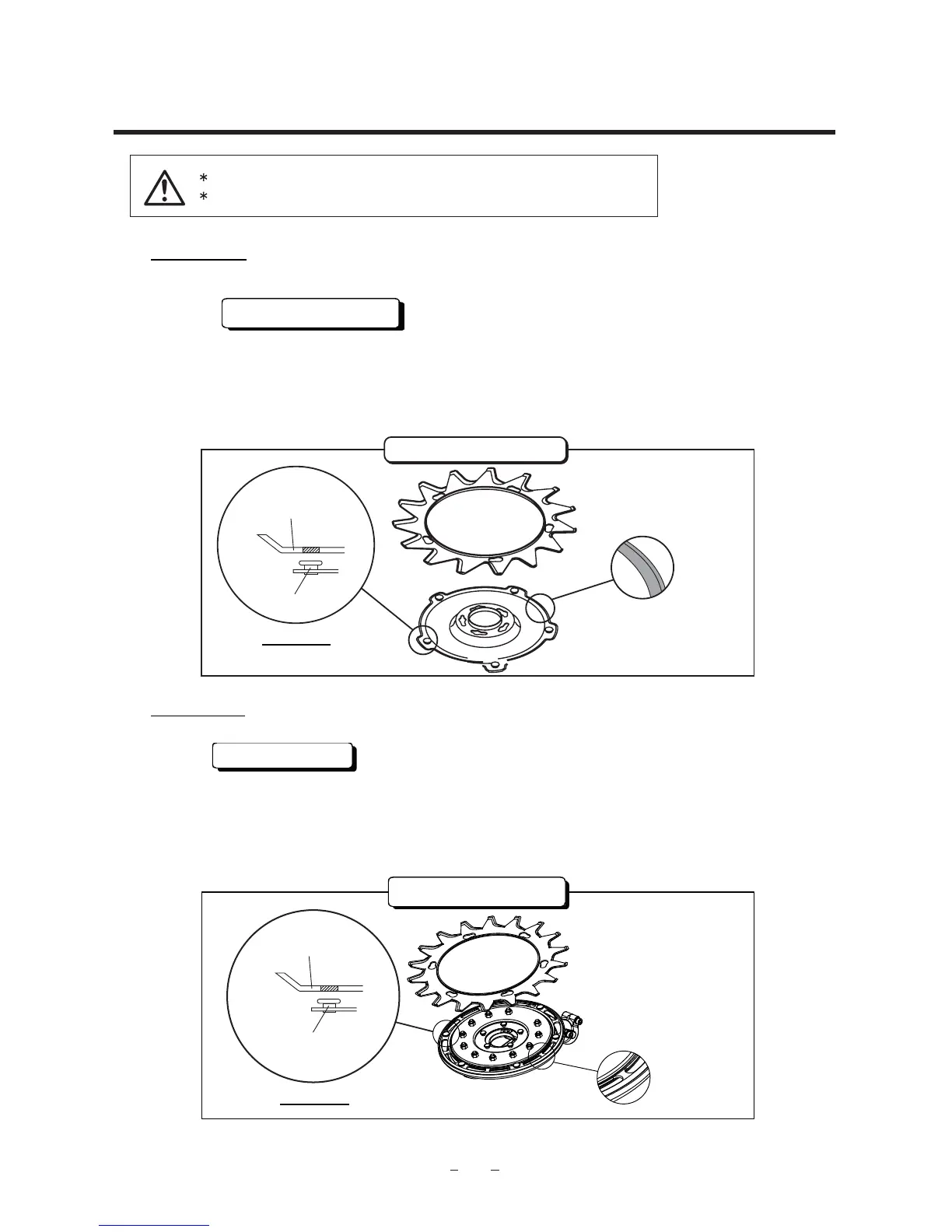

Maintenance points
Fixing pin
Maintenance points
Contact face of bottom disc
and blade
counterclockwise.
Upper Blade
1. Clean the blades and bottom disc with a brush, to
remove grass or dirt stuck to them.
See below for more details
2. Wipe the blades and bottom disc , and dry them. Then, wipe them gently with an oily cloth.
3. Mount the blade by aligning the blade holes and fixing pins, then by turning the blade
counterclockwise.
•
Take care not to install the blade upside down.
• Make sure all the fixing pins are in place when the blade is installed.
Maintenance points
Maintenance points
Contact face of upper
and lower blade
Side view
Upper Blade
Blade Fixing pin
Side view
Make sure the engine is stopped before replacing the blades.
Wear safety glass and gloves to handle the blades.
