Page 7 of 12 0901082 Rev: D (08/08)
RINSE OPERATION
The rinse pump will operate whenever the rinse power
signal is applied to the circuit board, whether directly
from the dishwasher, or by using a pressure switch. A
rinse delay feature and rinse limit feature maximize the
operating capabilities of the rinse pump.
A prime button, located on the front cover, will allow the
rinse pump to run at full speed, regardless of the rinse
potentiometer setting. Main power must be applied to
the system to prime the pump, a signal is not necessary.

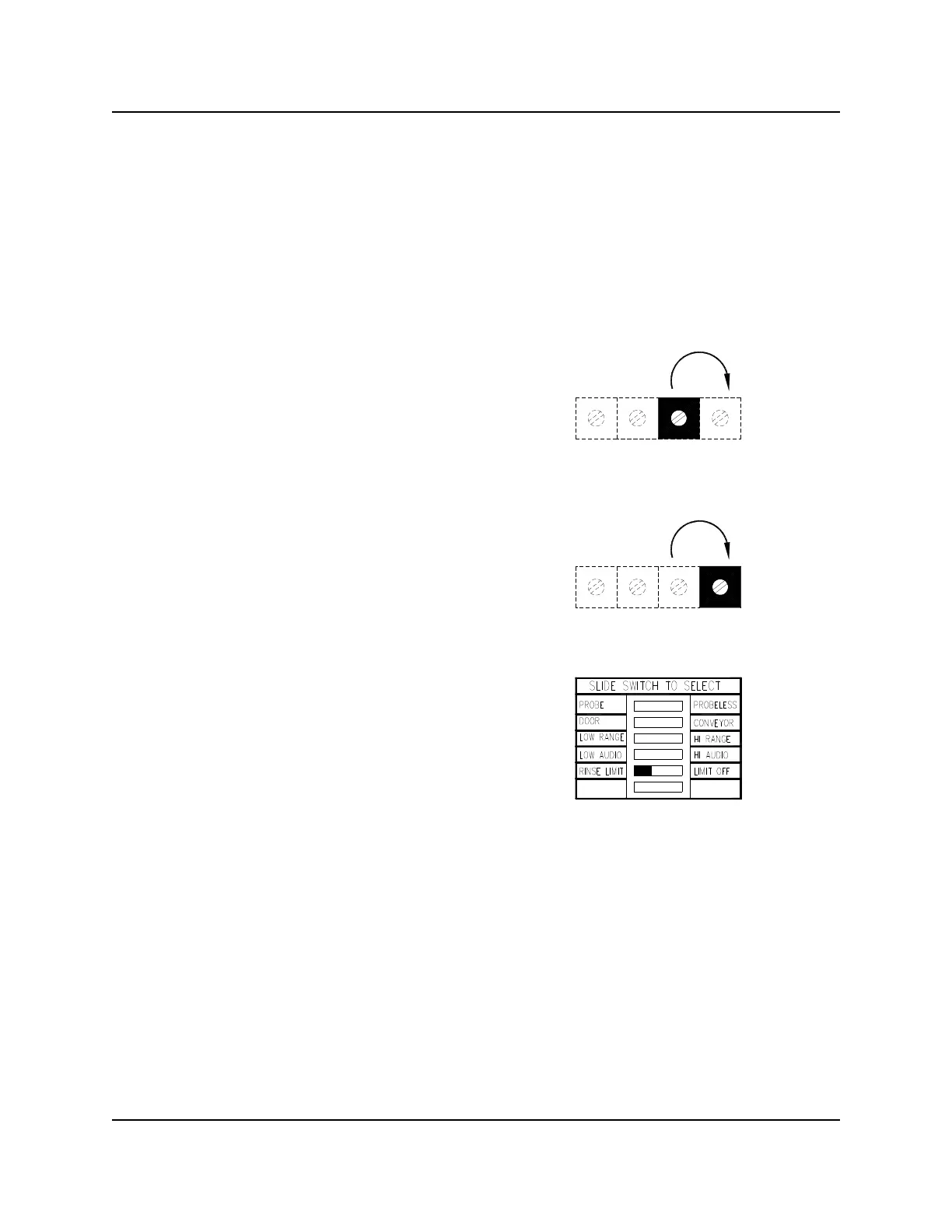

RINSE SPEED SETTING
(1) Turn the rinse potentiometer clockwise to increase
speed of the rinse pump
(2) Adjust as needed to achieve the best sheeting
action.
RINSE DELAY SETTING
This feature delays the operation of the rinse pump for a
programmed time once the rinse power signal is
received. This function is typically used to conserve
rinse agent injection on door-type dishwashers (using
with conveyor machines is not recommended). The
rinse delay range is 0 - 14 seconds.
(1) Turn the rinse delay potentiometer clockwise to
increase.
(2) Turning the setting to full minimum shuts off this
feature.
RINSE LIMIT SETTING
This feature will stop the rinse pump after 30 seconds of
continuous operation, conserving rinse agent on
dishmachines that fill through the rinse valve.
Slide switch to “rinse limit” to activate.
SLIDE LEFT TO ACTIVATE
CLOCKWISE
TO INCREASE
RINSE
SPEED
CLOCKWISE
TO INCREASE
RINSE
DELAY
