6.3. Installation
Decide where to mount your EX-345RC detector, the mounting height for Normal Mode
should be 1.2m - 2.4m and for Pet Alley Mode should be 0.6m – 1.2m.

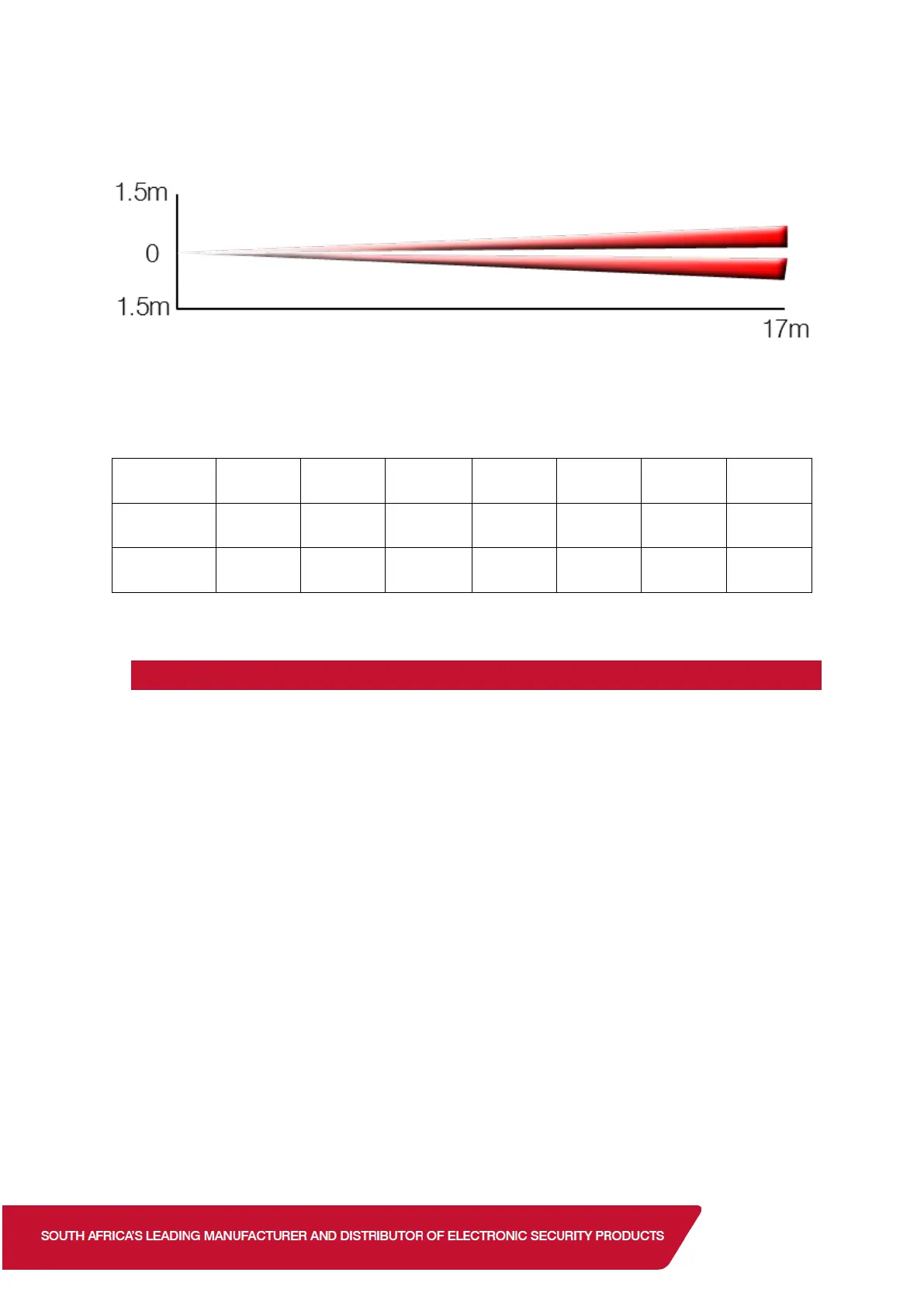

Set the detector to either Long Range or Wide Angle and set the PCB for Normal Mode
or Pet Alley Mode as desired.
Make sure the Walk Test jumper is ON to allow for testing.
Choose the Pulse Count you require by using the Pulse Count jumper (seen in the
Hardware section.)
Do a thorough Walk Test. Walk in the areas that require detection and make sure the
LED turns on to indicate detection. Then walk in the areas that do not require detection
and make sure the LED does not turn on.
After completing your Walk Test take the Walk Test jumper off to exit Test Mode.
