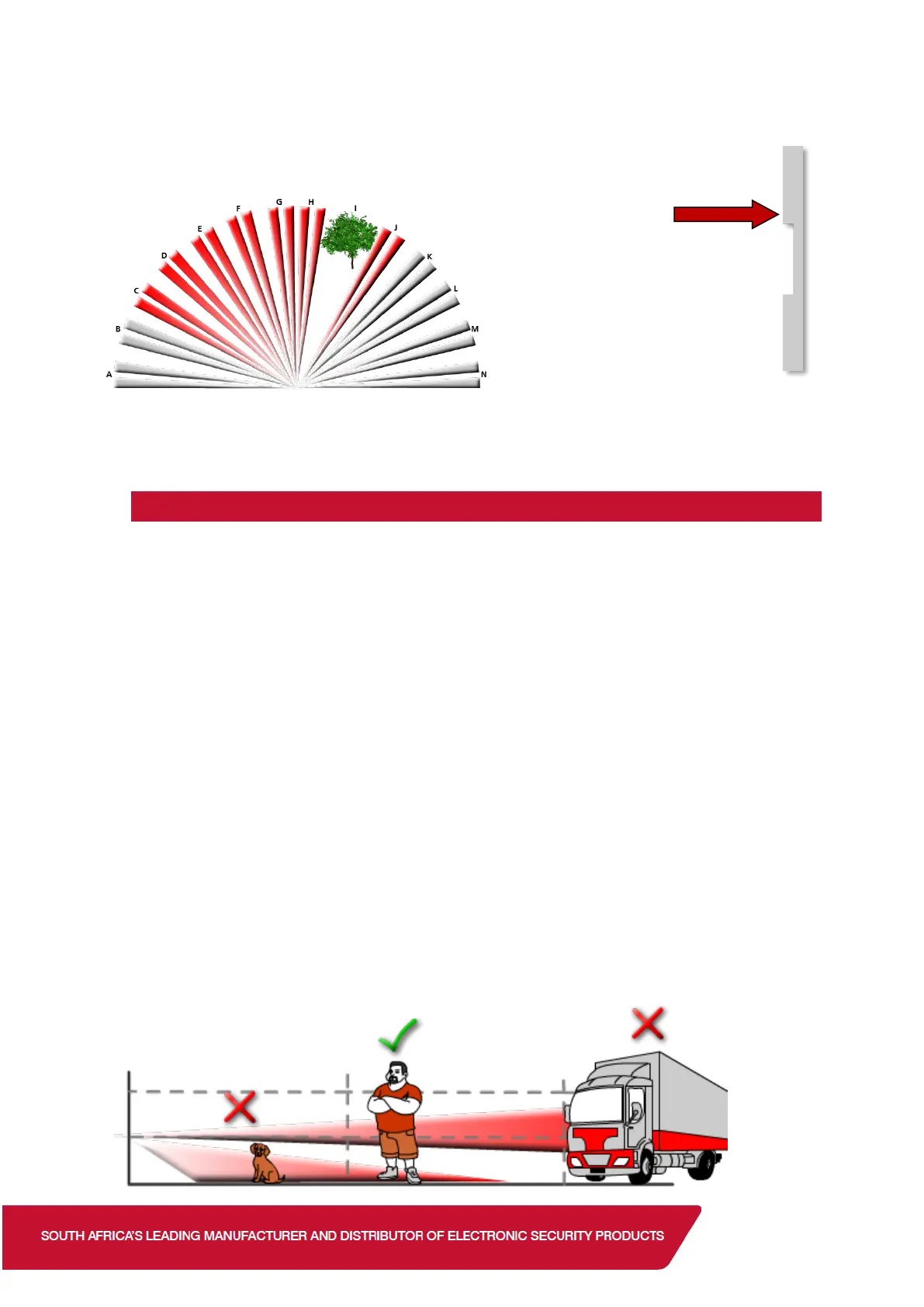

4. Place the strip in the I zone of the lens, and replace the lens and lens holder back
into the cover.
This will now mask the I zone, preventing the tree from causing any alarms.
8.4. Installation
Decide where to mount your VX-Infinity detector, mounting height must be 0.8m –
1.2m.
Set the dipswitch settings (seen in the Hardware section) to your needs. Leave
dipswitch 1 ON to allow for the walk test.
Choose and set the detection length and area angle you require (seen in the Detection
Area section)
Mask any trouble areas that may cause false detection (seen in the Area Masking
section)
Do a thorough Walk Test with the cover on the detection. Walk in the areas that require
detection and make sure the LED turns on for 2 seconds to indicate detection. Then
walk in the areas that do not require detection and make sure the LED does not turn
on.
After completing your Walk Test turn dipswitch 1 off to exit Test Mode.
NB: Both detection areas must be blocked for detection
