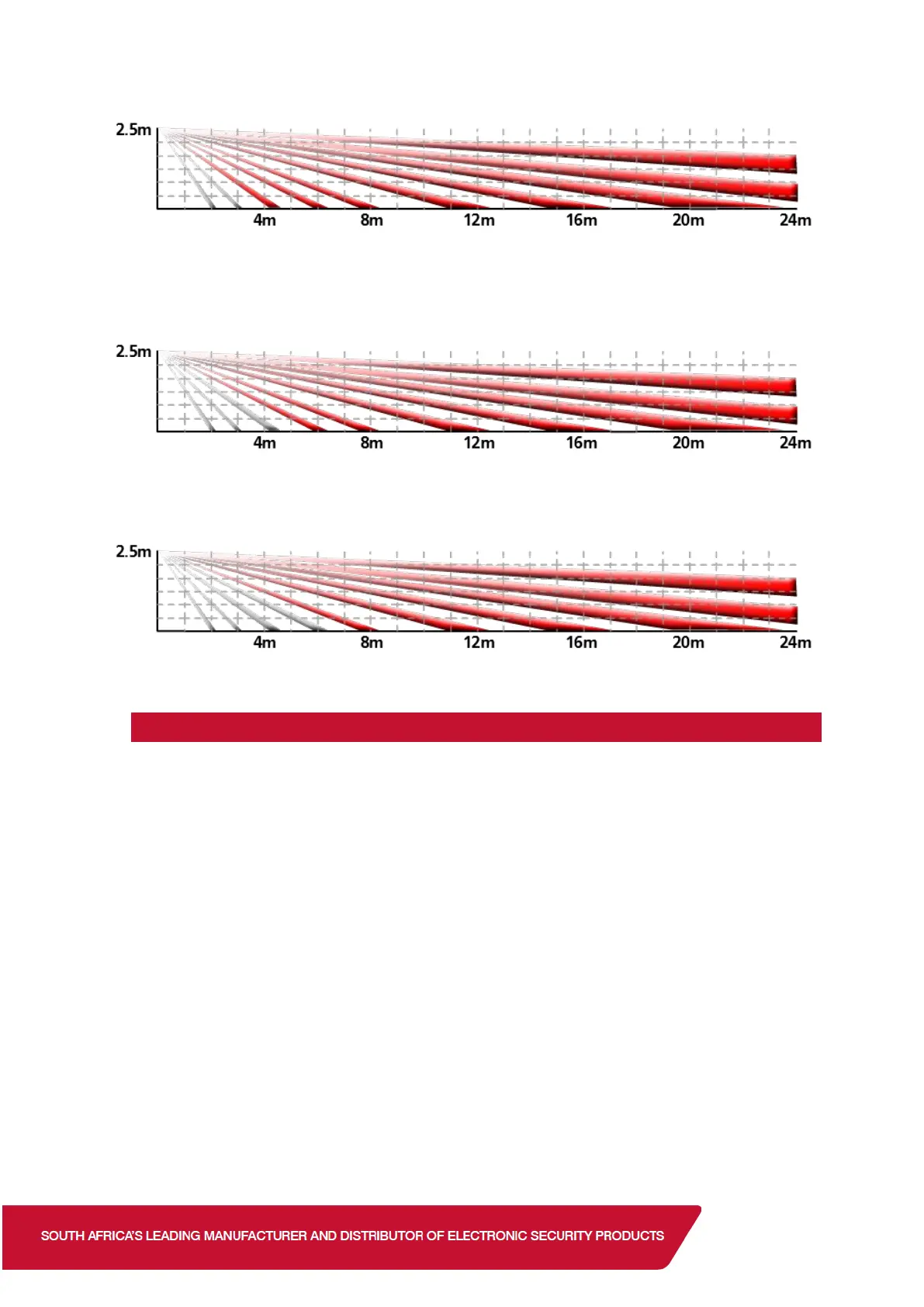

3.) Put the Top Masking Plate to position I and the Bottom Masking Plate to position
H. No detection within 4m of the detector.
4.) Put the Top Masking Plate to position G and the Bottom Masking Plate to
position H. No detection within 5m of the detector.
10.3. Installation
Decide where to mount your 862-01-HX-80NRAM; the detector must be parallel to the
ground for best performance. If the ground is not flat, adjust the vertical angle of the
mounting bracket until the detector is parallel to the ground.
The recommended mounting height is 2.5m – 3.0m.
Set the dipswitch settings (seen in the Hardware section) to your needs. Leave
dipswitch 1 ON to allow for the walk test.
Use Masking Flaps and Plates to set the detection length that you require (seen in the
Detection Area section)
Do a thorough Walk Test with the cover on the detector. Walk in the areas that require
detection and make sure the LED turns on for 2 seconds to indicate detection. Then
walk in the areas that do not require detection and make sure the LED does not turn
on.
After completing your Walk Test turn dipswitch 1 off to exit Test Mode.
