BL3x-MT-EN-08 page 25/59
Arm Length Specification of the arm mounted on the barrier; this allows
the program to automatically modify the opening and closing
curves.
If the selected length does not correspond to a standard for
the barrier selected in the "Barrier Type" parameter, the
message "Doesn't Exist" appears briefly.

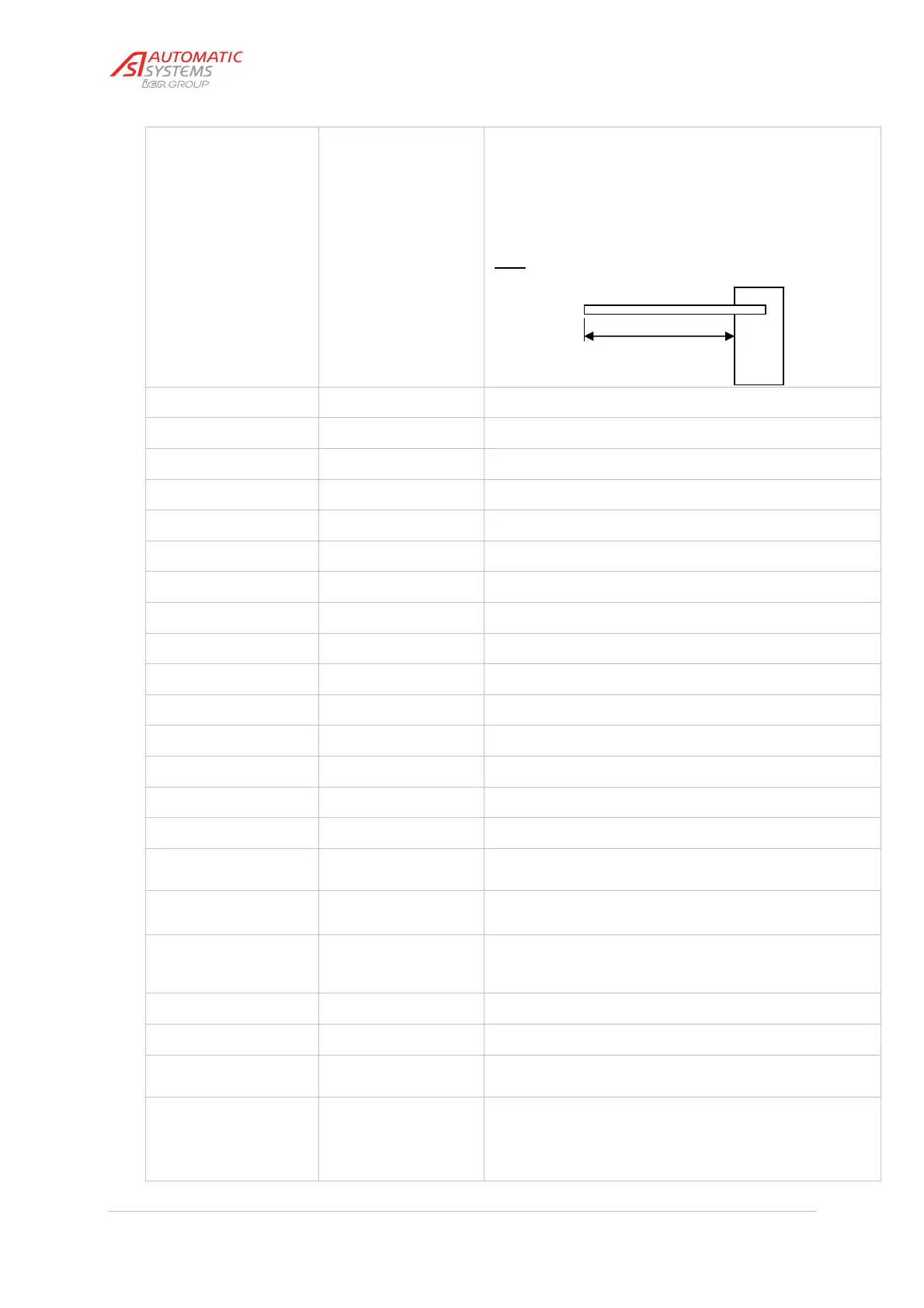

Note
: arm length = free passage = distance between the arm
tip and the barrier housing.
2m00 Select this for a BL4x or BL229 with an arm of 2 m.
2m50 Select this for a BL4x or BL229 with an arm of 2.5 m.
3m00 (by default) Select this for a BL4x or BL229 with an arm of 3 m.
3m50 Select this for a BL4x or BL229 with an arm of 3.5 m.
4m00 Select this for a BL4x or BL229 with an arm of 4 m.
4m50 Select this for a BL4x or BL229 with an arm of 4.5 m.
5m00 Select this for a BL4x or BL229 with an arm of 5 m.
5m50 Select this for a BL4x or BL229 with an arm of 5.5 m.
6m00 Select this for a BL4x or BL229 with an arm of 6 m.
7m00 Select this for a BL4x with an arm of 6,5 or 7 m.
8m00 Select this for a BL4x with an arm of 7,5 or 8 m.
9m00 Select this for a BL4x with an arm of 8,5 or 9 m.
10m00 Select this for a BL4x with an arm of 9,5 or 10 m.
11m00 Select this for a BL4x with an arm of 10,5 or 11 m.
12m00 Select this for a BL4x with an arm of 11,5 or 12 m.
Non-modifiable This message is displayed when the "Barrier Type"
parameter does not allow any modification of the arm length.
Incompatible
Message displayed when the selected Arm Length is
not compatible with the selected Barrier Type.
Arm Type Specification of the type of arm assembled on the barrier.
This parameter only applies to the BL Highway and is not
taken into account for other types of equipment.
Aluminium (default) Aluminium arm.
Carbon Carbon arm.
Non-modifiable Message displayed for the equipments different than BL229
Highway.
Power Fail OP Choice(*) of mode for unlocking the obstacle during a loss of
supply voltage.
(*) Except for BL4x, which parameter is automatically set to
ON and not adjustable.
Arm len
th
