BL3x-MT-EN-08 page 6/59
2.2. Access to internal components
•

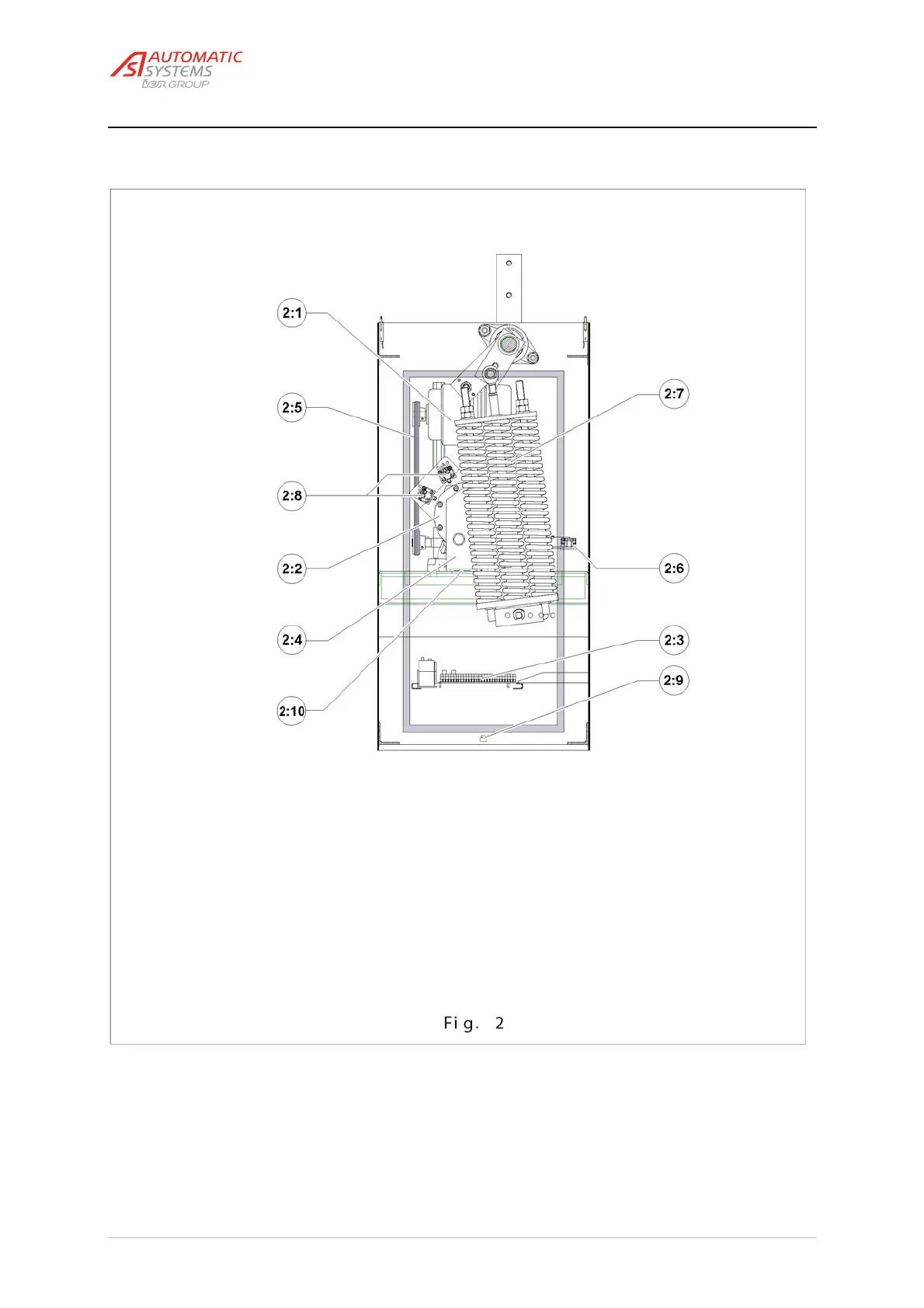

Fig. 2 shows the internal components of the rising barrier type BL32/BL33 as you see them when you
remove the side door. Fig. 3 on next page shows most elements that will be referred to in this manual.
Please consult it whenever needed.
2:1 Motor
2:2 Torque limiter
2:3 Control board
2:4 Abutment
2:5 Drive belt
2:6 Emergency crank switch
2:7 Spring assembly
2:8 Limit switches
2:9 Ground connection
2:10 Identification plate
