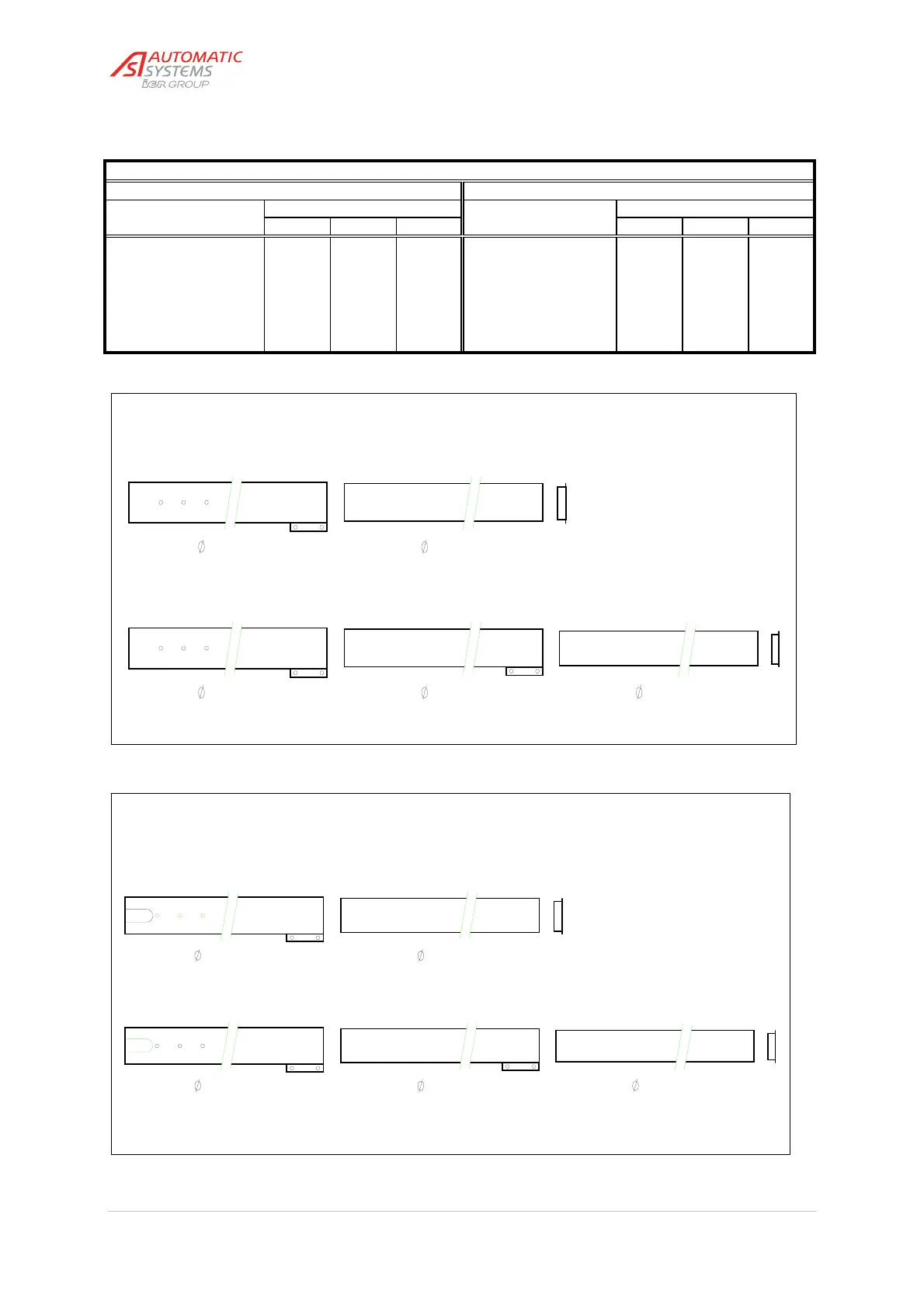

Arm segment table
Lateral arm BL32 Central arm BL32
Arm length (up to) Segment length Arm length (up to) Segment length
1 2 3 1 2 3
3.00m 2.00m 1.45m - 3.00m 2.00m 1.10m -
4.00m 2.00m 2.45m - 4.00m 2.00m 2.10m -
5.00m 2.00m 3.45m - 5.00m 2.00m 3.10m -
6.00m 2.00m 2.00m 2.65m 6.00m 2.00m 2.00m 2.30m
7.00m 2.00m 2.00m 3.65m 7.00m 2.00m 2.00m 3.30m
8.00m 3.00m 2.00m 3.30m
9.00m 3.00m 2.00m 4.30m
Central arm BL32
1st segment 2nd segment (up to 5m)
100mm
90mm
Tip
Fig. 17
1st segment
2nd segment
3rd segment (over 5m)
100mm
90mm
84mm
Tip
Lateral arm BL32
1st segment 2nd segment (up to 5m)
100mm
90mm
Tip
Left-hand type
90mm
1st segment
2nd segment
3rd segment (over 5m)
100mm 84mm
Tip
Right-hand type
Fig. 18
